1978 Piper Arrow III
| Overview | |
| 1978 Piper Arrow III - 8753 Hours Total Time Since New, Only 528 Hours SMOH by Custom Airmotive, Only 528 Hours SPOH, Piper Auto Control III Autopilot, Aspen Pro EFD-1000 PFD, Aspen Evolution 500 Multi-Function Display, Avidyne IFD-440 GPS, L3 Lynx NGT-9000 ADS-B Compliant Transponder, Stratus USB Charging Ports, Garmin Aera 660 GPS with Docking Station, Insight G3 Graphic Engine Monitor, LED Lights, Rosen Sun Visors, Knots 2U Wing Root Speed Modification, New Paint in 2017! | |
| Price: |
$145,000 USD
|
| Offered By: | Bartelt Aviation |
| Registration: | N21870 |
| S/N: | 28R-7837309 |
| Location: |
Wichita Falls, Texas United States
|
| Days Active: | 26 days ago |
| Airframe | |
| USEFUL LOAD: 996 Pounds | |
| Total Time: | 8,753 Hours |
| Avionics | |
|

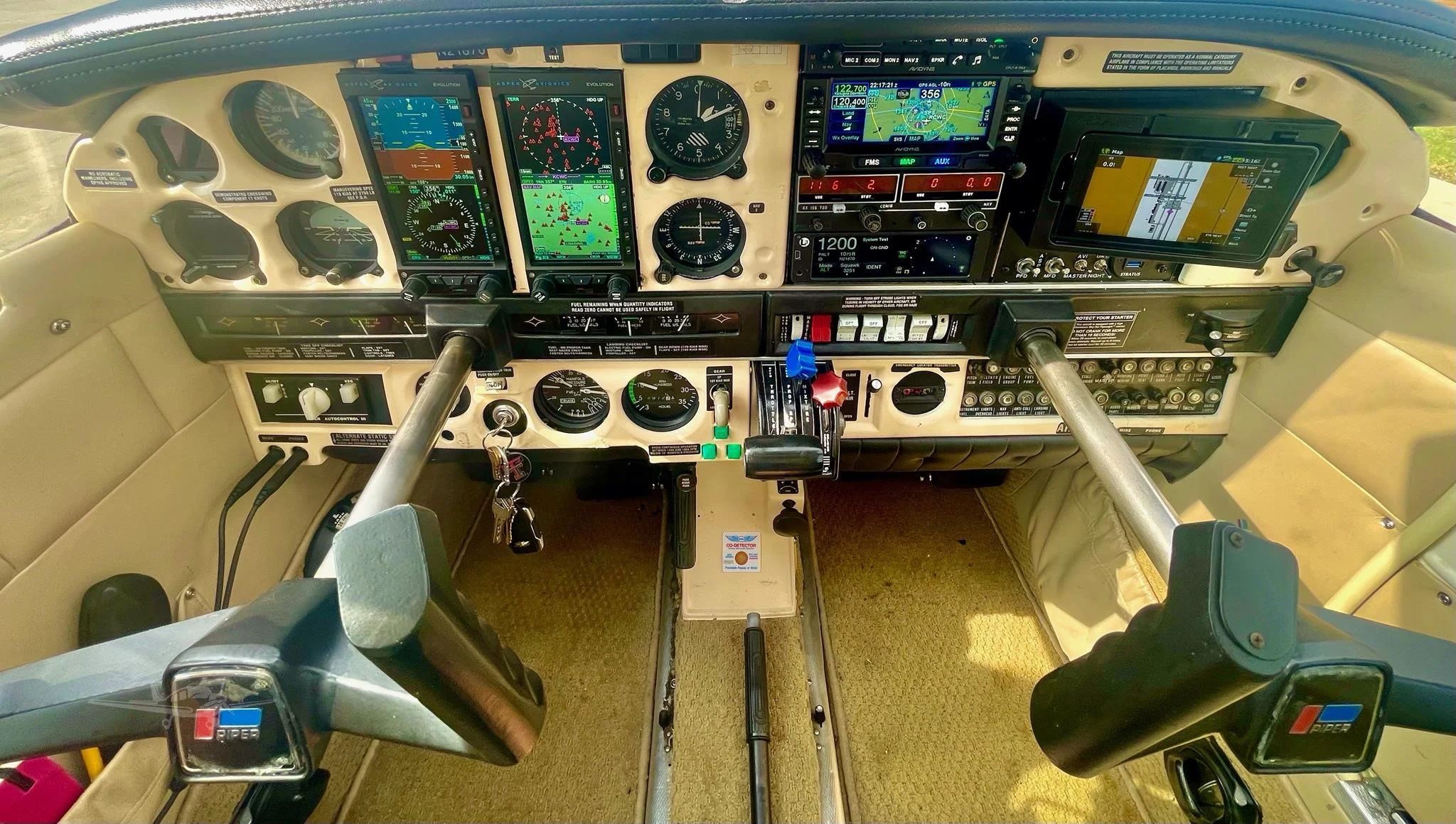

Piper Auto Control III Autopilot Featuring Heading Tracking Feature Avidyne AMX-240 Audio Panel / 3 Light Marker Beacons / 4-Place Intercom Aspen Pro EFD-1000 Primary Flight Display Aspen Evolution 500 Multi-Function Display Avidyne IFD-440 WAAS Approved GPS / Nav / Com King KX-155 Nav / Com King KI-209 VOR / Glideslope Indicator L3 Lynx NGT-9000 Transponder Featuring ADS-B Out Dual Push to Talk Switches Stratus USB Charging Ports – (Panel Mounted) Garmin Aera 660 GPS and Docking Station – (Panel Mounted) Stand-By Back-Up Attitude Indicator – (Pilot Side) Insight G3 Graphic Engine Monitor |
|
| Additional Equipment | |
|

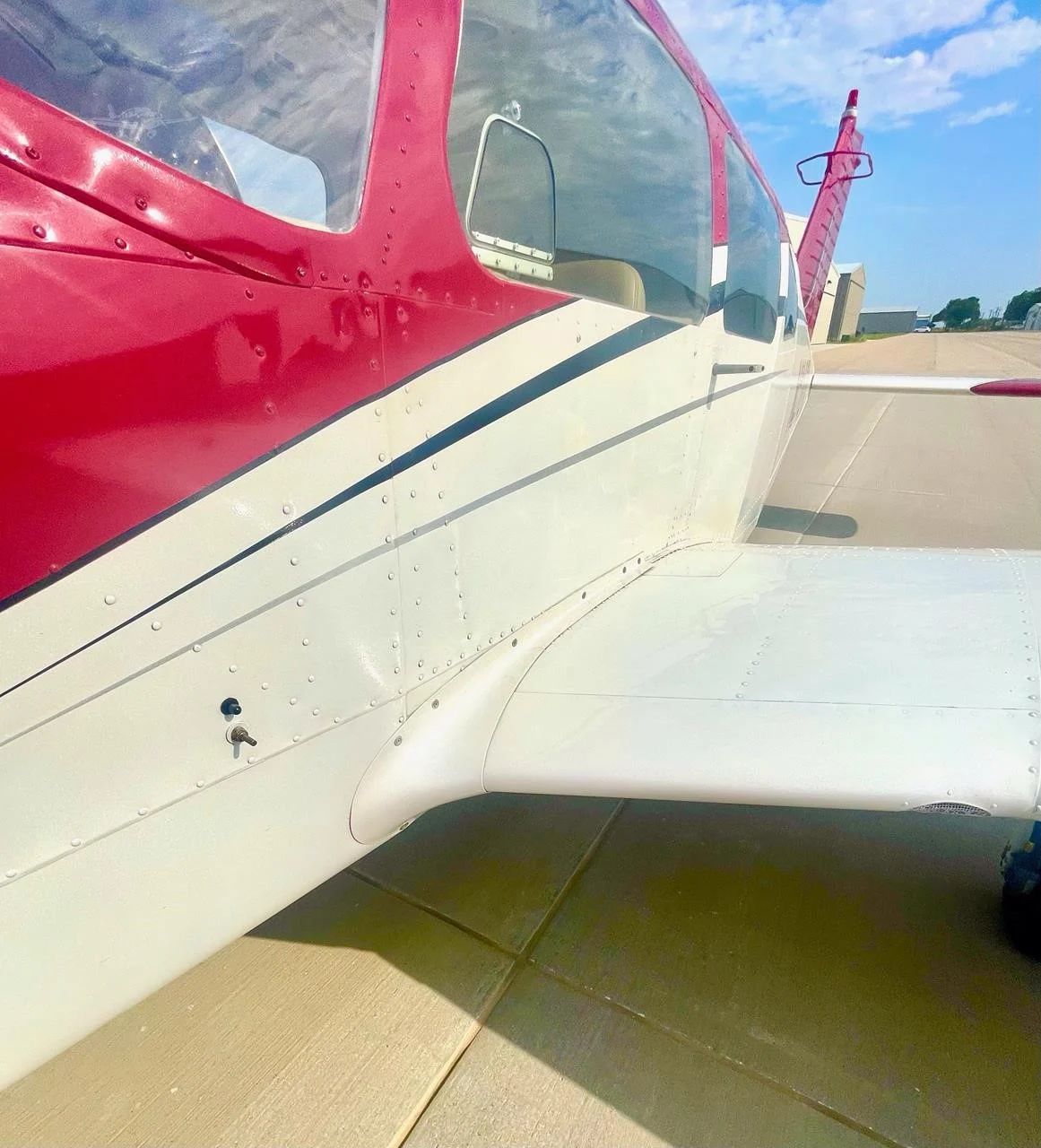

ADDITIONAL OUTSTANDING FEATURES / UPGRADES Knots 2-U Wing Root Fairings Speed Enhancement LoPresti Hubba Caps Speed Enhancement LED Position Lights LED Landing / Taxi Light – (Cowl Mounted) Rosen Sun Visors Static Wicks Outside Air Temperature Gauge Tow Bar Avionics Master Switch Cleveland Wheels and Brakes Concorde Sealed Battery GAMI Fuel Injectors Wing Ding Door Stop Wing Tip Strobes Tinted Windows Hobbs Meter Heated Pitot |
|
| Engines & Props | |
|
Engine Engine 1 Make/Model - LYCOMING IO-360-C1C6 Engine Serial Number - RL-10589-51A Engine Horsepower - 200 HP Engine TBO - 2000 Engine Notes The engine overhaul was performed by Custom Airmtoive in 2016. Props Prop Manufacturer - MCCAULEY Prop Time - 528 SOH Number of Blades - 3 Blade Composition - Aluminum Prop Notes The Propeller (B2D34C213-B) was overhauled in 2016. |
|
| Engine Hours: | 528 SMOH |
| Interior & Exterior | |
|

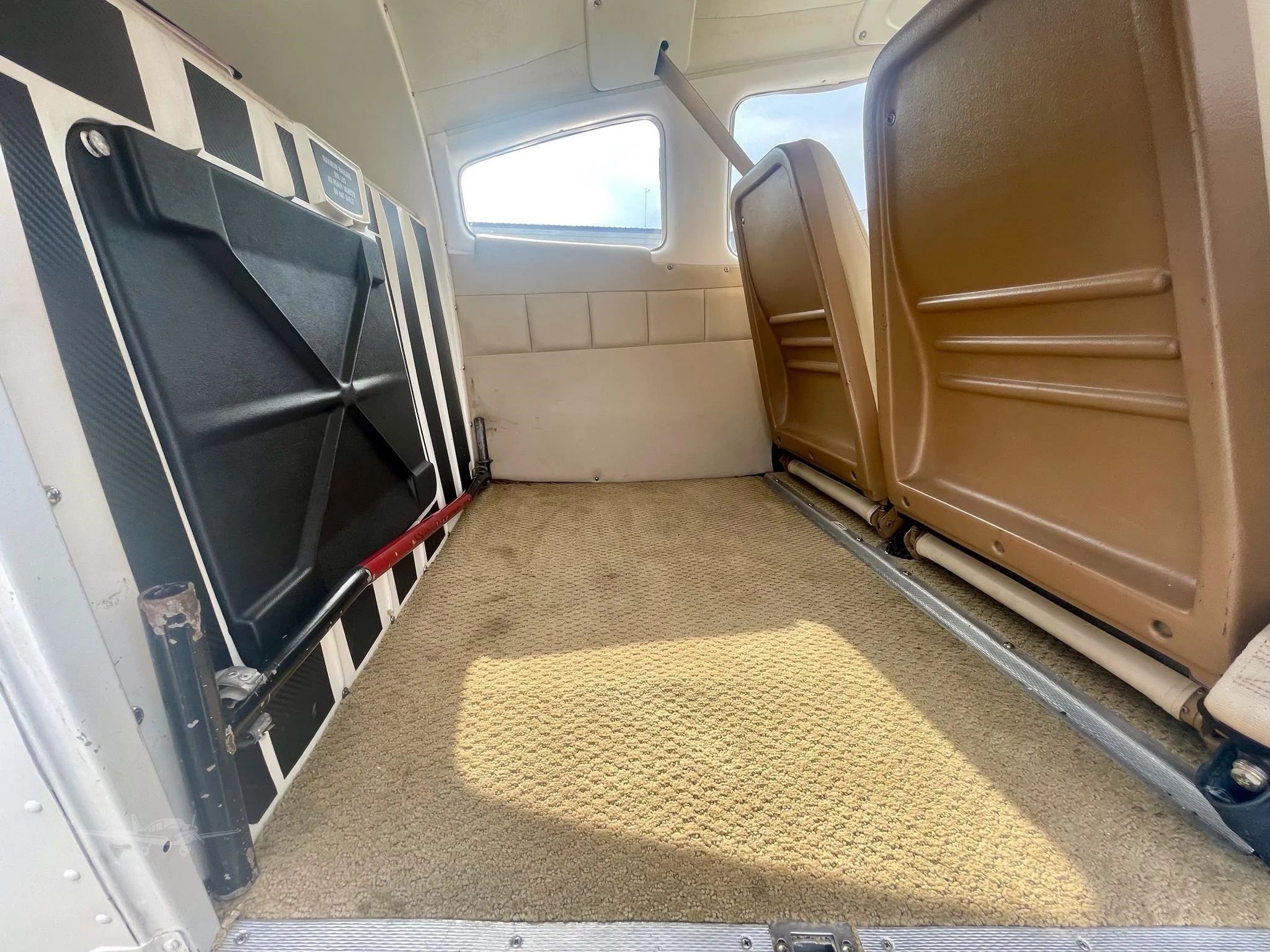

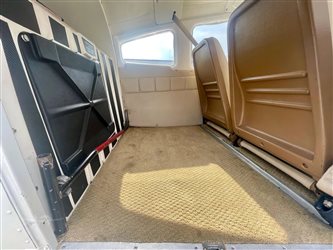

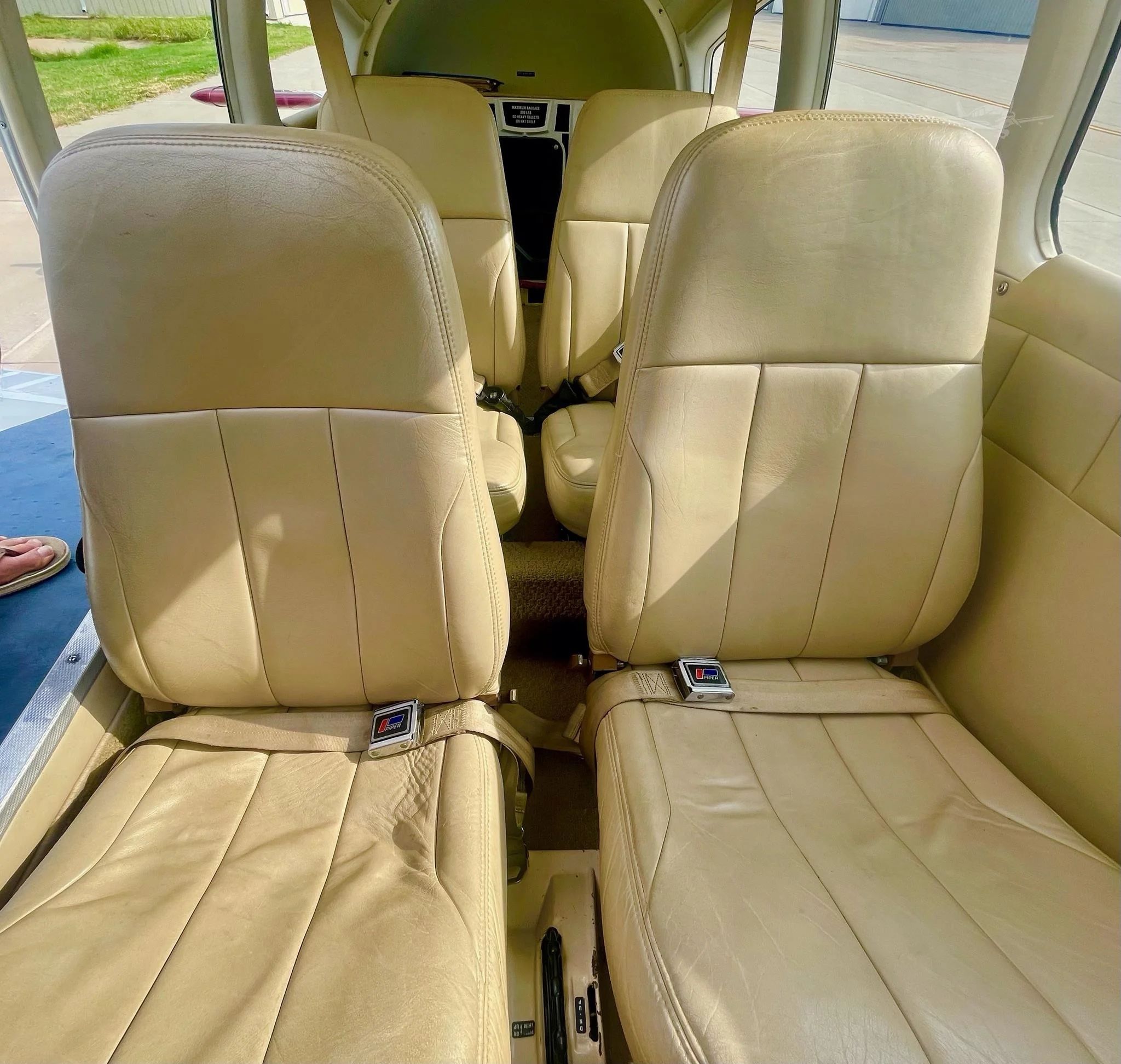

Number of Seats - 4 Interior Notes Beige Leatherette seating Featuring Harmonizing Side Panels Beige Carpeting |
|
|

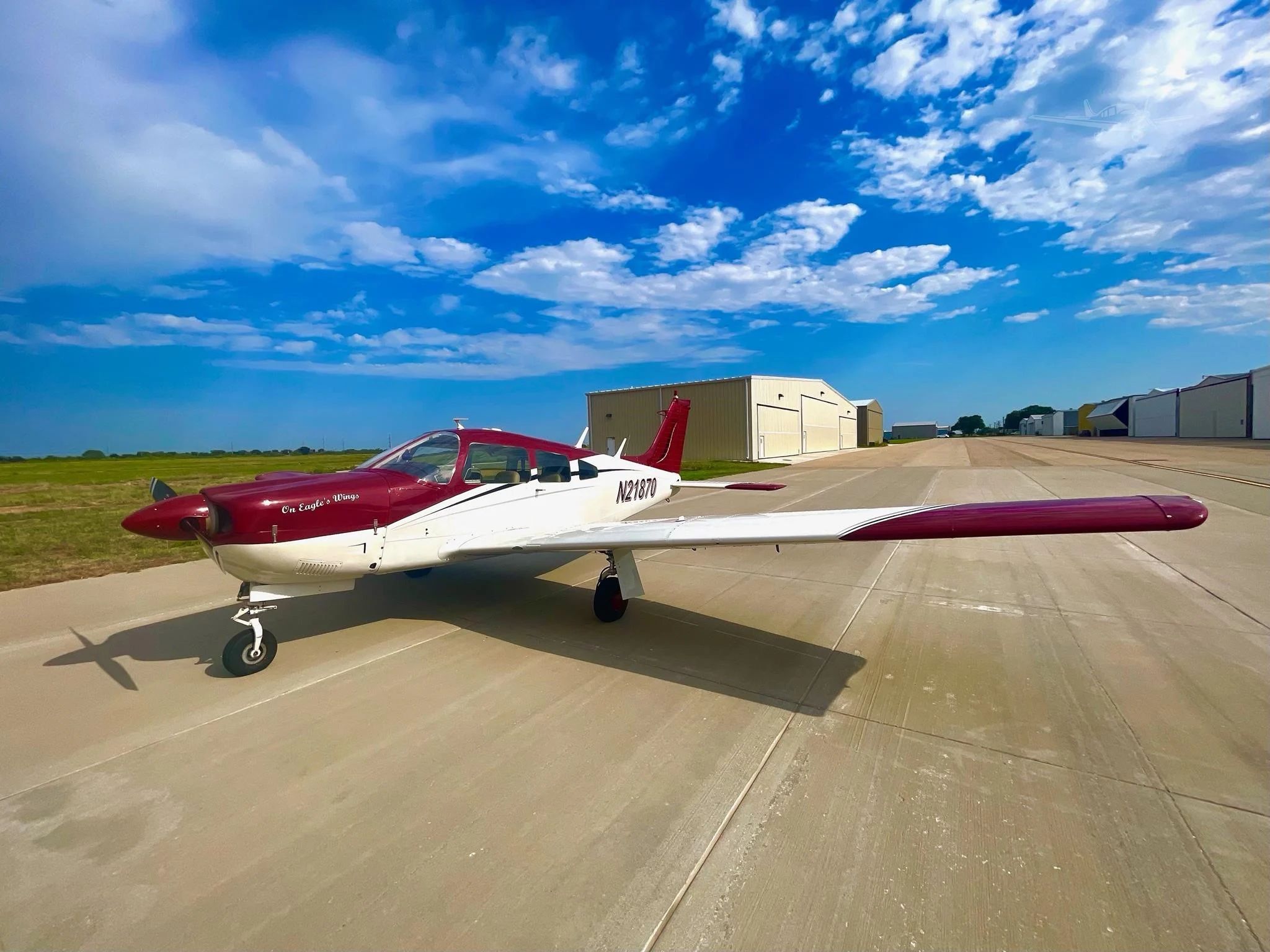

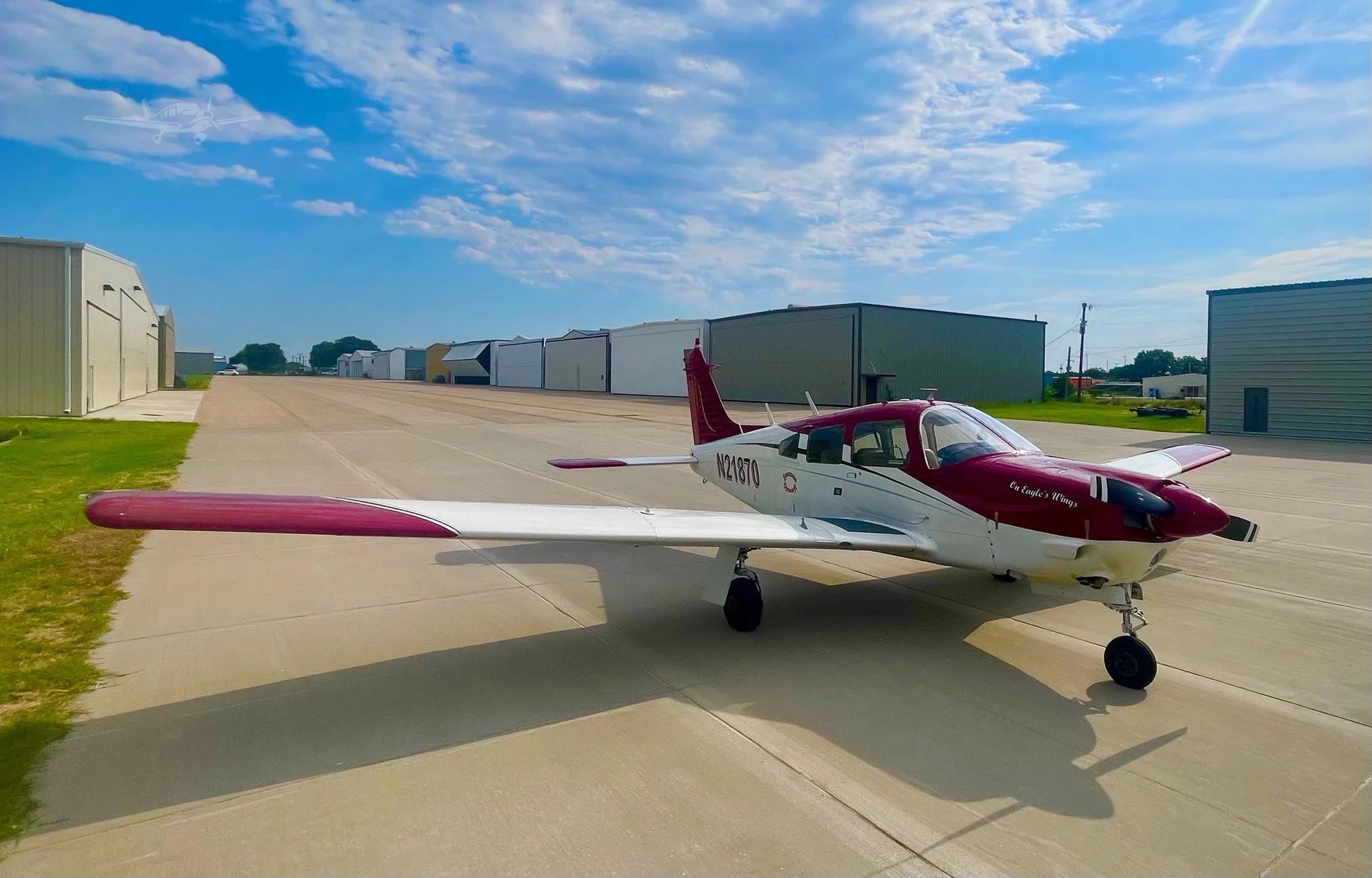

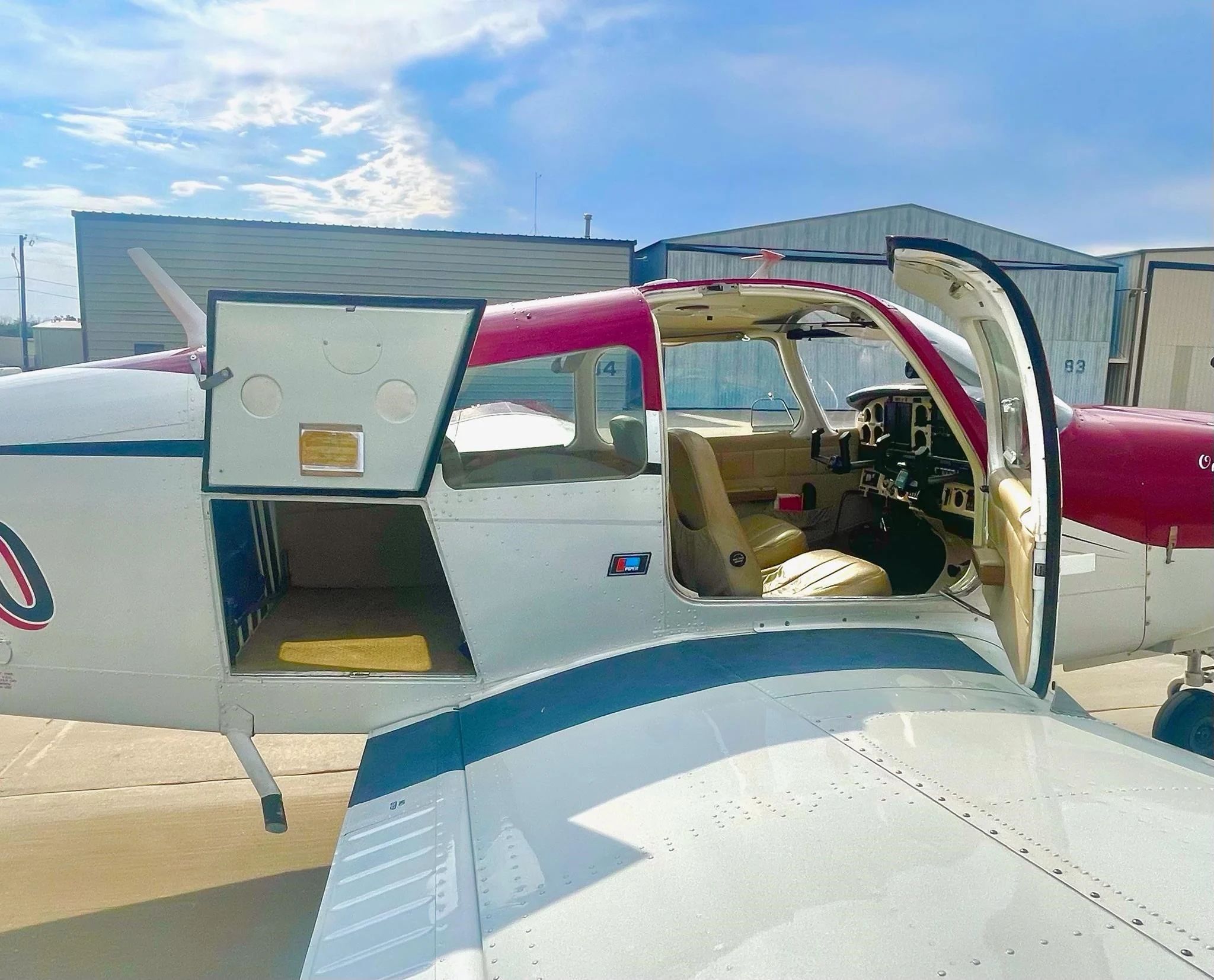

White with Red and Blue Accents New Paint in 2017 New Side Windows in 2017 New LP Aero Windshields Upgrade in 2010 |
|
| Year Painted: | 2017 |
| Other Info | |
|
Inspection Status: ANNUAL DUE: February 1, 2026 BI-ANNUAL IFR CHECKS DUE: June 27, 2027 NOTATIONS AD 2020-25-16 Wing Spar Eddie Current Inspection was completed May 12, 2021. See airframe log book entry for complete details. |
|
| Damage: | Yes |
|
Damage Notes: The aircraft did have some hail damage and subsequent repairs were completed by Straight Flight FAA CRS #OMKR399L on June 12, 2008 at 7037 Hours Total Time. Several skins were replaced. See airframe log entry for complete details. The LH wing leading edge skin (p/n 35118-28) was replaced with a new part on January 19, 1979. |
|
