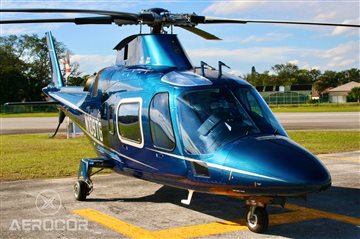

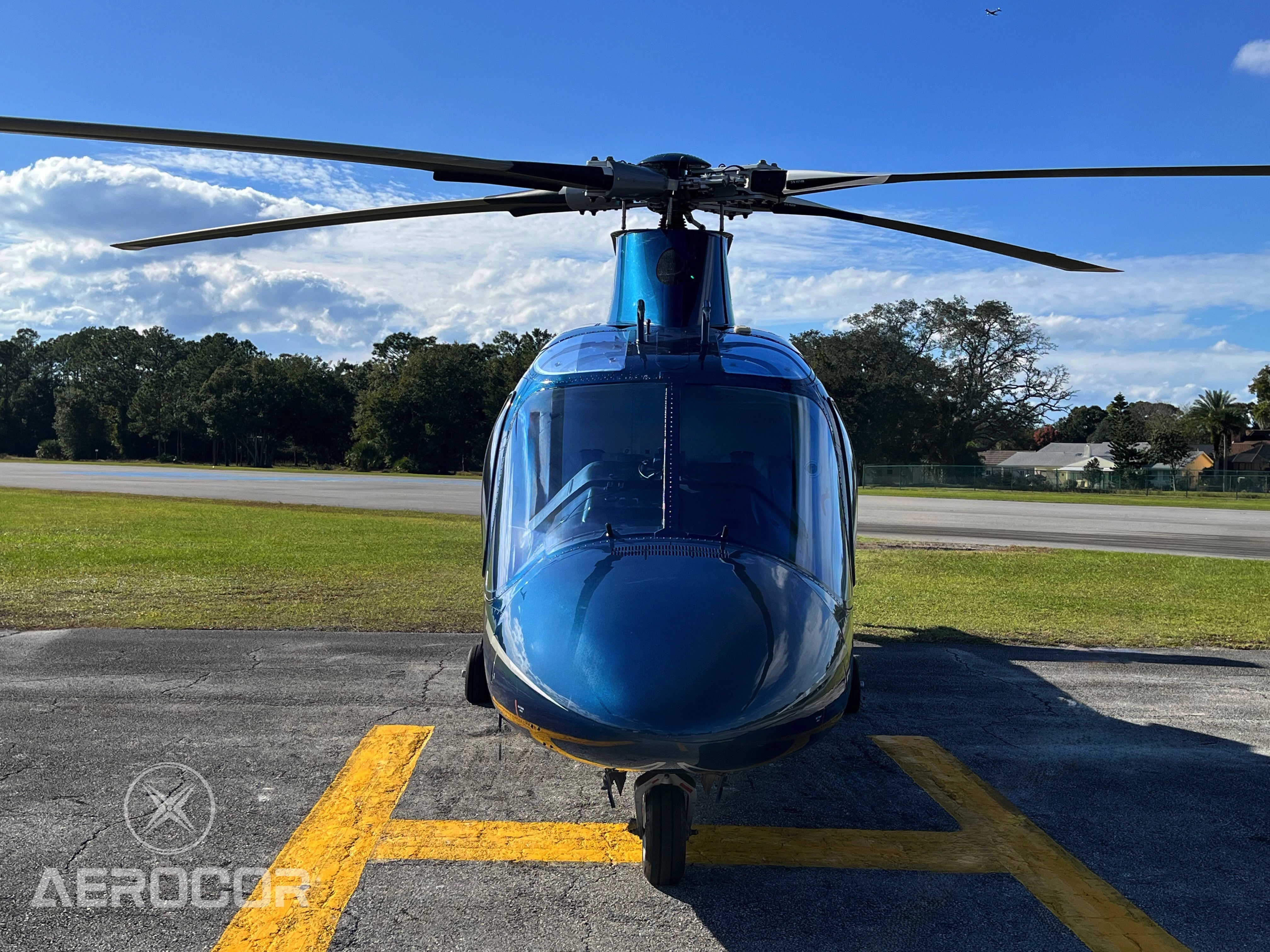

2006 Agusta A109E
| Overview | |
|
N109TG has been privately owned and operated by its second owner since 2016 and boasts exceptionally low total time. Fully equipped and single-pilot IFR capable, this A109E Power has been meticulously maintained and continuously upgraded with VIP travel in mind. Recent avionics enhancements include dual Garmin GTN 650 HXI GPS/NAV/COMM units and the latest Astronautics “RoadRunner” EFIS. The aircraft has been continuously stored in a climate-controlled hangar, preserving its exceptional interior and exterior condition. Technical Specifications: 1+7 seating configuration Twin engine helicopter w/ dual hydraulics Maximum speed: 168 kts/193 mph Cruise speed: 154 kts/177 mph Fuel capacity: 220.5 gal/835 l Fuel endurance: 3.5 hours Maximum altitude: 19,600 ft Maximum gross weight: 6,614 lbs/3000 kgs |
|
| Price: | Contact Seller |
| Offered By: | AEROCOR |

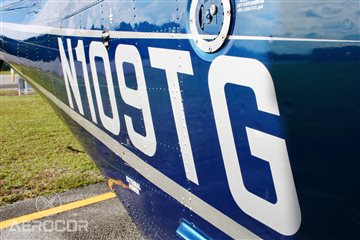

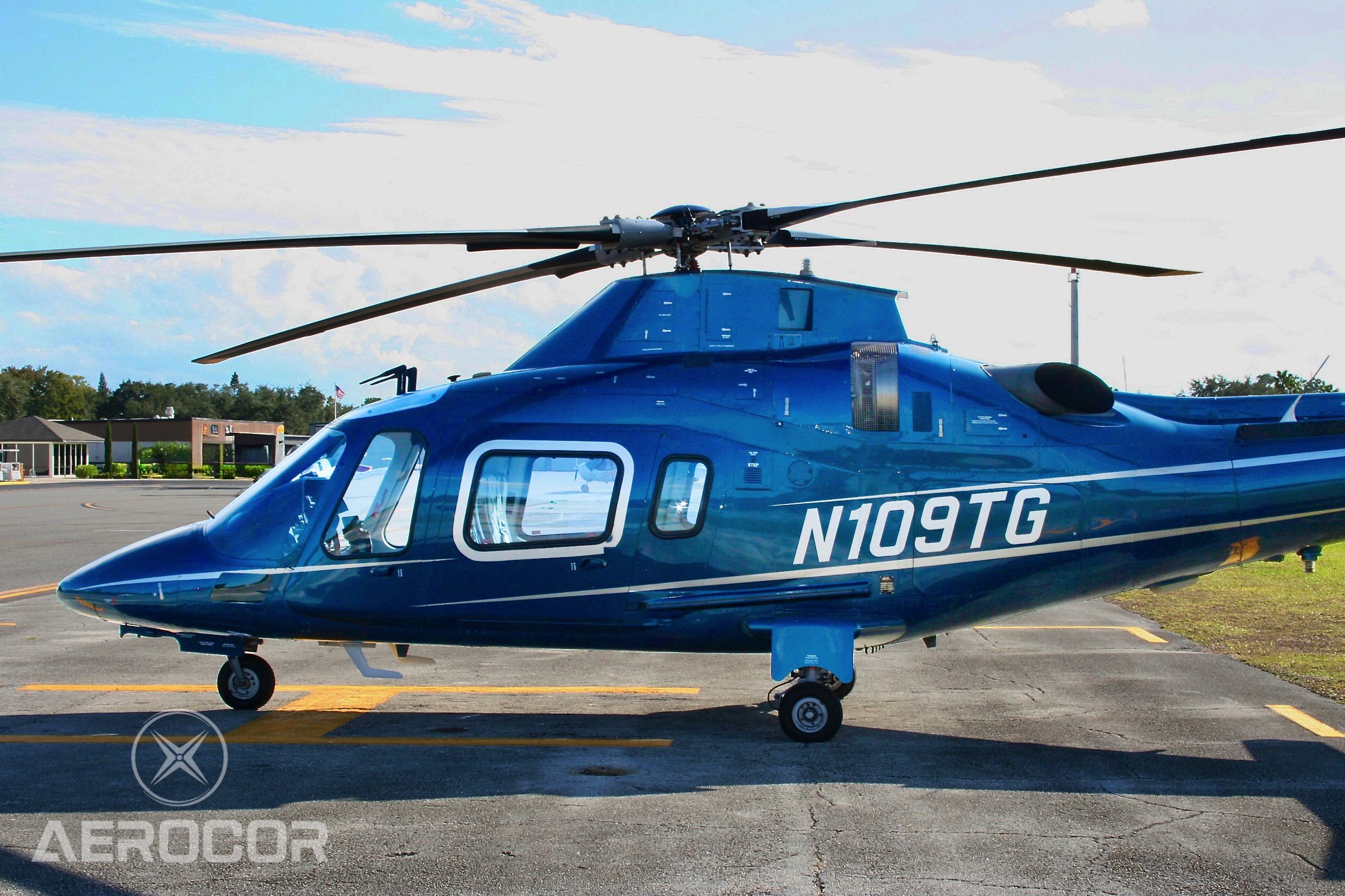

| Registration: | N109TG |
| S/N: | 11680 |
| Location: |
Port Orange, Florida United States
|
| Days Active: | 1 day ago |
| Airframe | |
|
Max Speed 168 KNOTS Max Altitude 19,600 FT |
|
| Total Time: | 1,992 Hours |
| Avionics | |
|

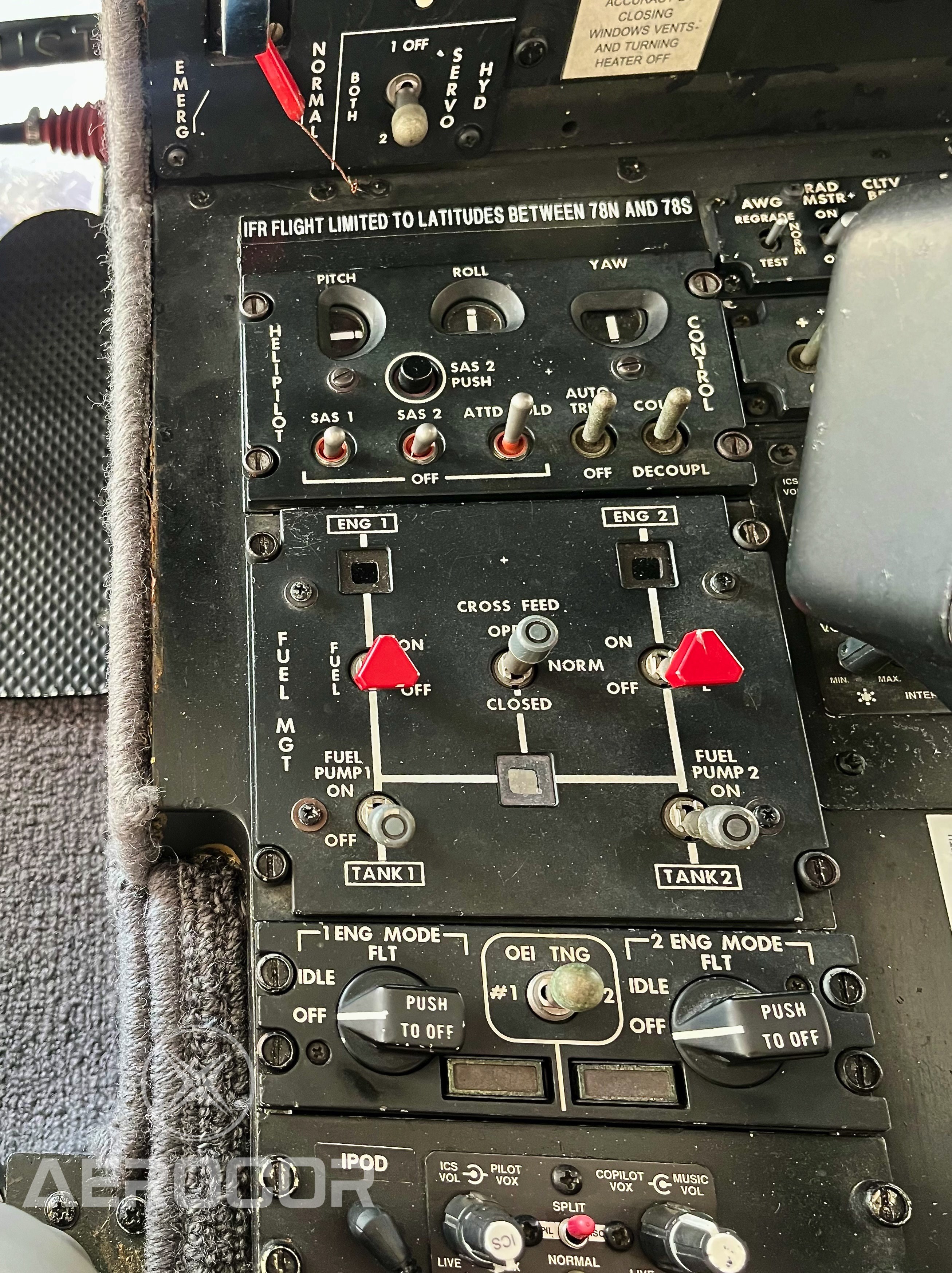

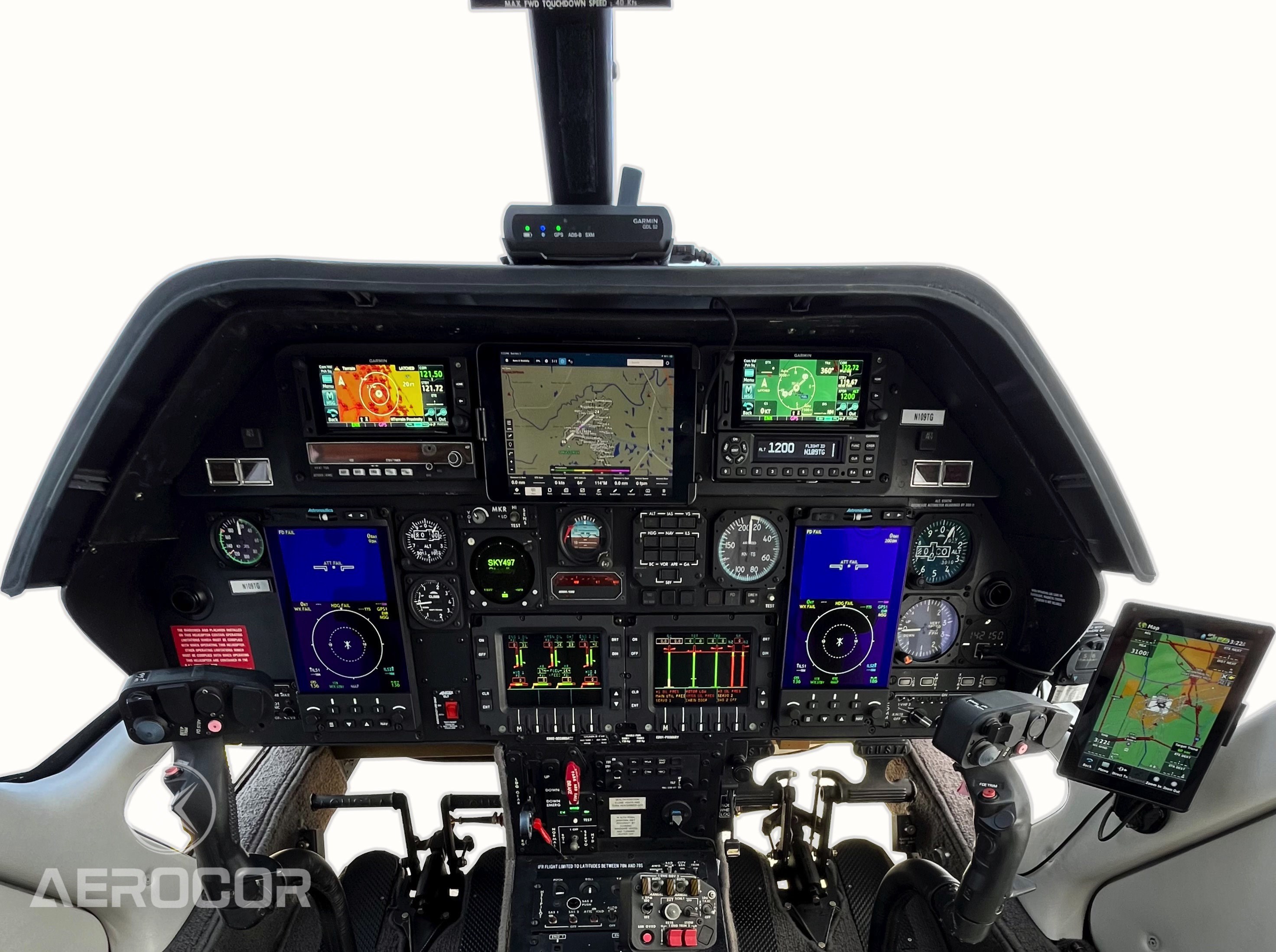

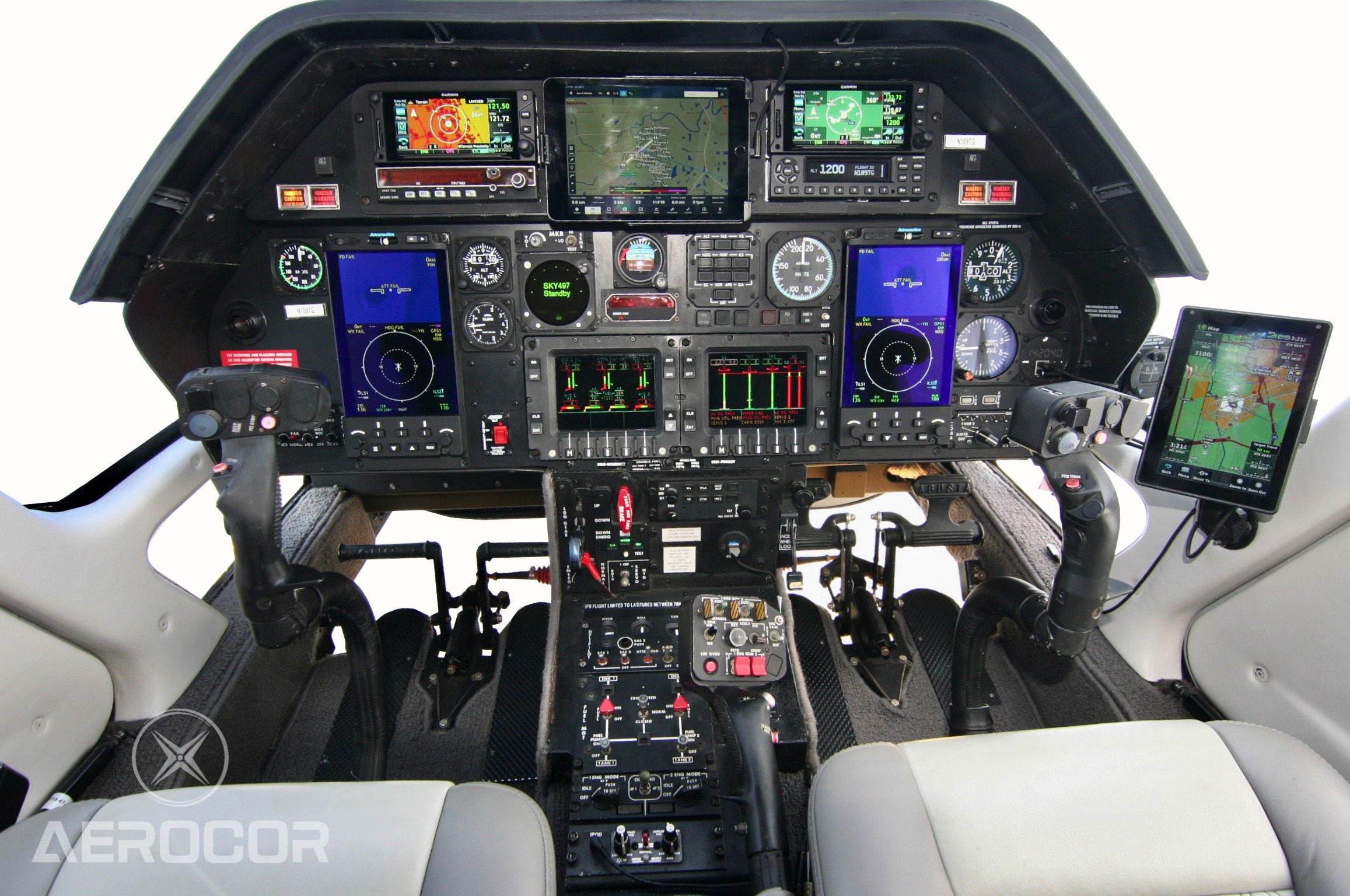

Dual Garmin GTN 650HXI GPS/Nav/COM Garmin GTX 335 transponder w/ ADS-B “OUT” Garmin Aera 760 portable GPS w/ mount and power Garmin GDL 52 ADS-B “IN” receiver/XM weather Dual Astronautics “RoadRunner” EFIS AFI4700, Model #277060 iPad mini mount w/ power Bendix/King KDM706a DME Bendix/King KR87 ADF receiver Bendix/King RDR 2000 weather radar Skywatch SKY497 traffic advisory system w/ Stormscope 3-axis AFDS (Autopilot Flight Director System) Cockpit USB-A charging ports Rear Cabin USB-A/C charging ports |
|
| Additional Equipment | |
|

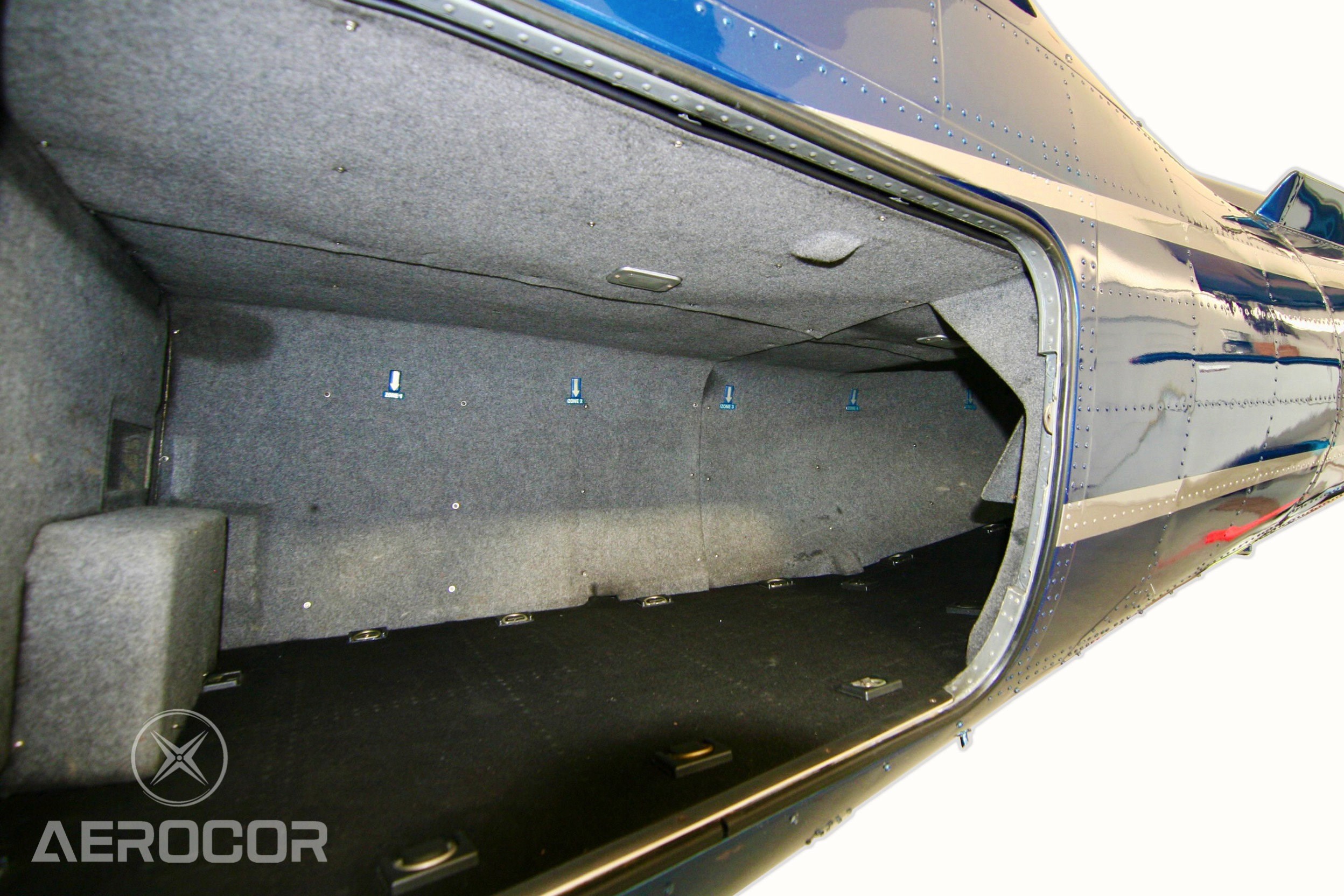

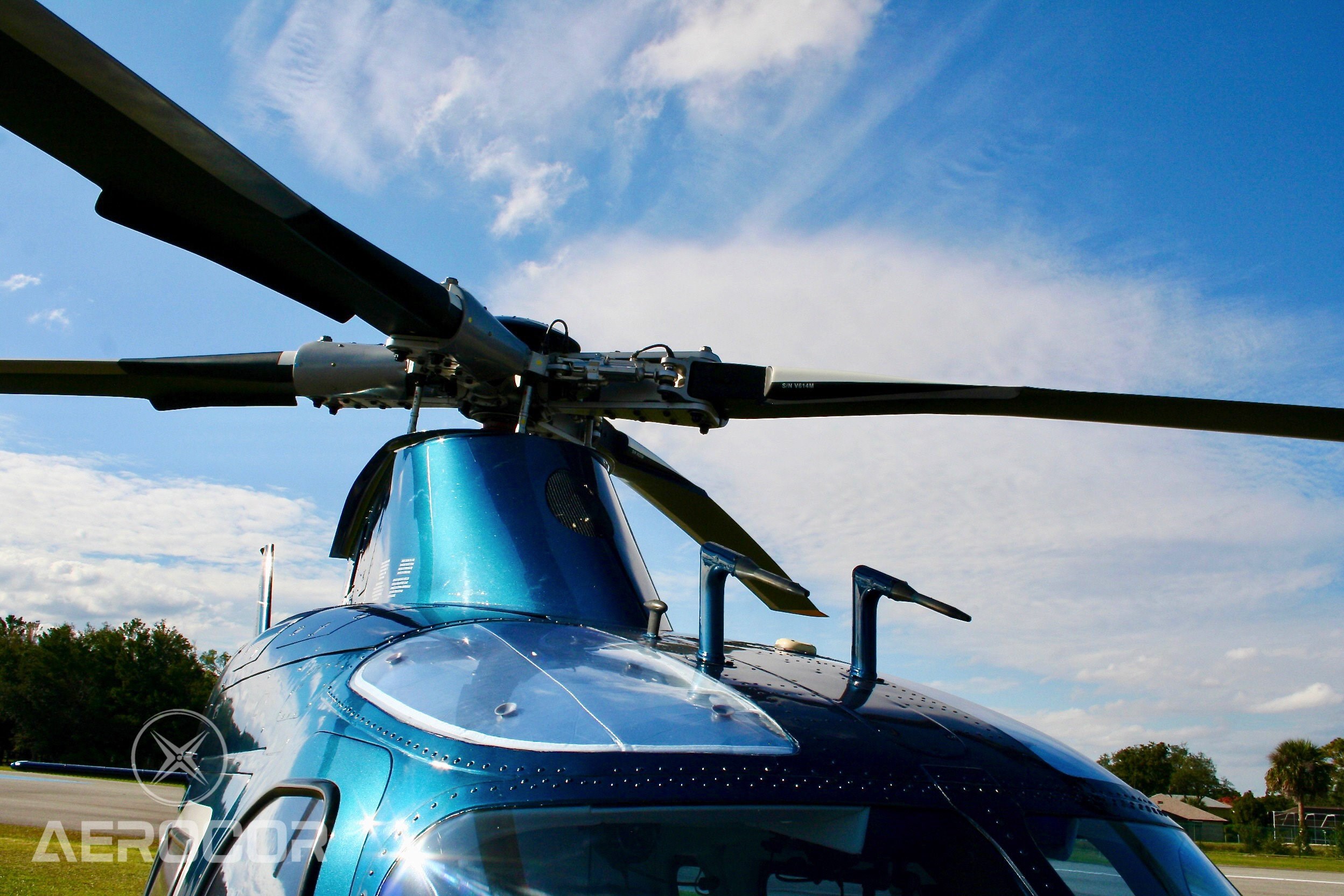

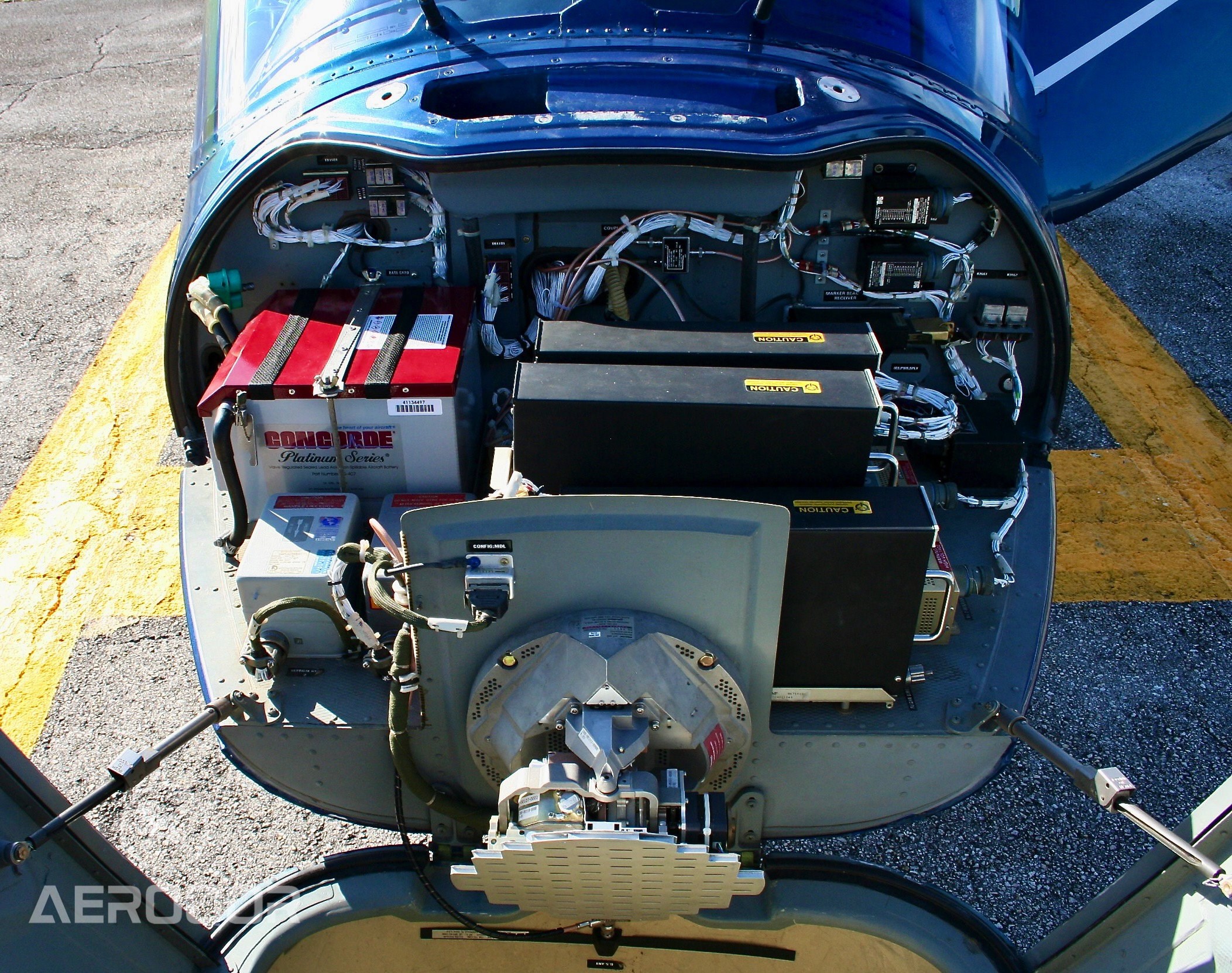

Standard Features: Rotor brake Dual controls Engine compartment fire extinguishers Cabin fire extinguisher Pulsed chip detectors Map lights (cockpit+cabin) Environmental control system (air-conditioning & heating) Searchlight Dual rear sliding doors Equivalent category “A” operations Compass – Airpath Standby attitude indicator – Jet ELT – Artex Instantaneous vertical speed indicator Directional gyro Digital clock – Astrotech Retractable landing gear Headrests (pilot/co-pilot) Reinforced windshields Windshield wipers Upgrades and Additional Features: VIP interior (upgraded in 2022) Rear seating configured for 5 or 6 passengers with middle armrests Rear cabin refrigerator (not currently installed) Luxury leather seating (cockpit+cabin) Reinforced windshields Concorde battery – #RG407 Anti collision light upper/lower – Whelen Supplementary fuel tanks (adds 60 US Gal/227 L) Vle and Vlo extension up to 140 Kias Increased takeoff weight increase (internal) 6,614 lbs/ 3000 kgs Pilot/co-pilot door open locks High temperature operation (ISA+35C) Baggage compartment enlargement Bruce’s custom interior window inlay covers Titanium main rotor blade tips |
|
| Engines | |
|
Make / Model: (2) Pratt & Whitney PW206C Turboshaft engines (640 SHP each) TBO: 3,500 hrs Serial Number: #1 Engine: PCE-BC0601 #2 Engine: PCE-BC0602 Engine Times: Total Time: 1,992.0 (L/R) SNEW |
|
| Engine Hours: | 1,992 SNEW |
| Interior & Exterior | |
|

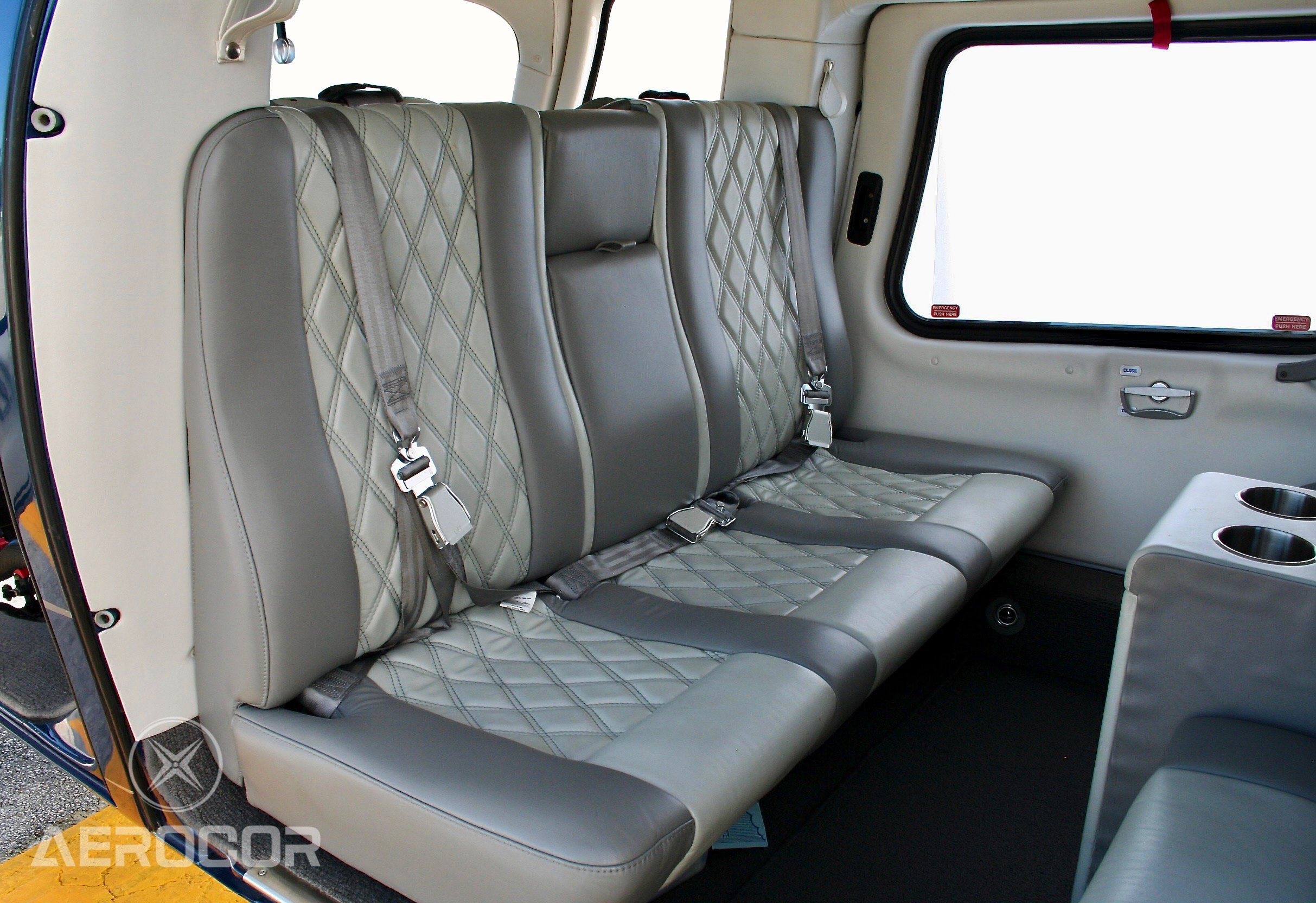

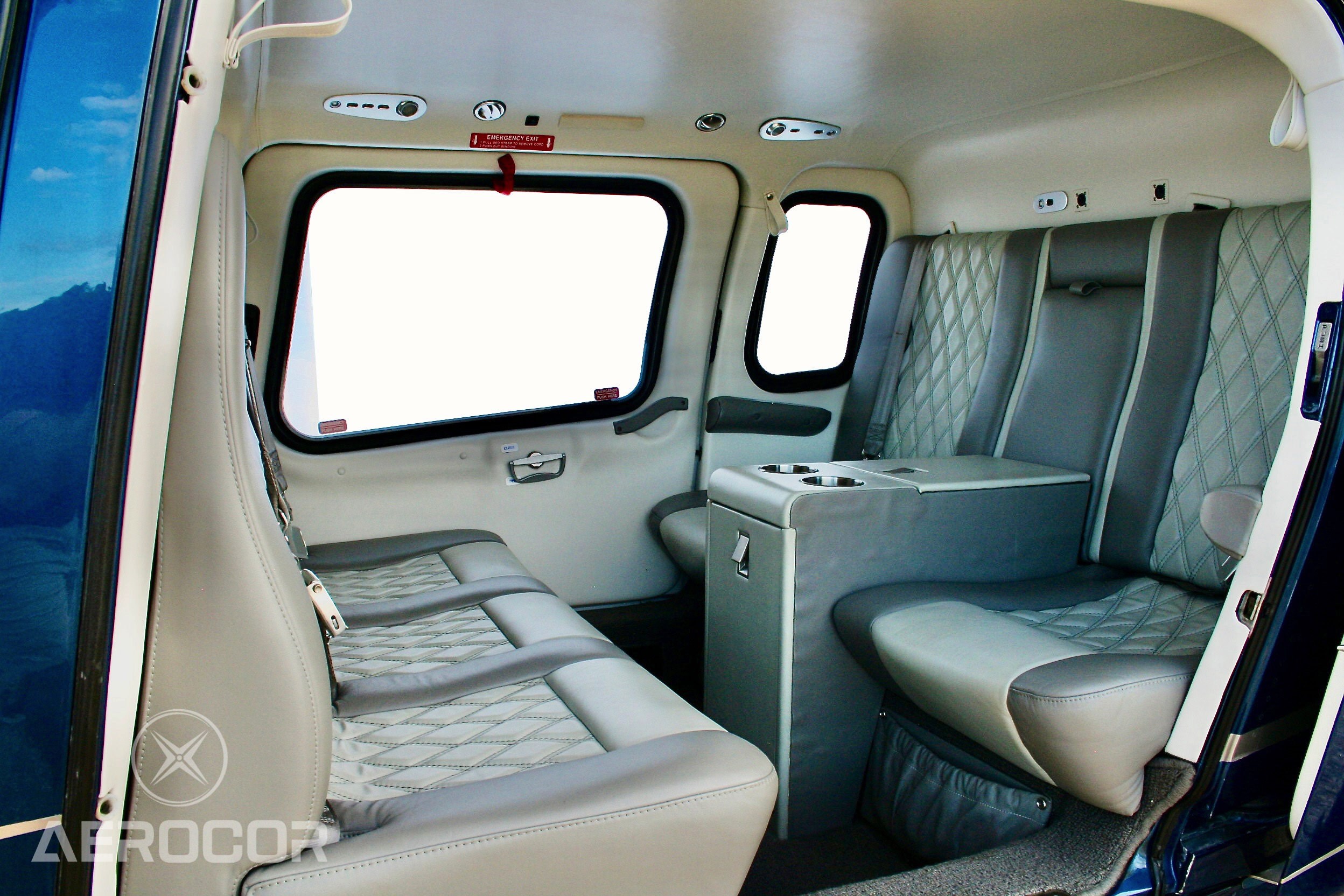

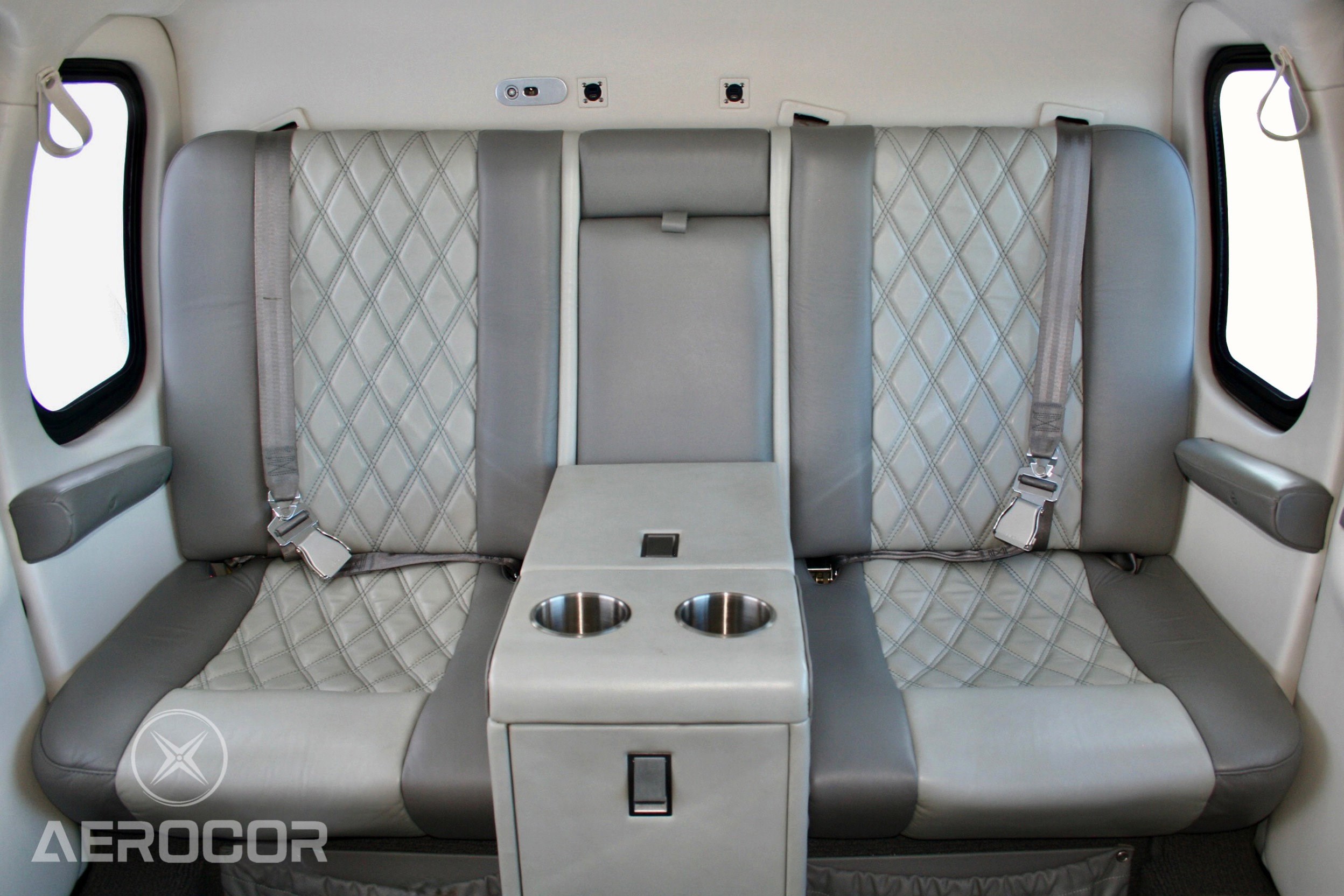

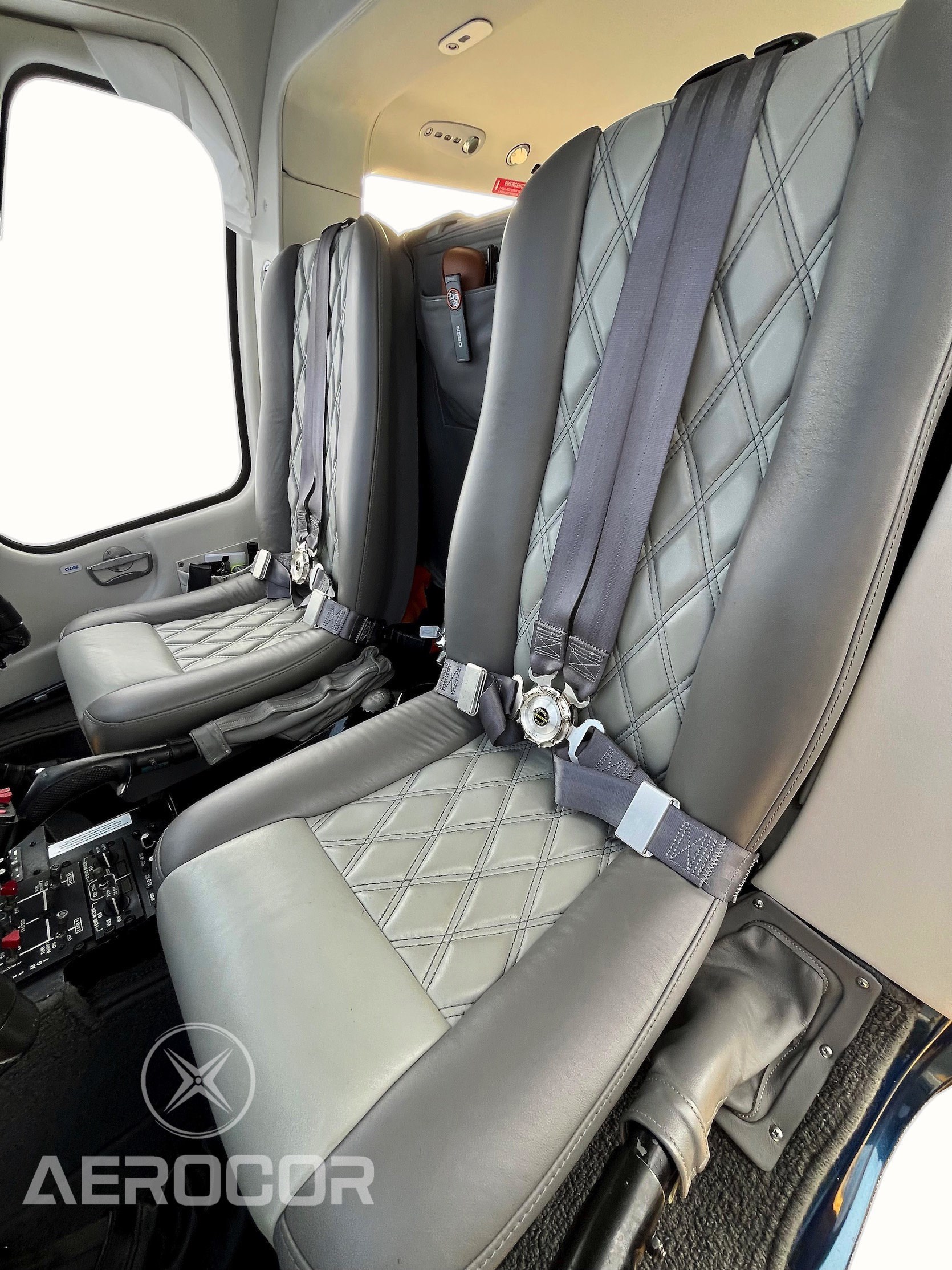

VIP interior featuring up to 6 rear passengers Luxury leather seating with optional refrigerator and middle arm rests Max Occupants 8 PEOPLE |
|
| Year Interior: | 2022 |
|

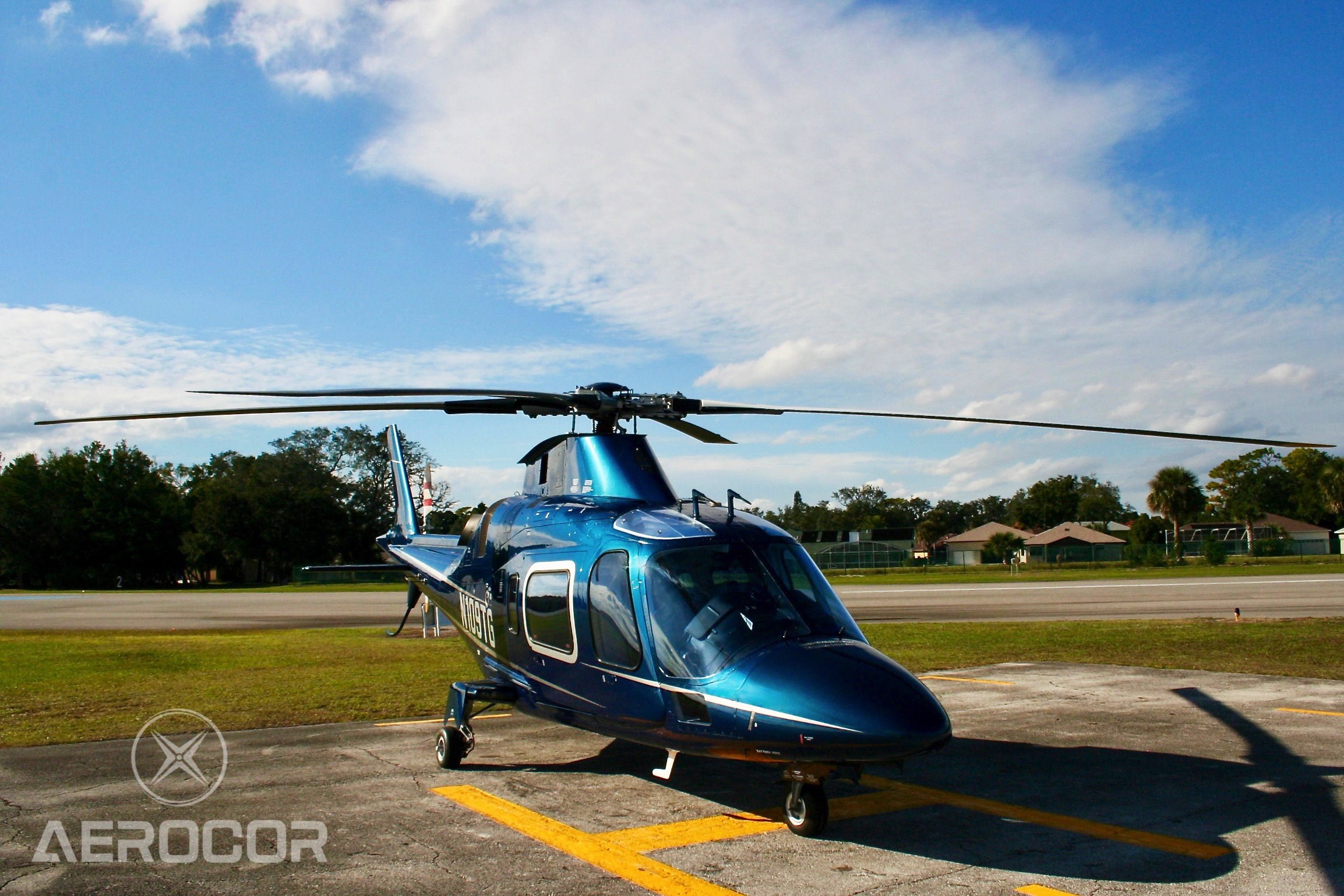

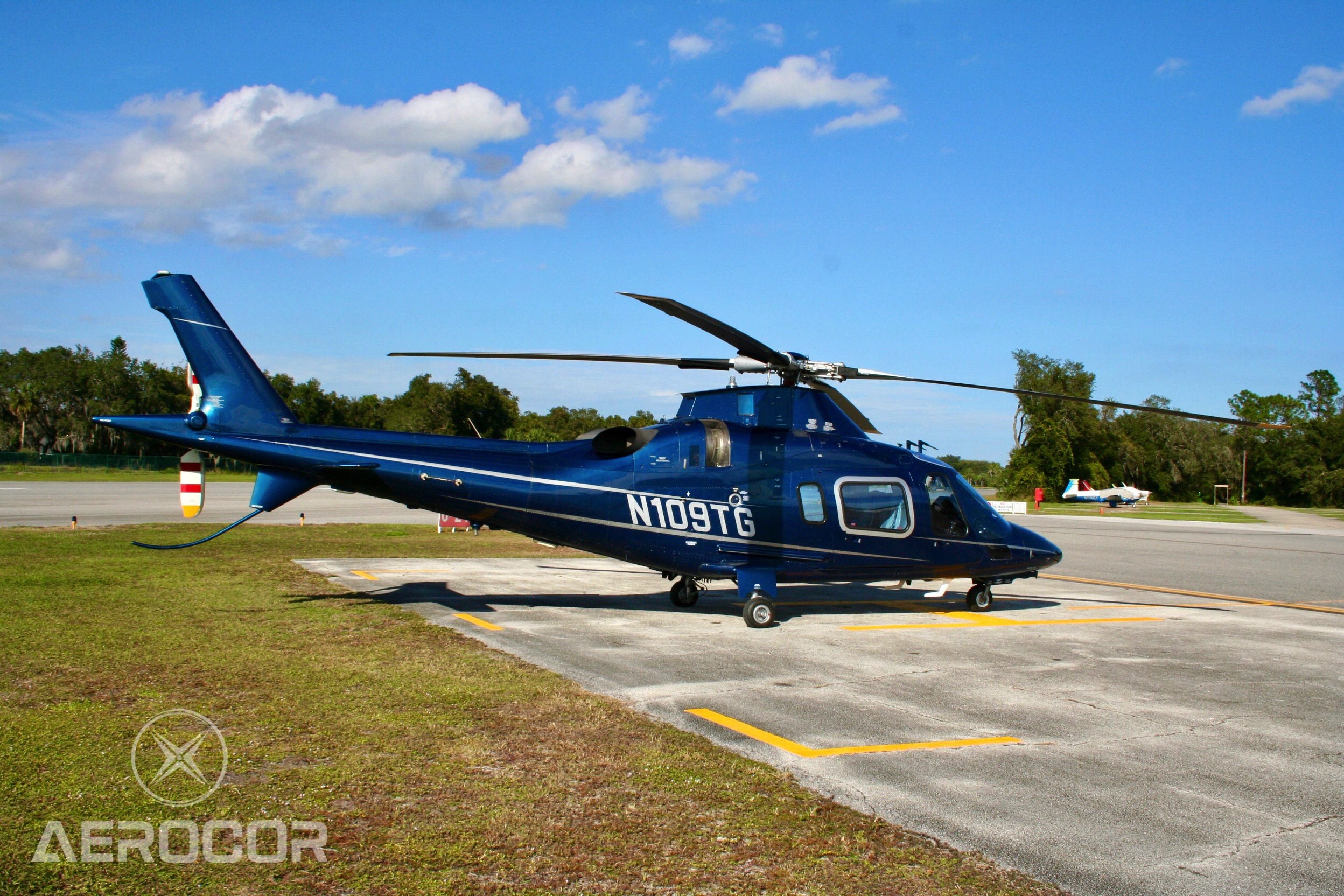

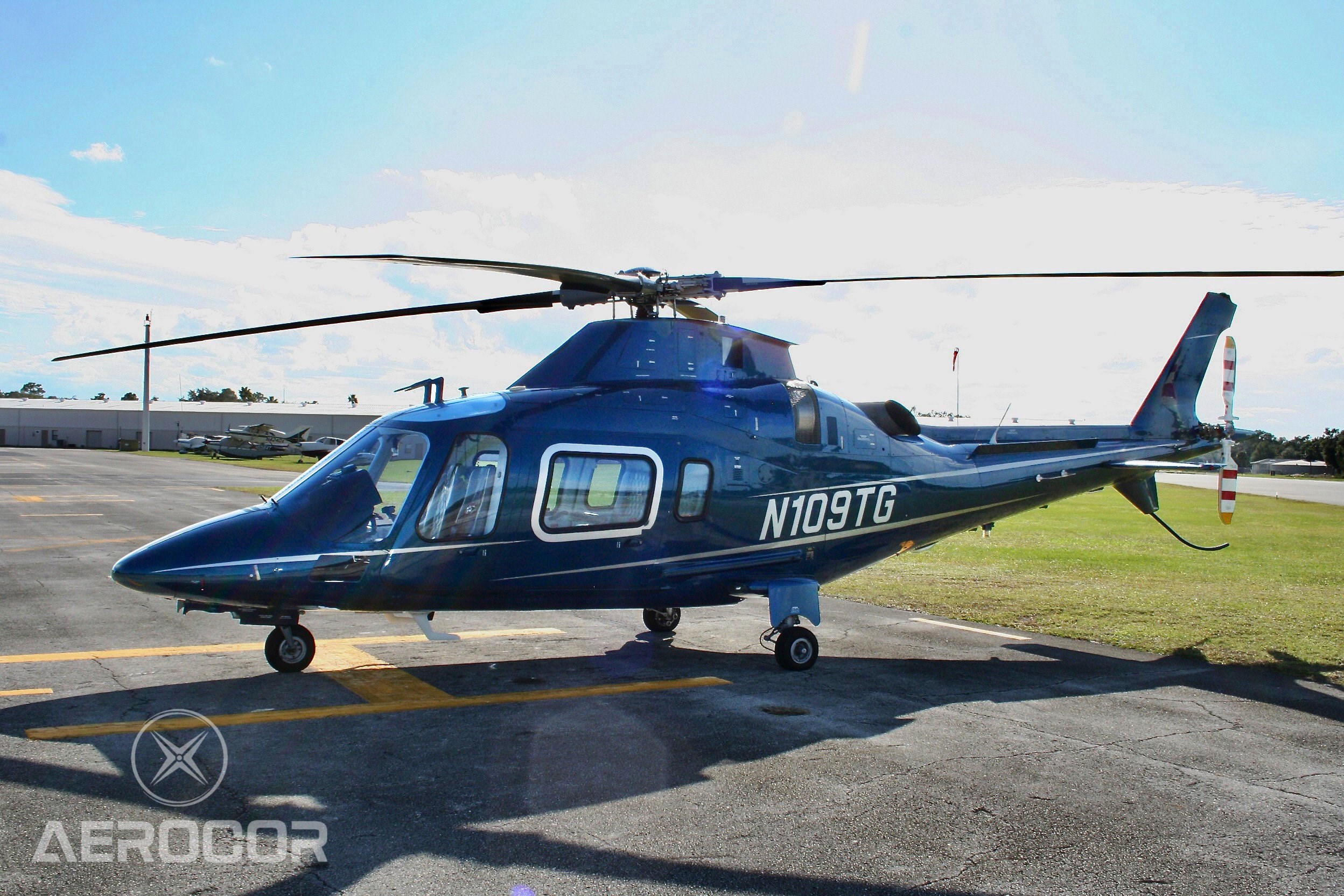

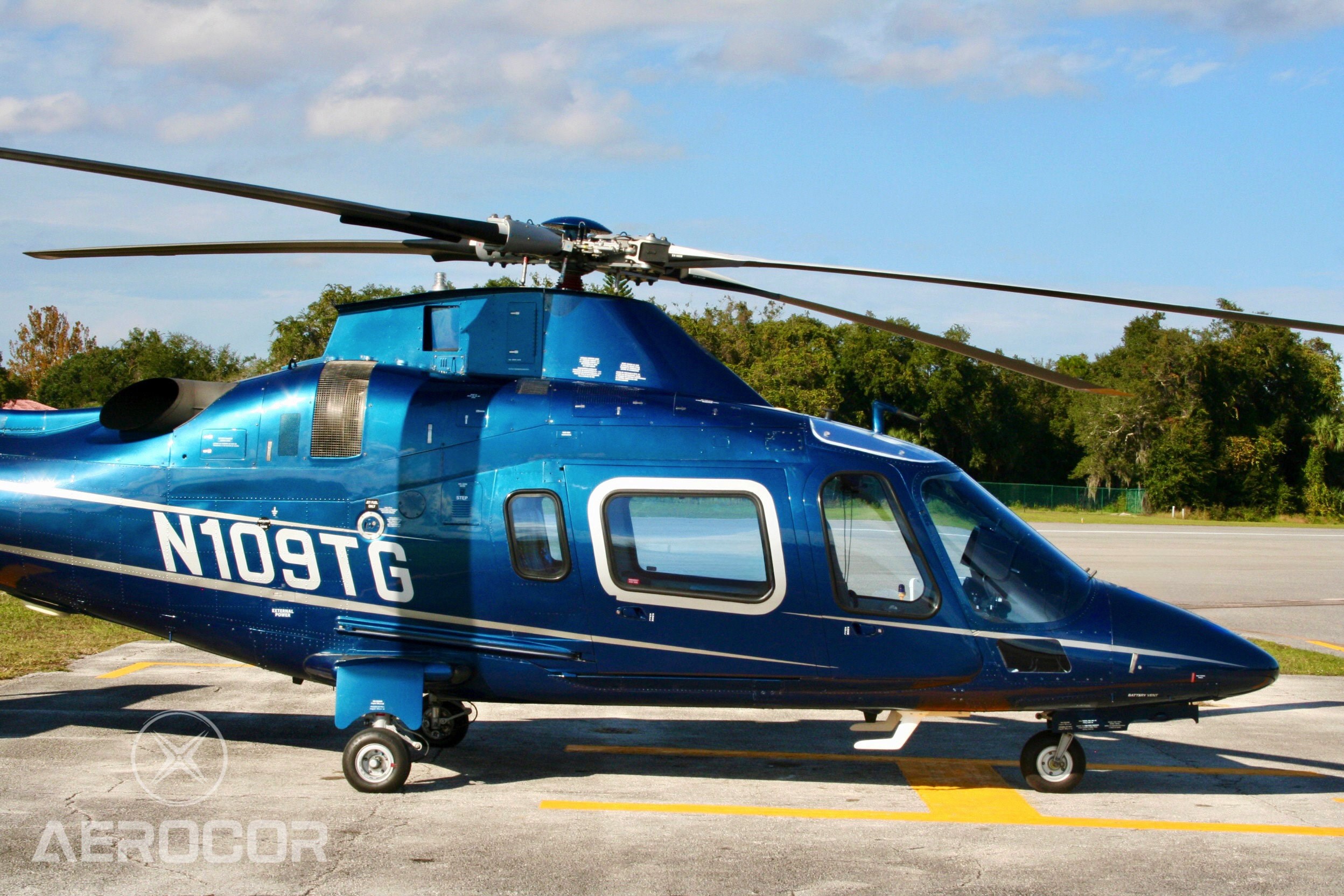

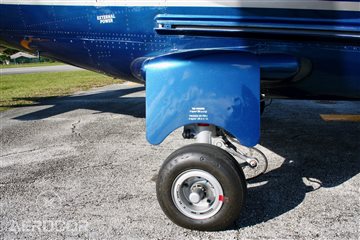

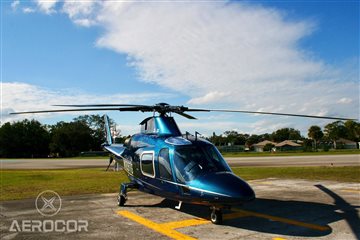

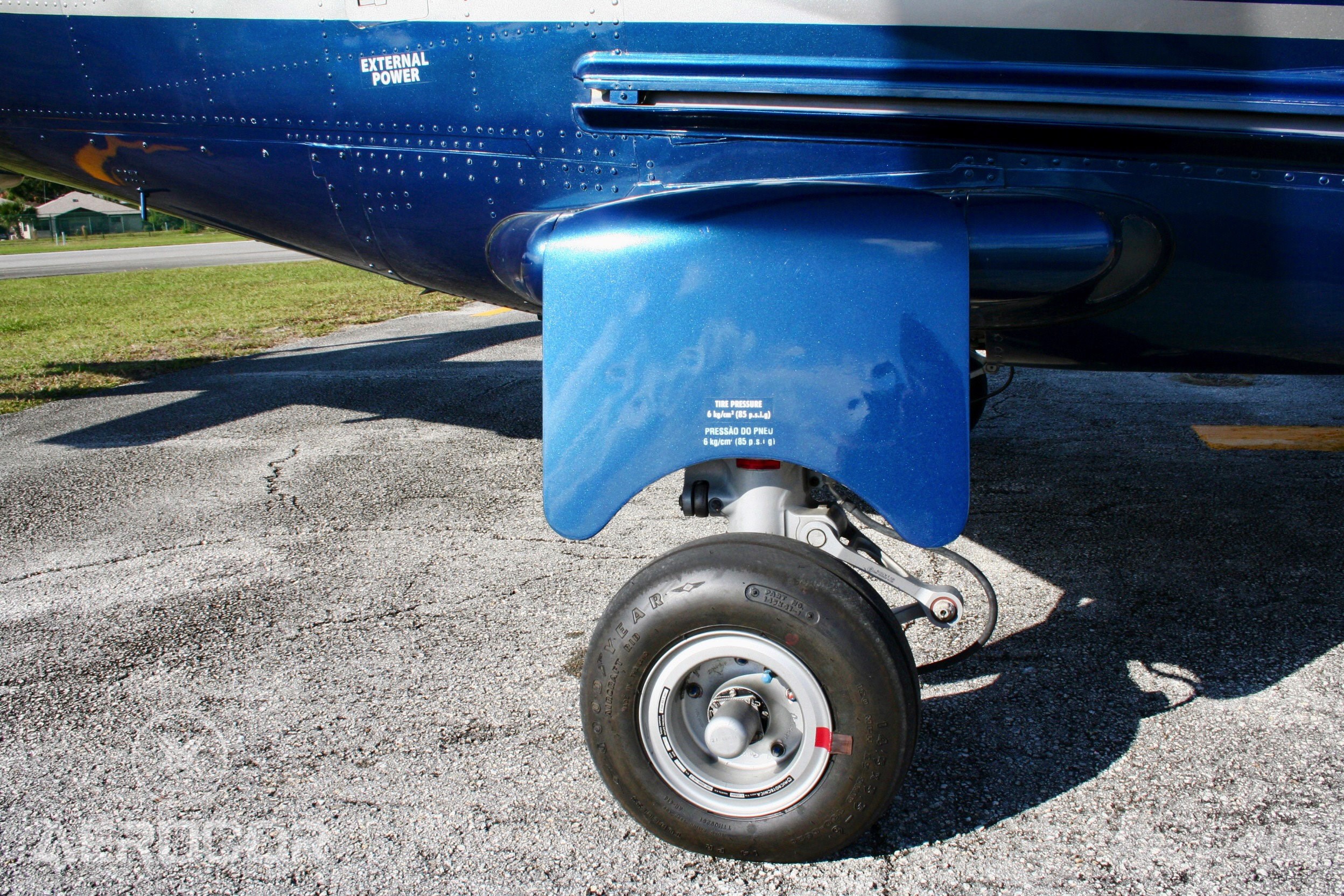

Pearlescent blue paint scheme with white accent Retractable wheeled landing gear |
|
| Other Info | |
|
Inspection Status: 12 Month Airframe Inspection done 5/25 (due 5/31/26) 12 Month ELT Inspection done 05/25 (due 05/31/26) Pitot/Static test done 09/25 (due 09/30/27) Transponder check done 09/25 (due 09/30/27) All Airworthiness Directives complied with Component and engine overhaul times available upon request (CAMP program) |
|
