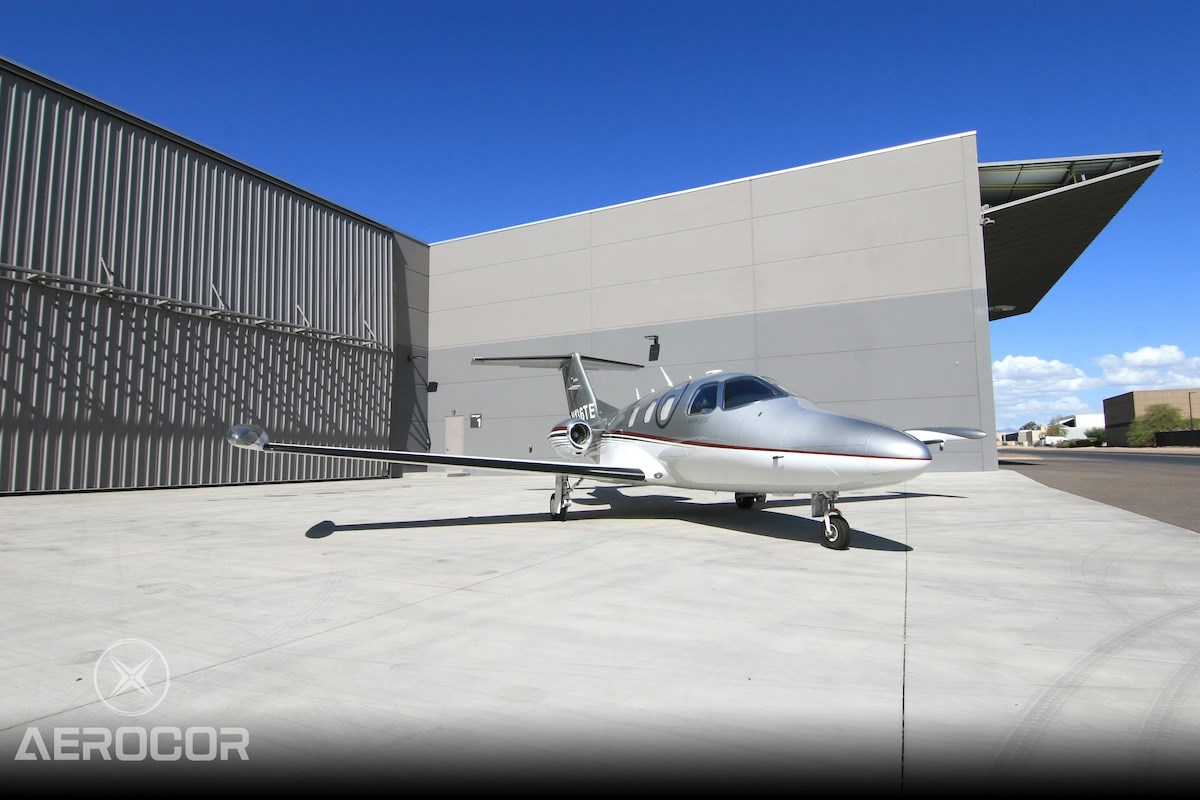

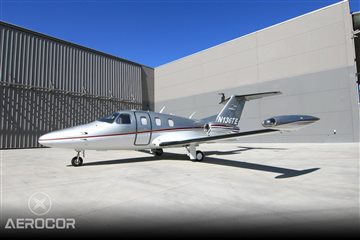

2015 Eclipse 500
| Overview | |
| Upgraded with IFMS v2.9 avionics and freshly overhauled engines, this stunning Eclipse offers full modern light jet capabilities. The low total engine hours offer a rare advantage for buyers looking to operate economically outside of a formal engine program. | |
| Price: | Contact Seller |
| Offered By: | AEROCOR |

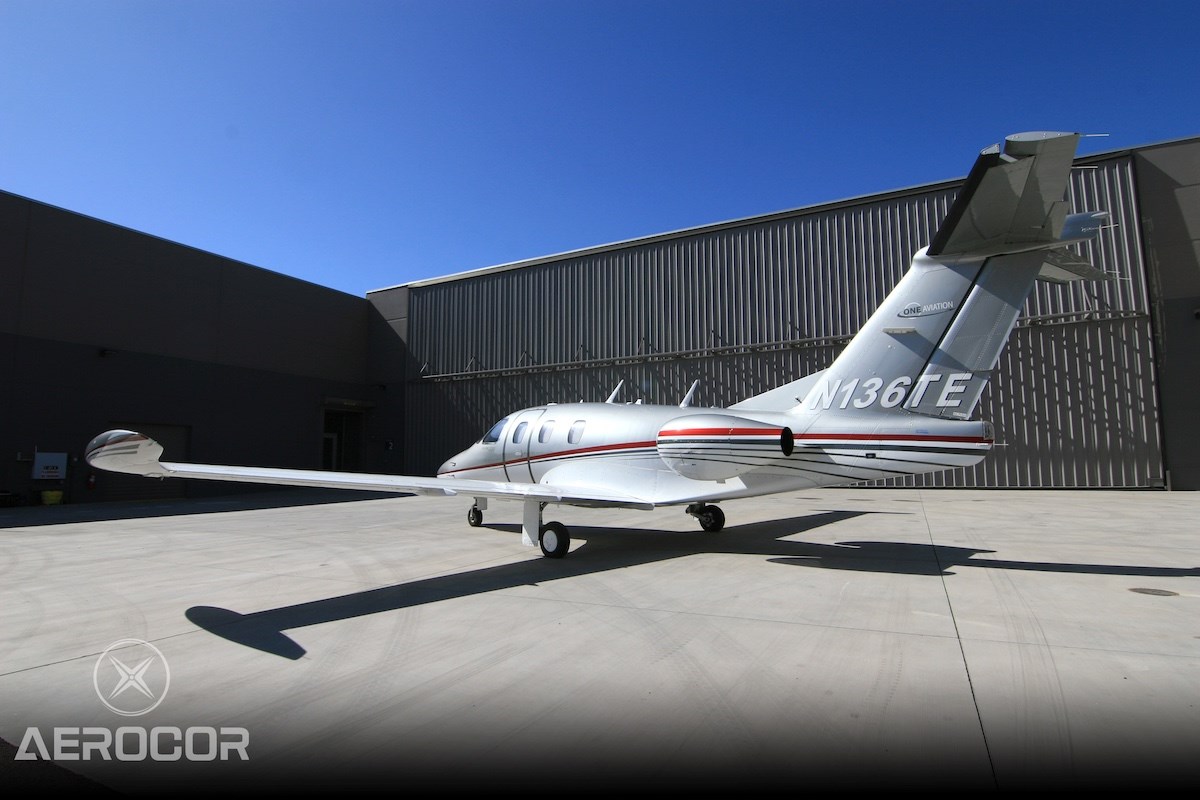

| Registration: | N136TE |
| S/N: | 000036 |
| Location: |
New York United States
|
| Days Active: | 2 days ago |
| Airframe | |
|
Total Time: 3,783.0 hours Total Cycles: 3,034 Times current as of 09/12/2026 Actual BEW: 3,794 lbs Actual ARM: 208.3 in Max Speed: 370 knots IFR Range: 1,125 NM Max Occupants: 6 Useful Load: 2,398 lbs Max Altitude: 41,000 ft |
|
| Total Time: | 3,783 Hours |
| Landing Cycles: | 3,034 |
| Number of Seats: | 6 |
| FIKI: | Yes |
| Pressurized: | Yes |
| Avionics | |
|

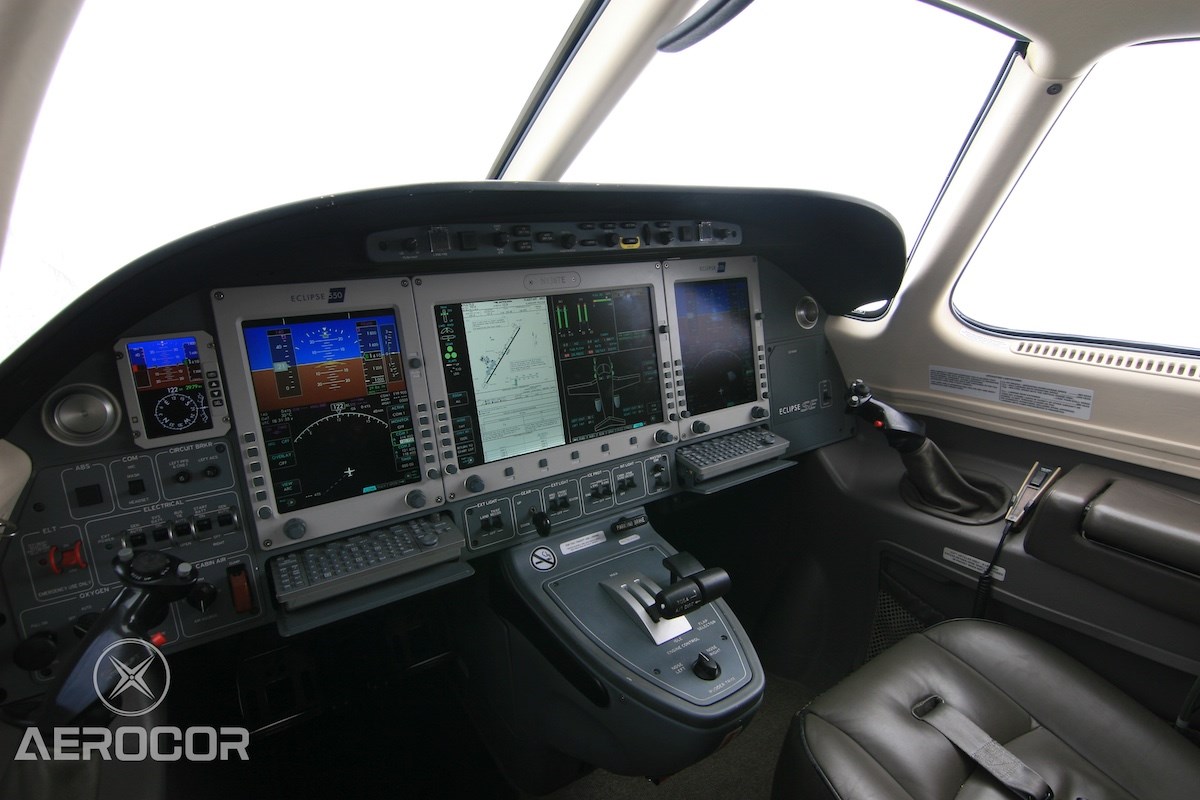

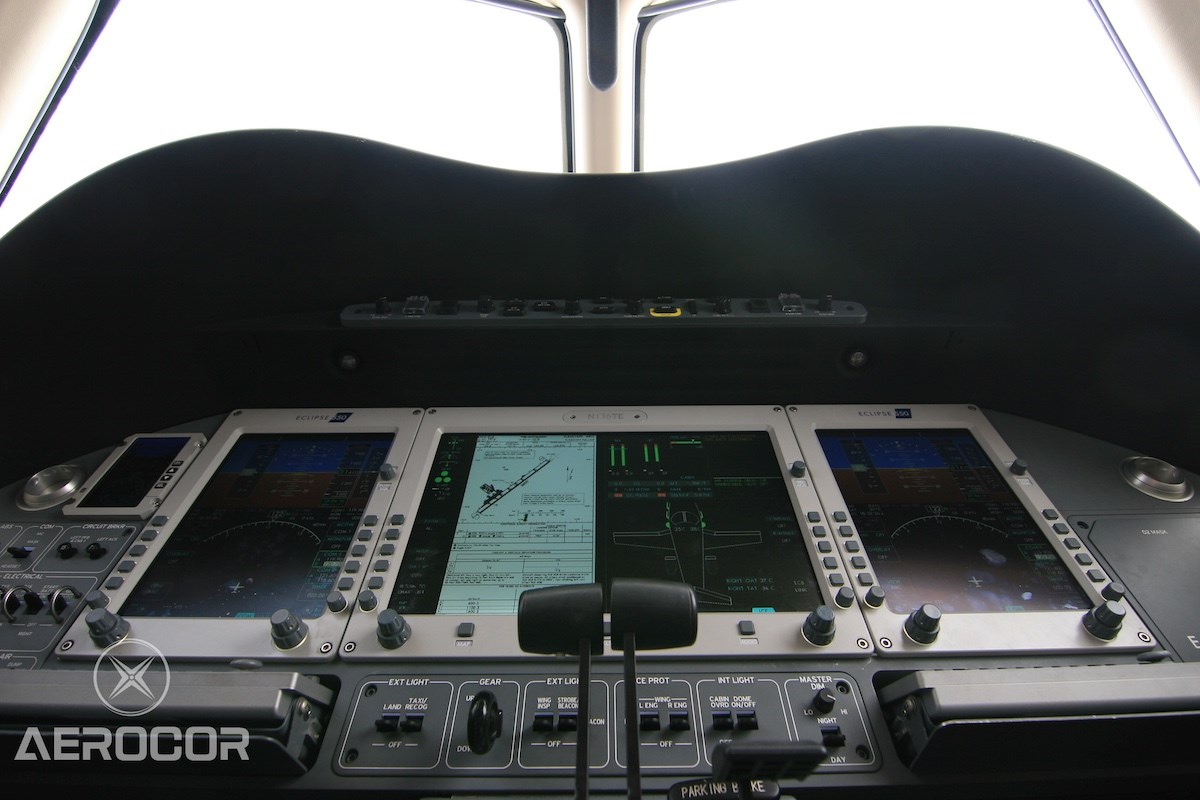

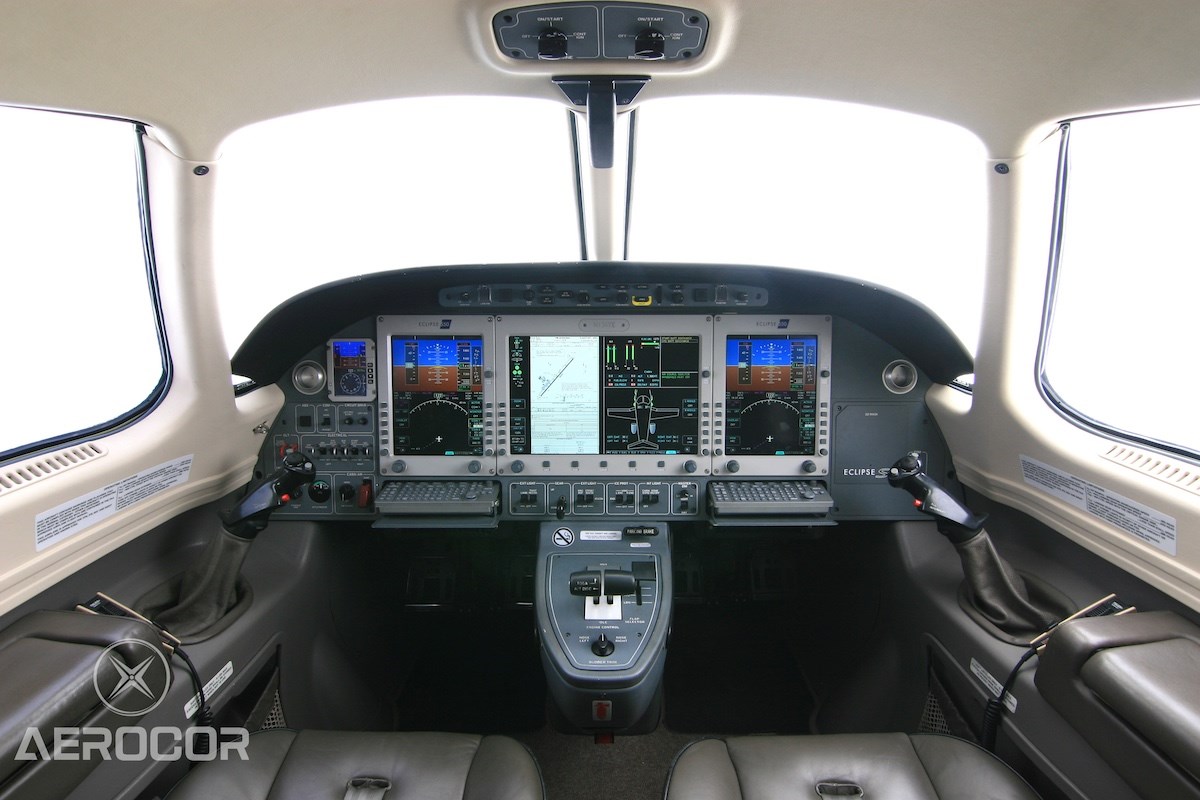

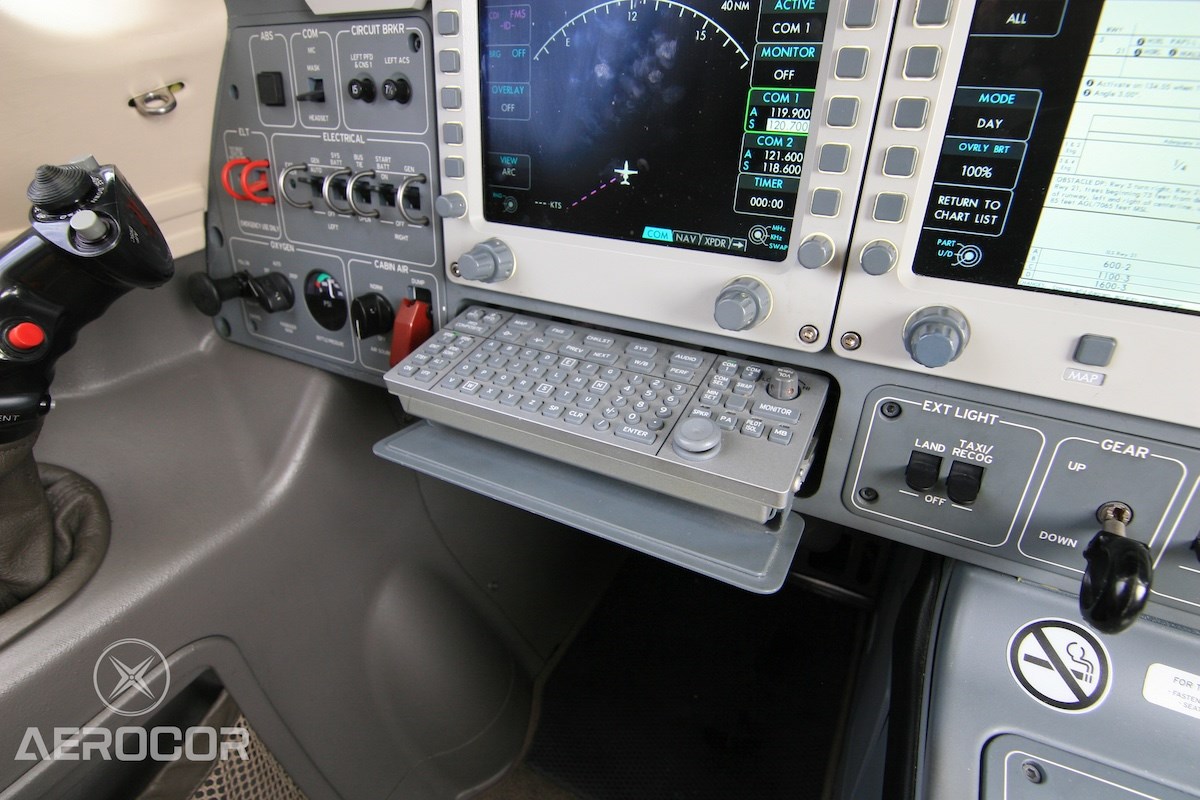

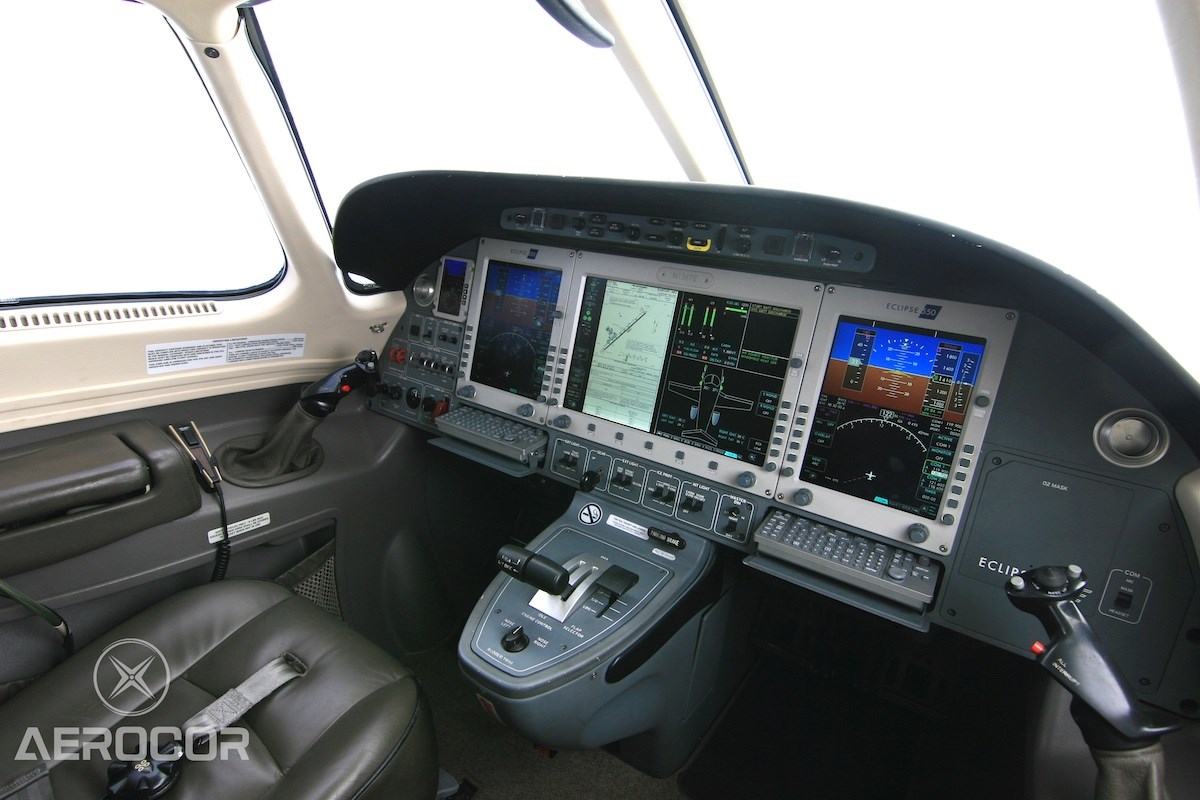

Integrated Flight Management System (IFMS) v2.9 by IS&S ("Plus" package) Two Primary Flight Displays (PFDs) with composite mode Dual (redundant) integrated Flight Management Systems (FMS) One 15" Multi-Function Display (MFD) with airliner-style synoptic displays of all aircraft systems Anti-Skid Braking System (ABS) ADS-B "Out" Auto-Throttles Standby Display Unit (SDU) Color Weather Radar XM Satellite Downlink Weather Geo-referenced Jeppesen Approach Plates with Full Height Display (Tall Charts) Fully coupled autopilot (including coupled LPV approaches) Airways and Victor Routes Flight Into Known Icing (FIKI) |
|
| Additional Equipment | |
|

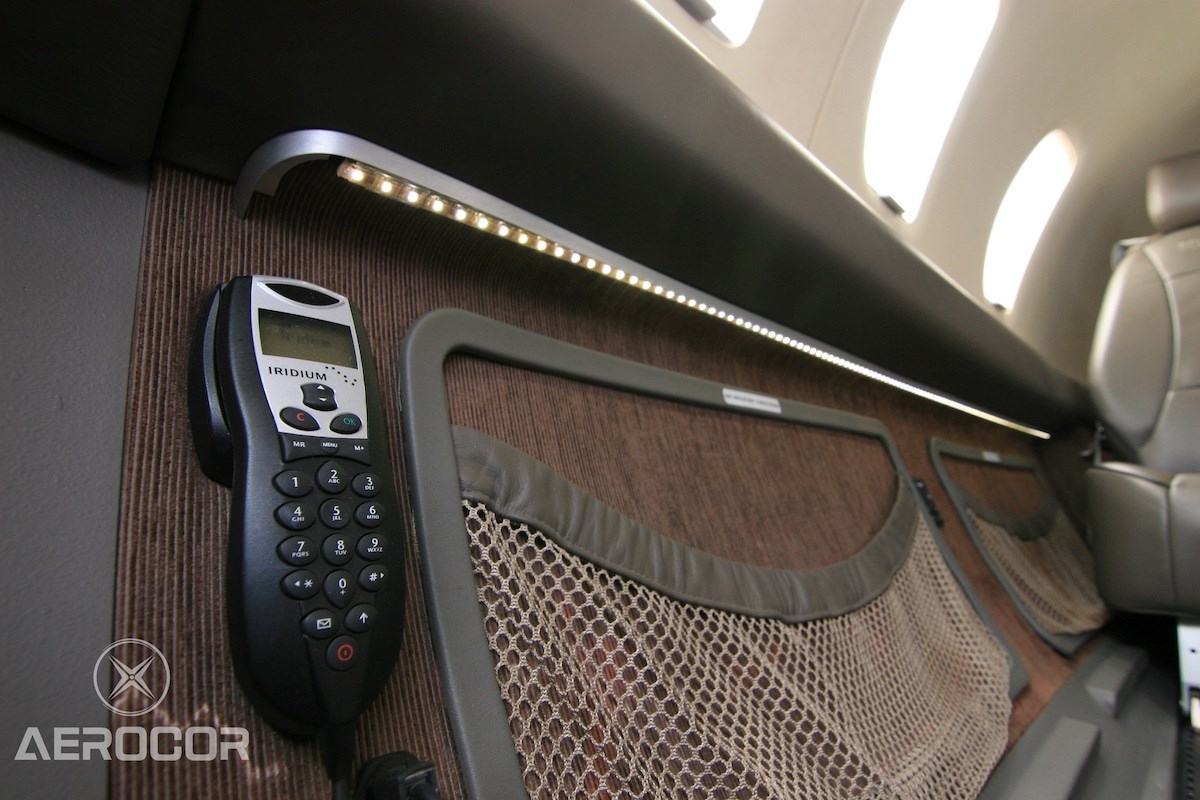

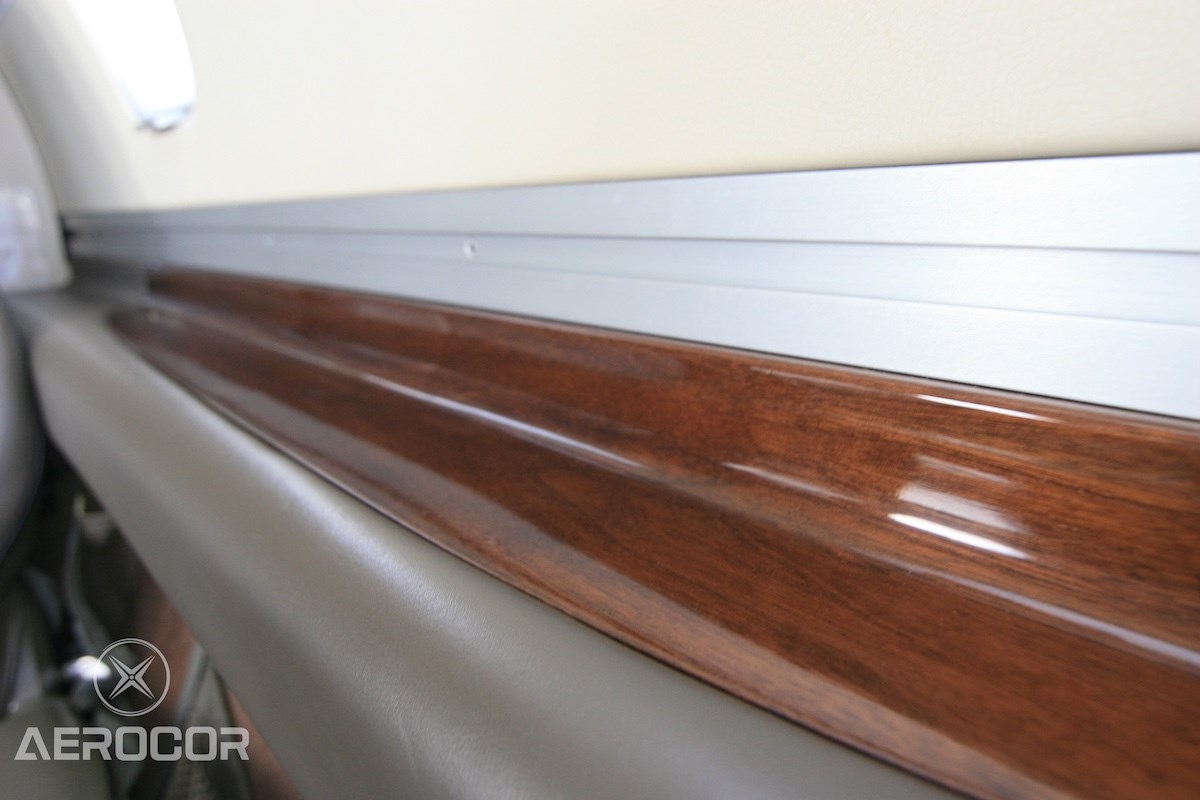

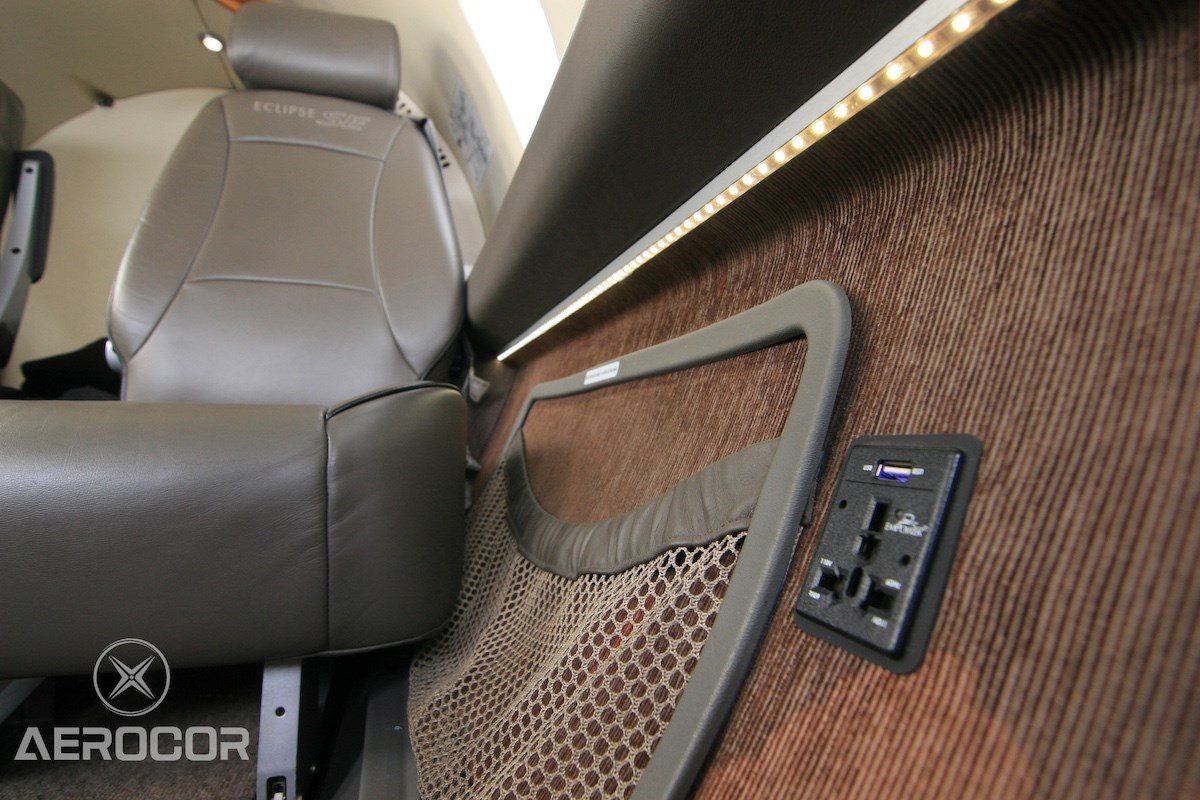

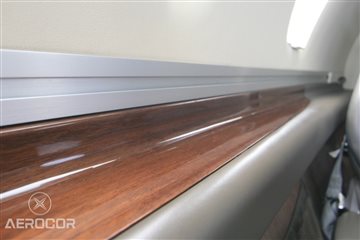

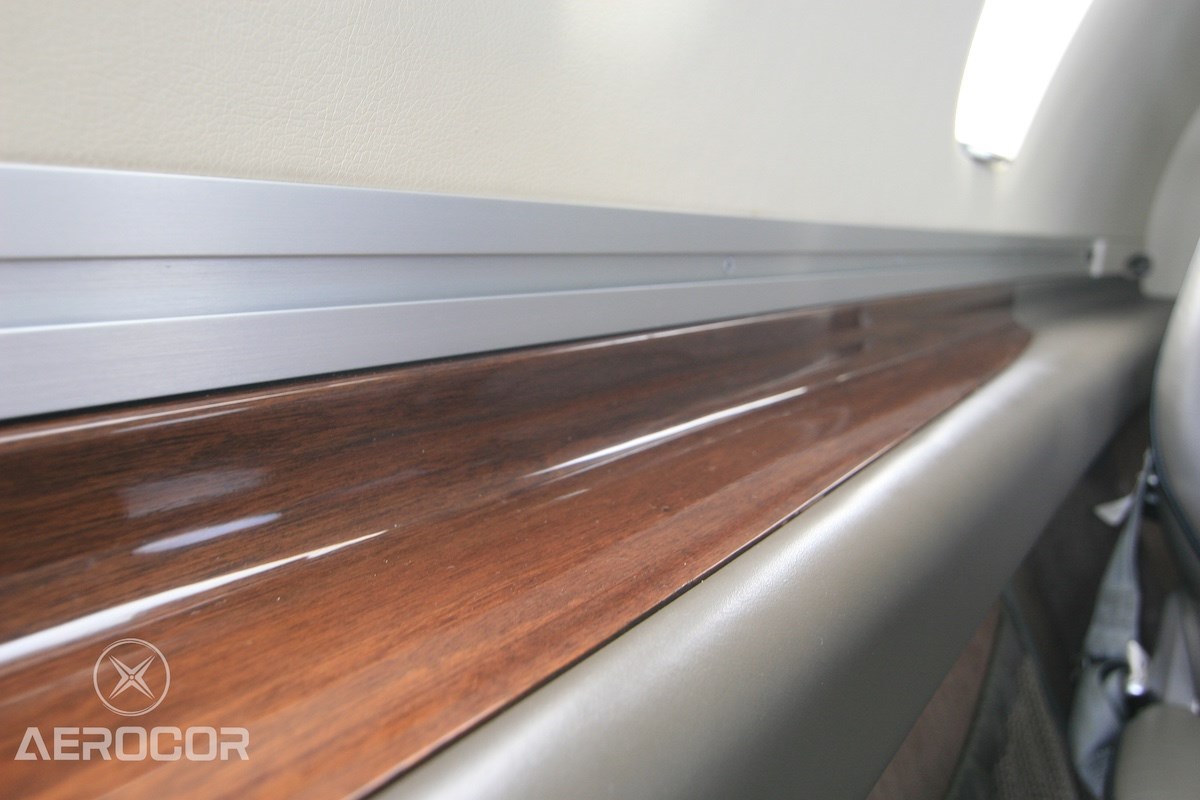

Upgraded "550 Style" Special Edition Interior from Hill Aero (installed 2015) - seamless headliner, side bolsters with custom wood inlay, updated seat cover templates, upgraded seating materials, upgraded fore and aft trim Optional "Skinny" seats Upgraded "550 style" window shades Special Edition paint scheme (installed 2015) Commercial Operations Package / Part 135 Package (40 cu ft oxygen tank, second IFMS keyboard, second hand-held microphone, second quick-don oxygen mask, three AC power outlets, five passenger briefing cards) Skywatch HP TAS (Traffic Alert System) Class B TAWS (Terrain Awareness and Warning System) Installation Kit Synthetic Vision Upgraded Color Weather Radar (RDR-2000) Tamagawa Landing Gear Actuators Tamagawa Flap Actuators Tamagawa Control Trim Actuators PPG Glass Windshields ADS-B "Out" Aux Pitot Probe Heaters / Pitot Flange Heaters Iridium Satellite Telephone - includes short burst data capability Anti-Lock Brakes (ABS) Auto-Throttle System Enhanced Auto-Throttle (allows operation of auto-throttle with landing gear down) Adjustable sun-visor rail system Upgraded combustion liners installed (certified for flight to 41,000 ft) Bias Ply Tires, Cargo Net, Pitot Covers, Engine Covers Upgraded / newer style wing tip lights (position / strobe lights) Polished Window Frames Stormscope / Strike-finder Com Jack for Bose Headset (NCH Connector) Static System Drain update USB Power Outlets Interior Seat Arm Rests RAS Icephobic "patch" removal STC RAS Upgraded 24 Ah System Battery RAS Upgraded High Capacity 34 Ah Start Battery RAS Battery Bus Contactor Mod / Battery Parasitic Drain Elimination Kit RAS 12 month battery cap check STC (extends battery inspection from 6 months to 12 months) RAS Cold Weather Start Improvement STC (battery starts down to -15C/5F OAT) RAS "Commercial Parts STC" (batteries may be serviced / refurbished using commonly available parts) RAS Flap Position LVDT Upgrade |
|
| Engines | |
|
(2) Pratt & Whitney PW610F-A (900 lbs thrust each) TBO: 3,500 hours Engine Serials: Left = PCE-LA0036, Right = PCE-LA0049 Total Time: 297.6 SOH (L/R) Total Cycles: 188 SOH (L/R) |
|
| Engine 1 Hours: | 297.6 SMOH |
| Engine 2 Hours: | 297.6 SMOH |
| Interior & Exterior | |
|

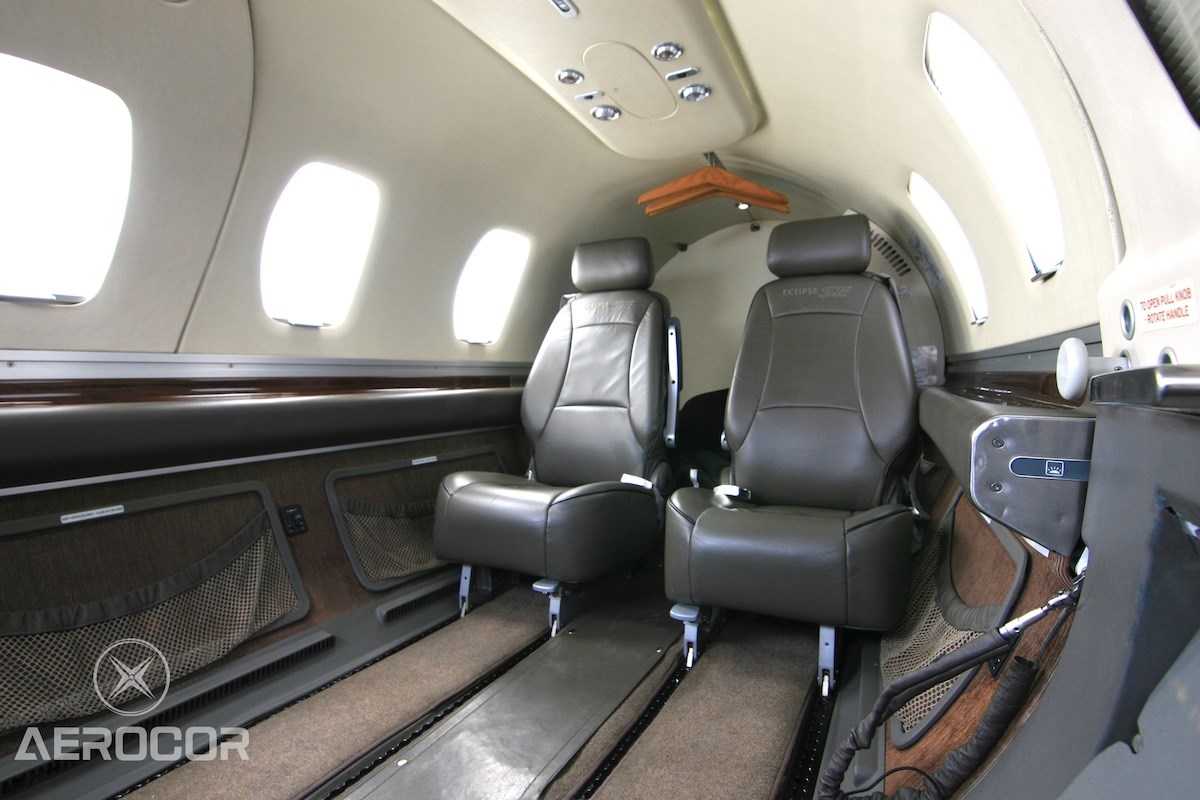

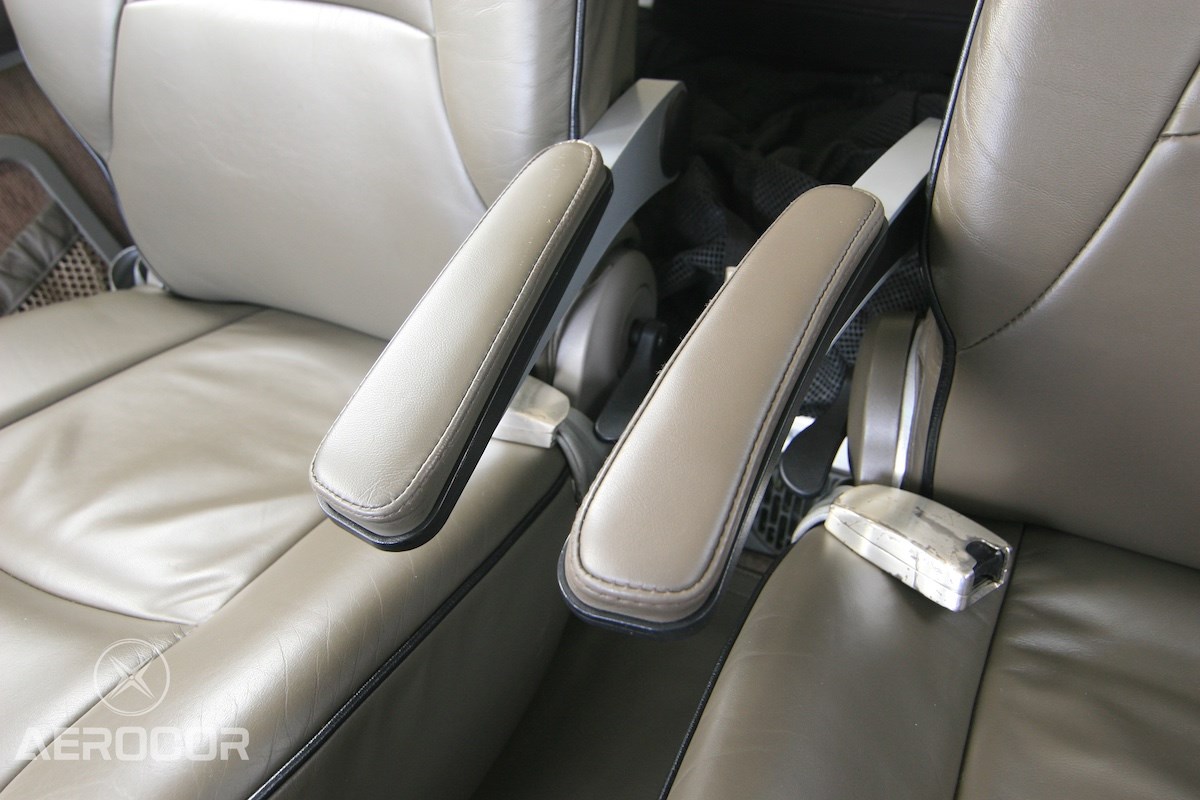

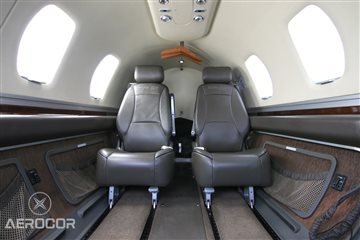

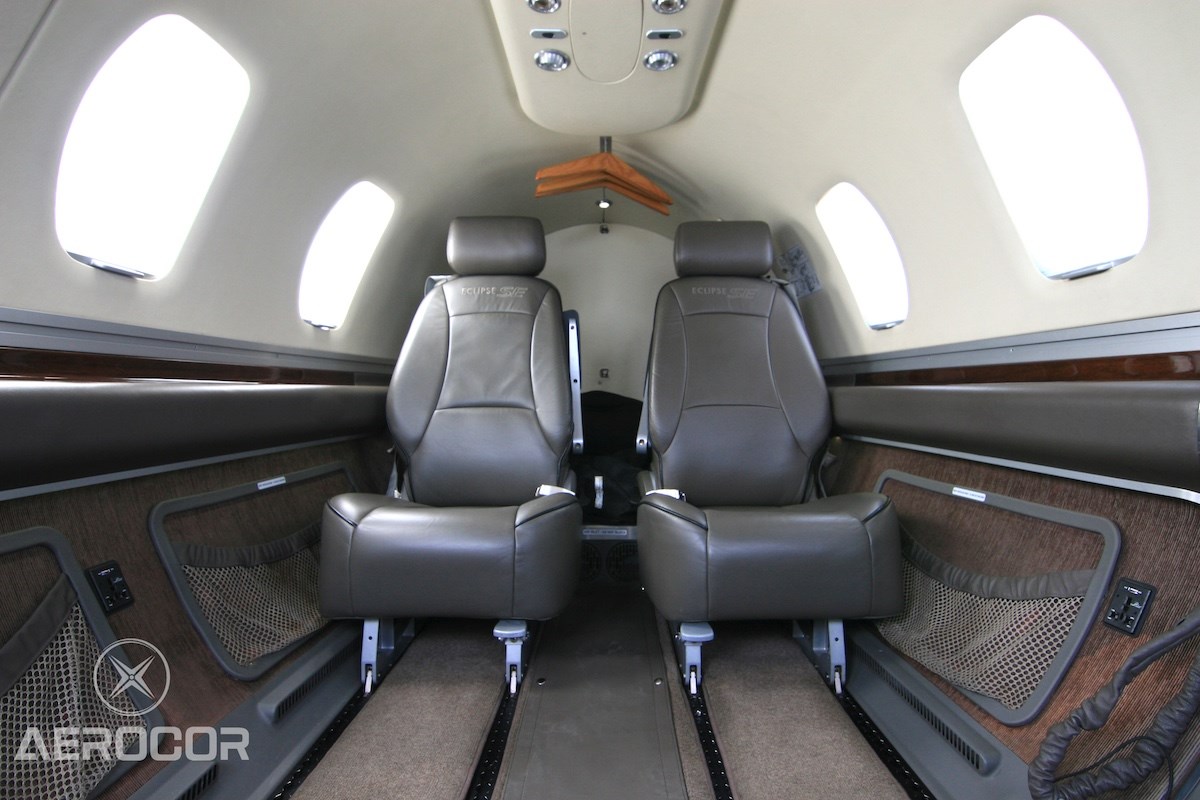

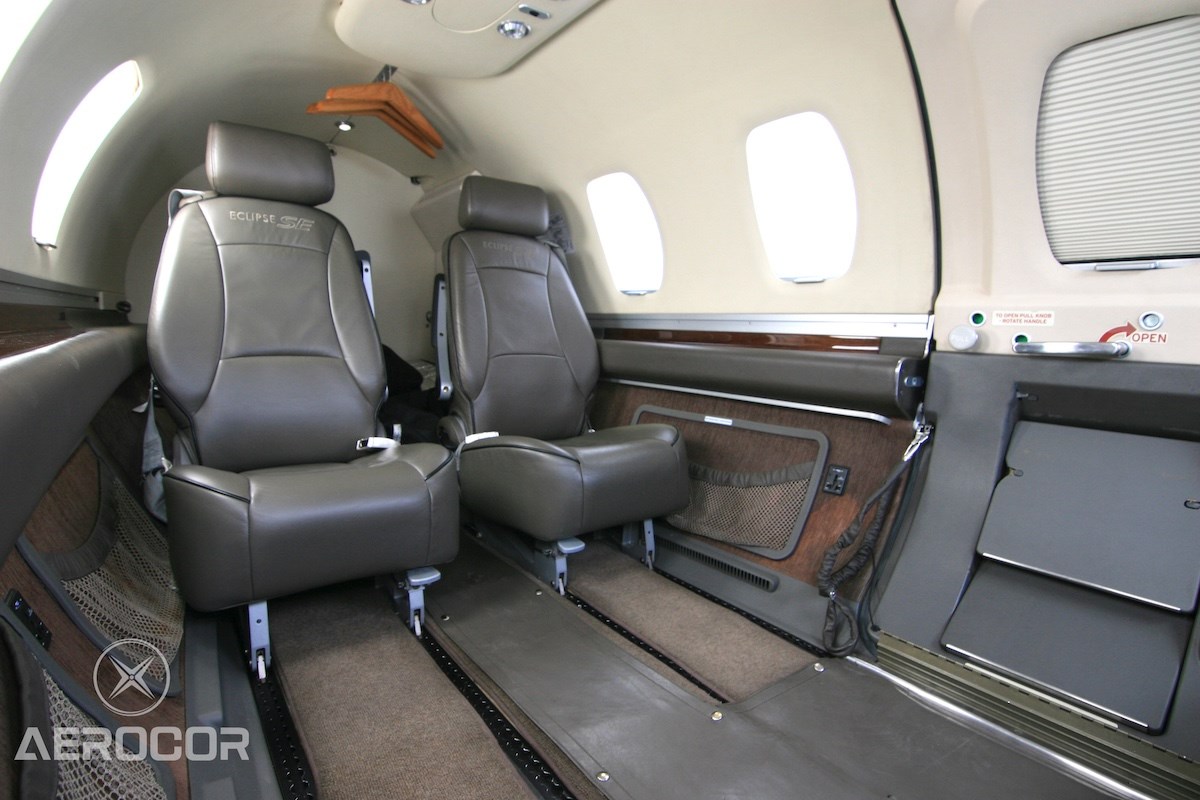

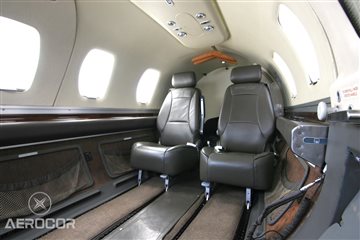

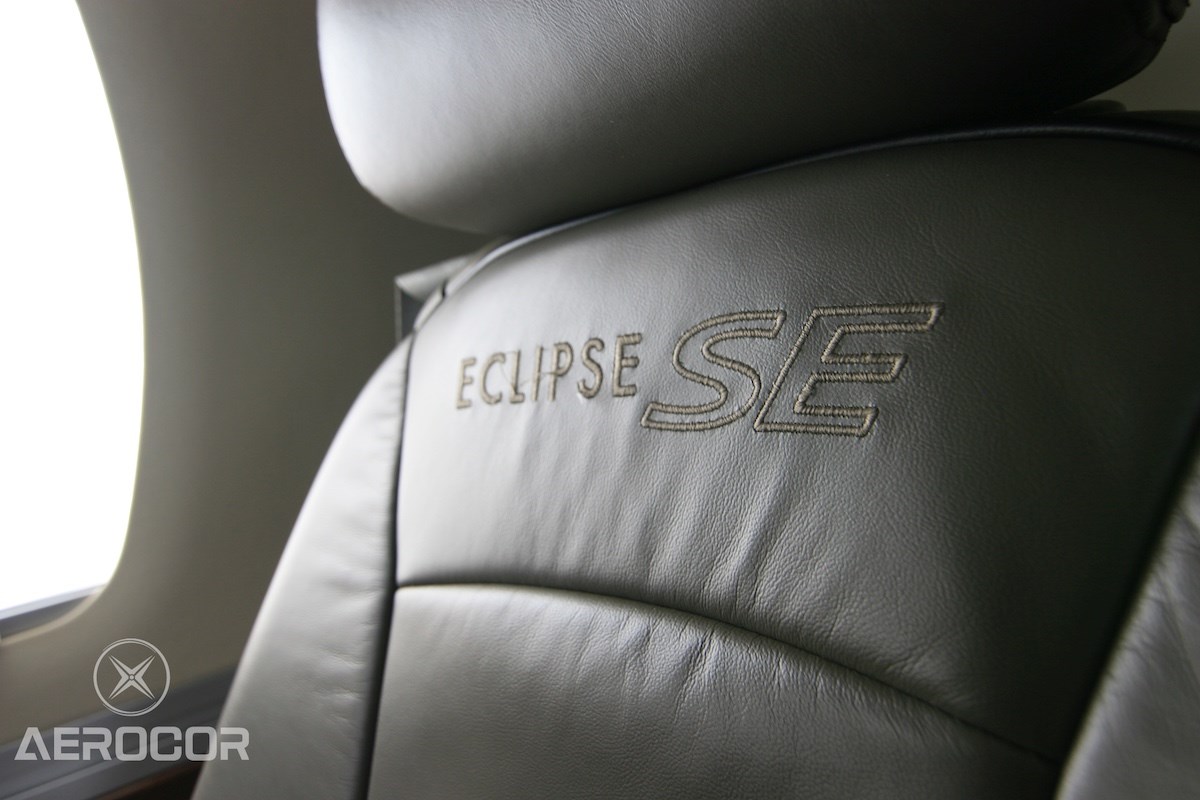

Factory "Special Edition" Interior Configured with five interior seats |
|
| Year Interior: | 2015 |

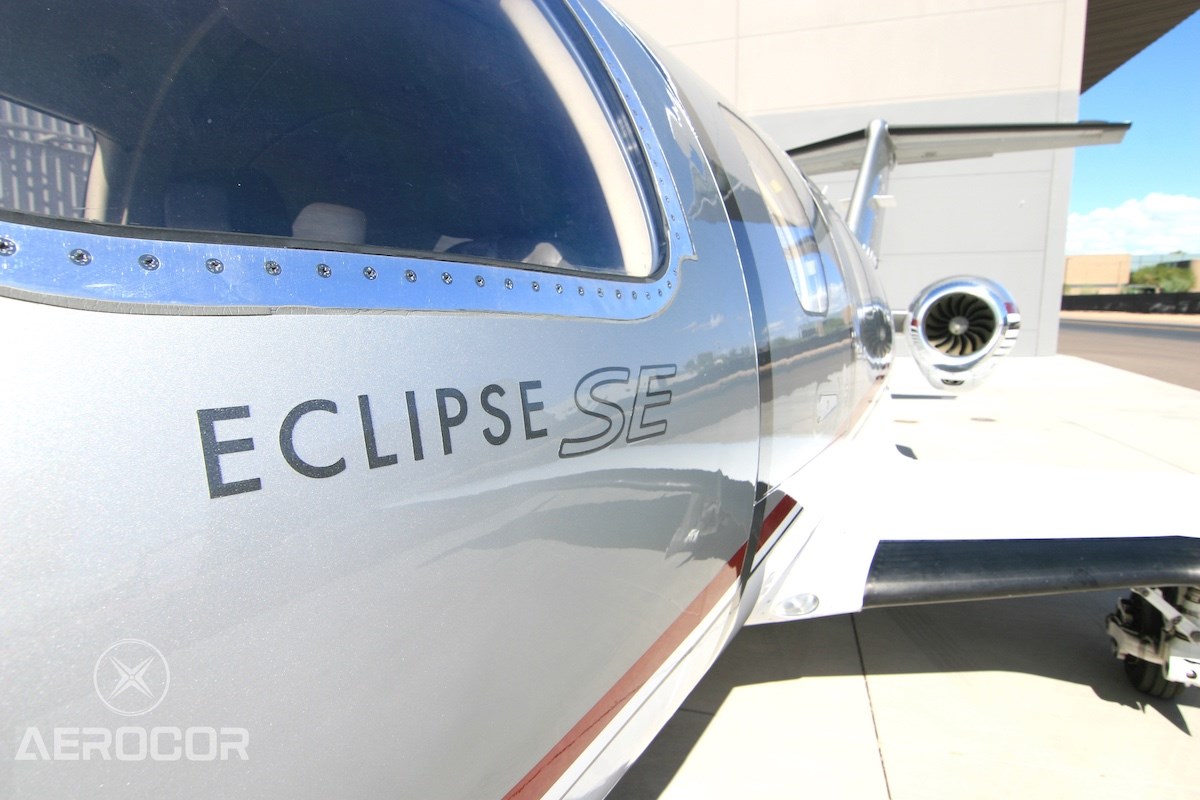

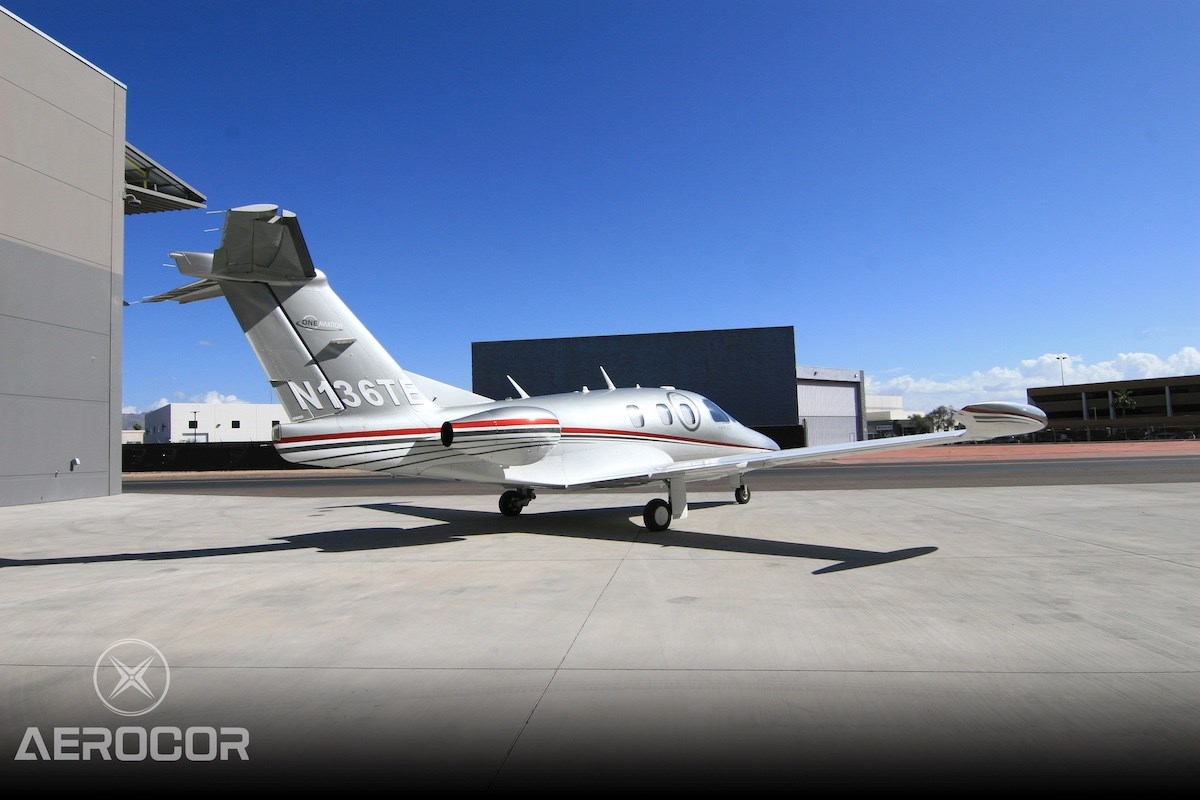

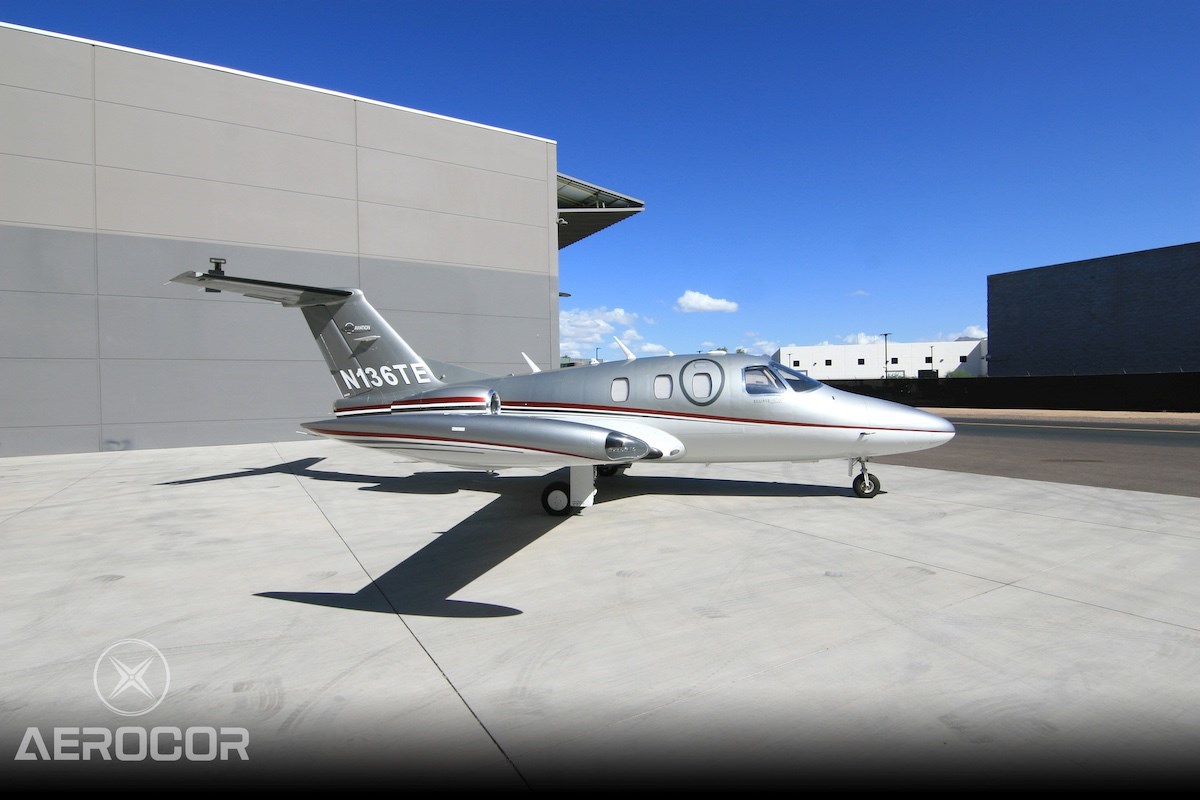

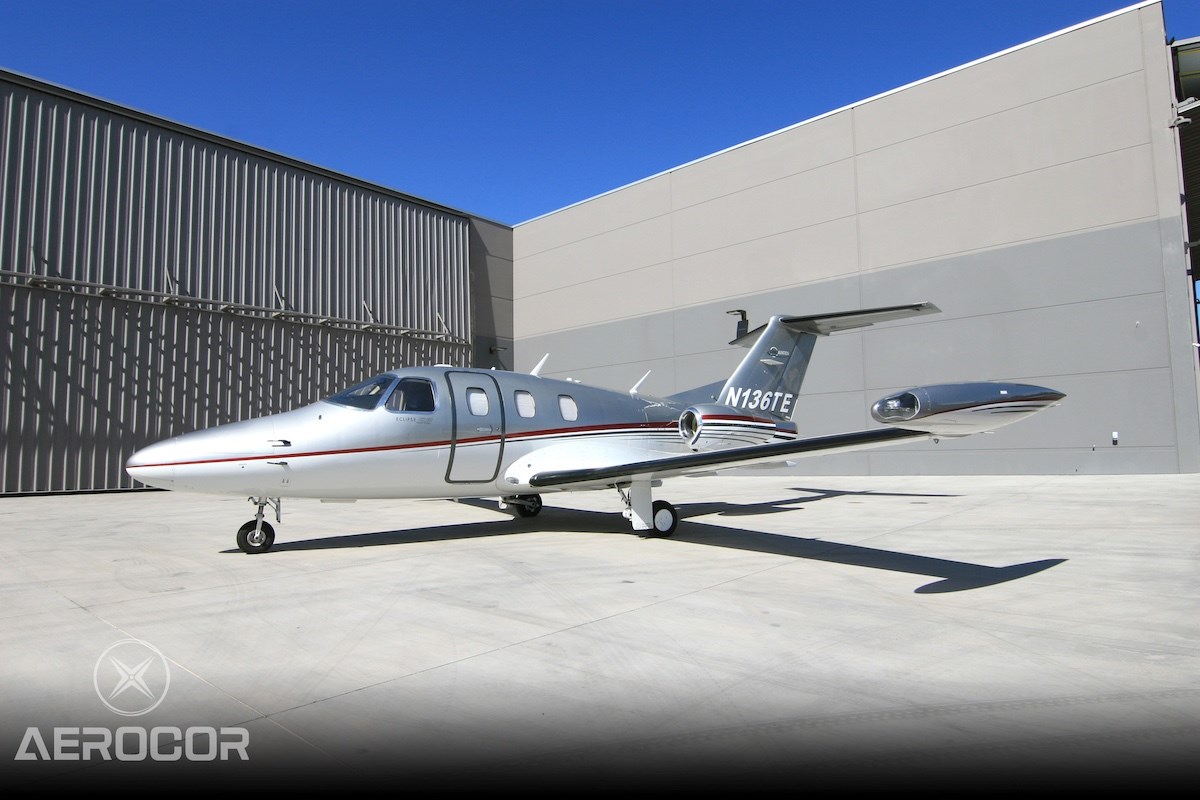

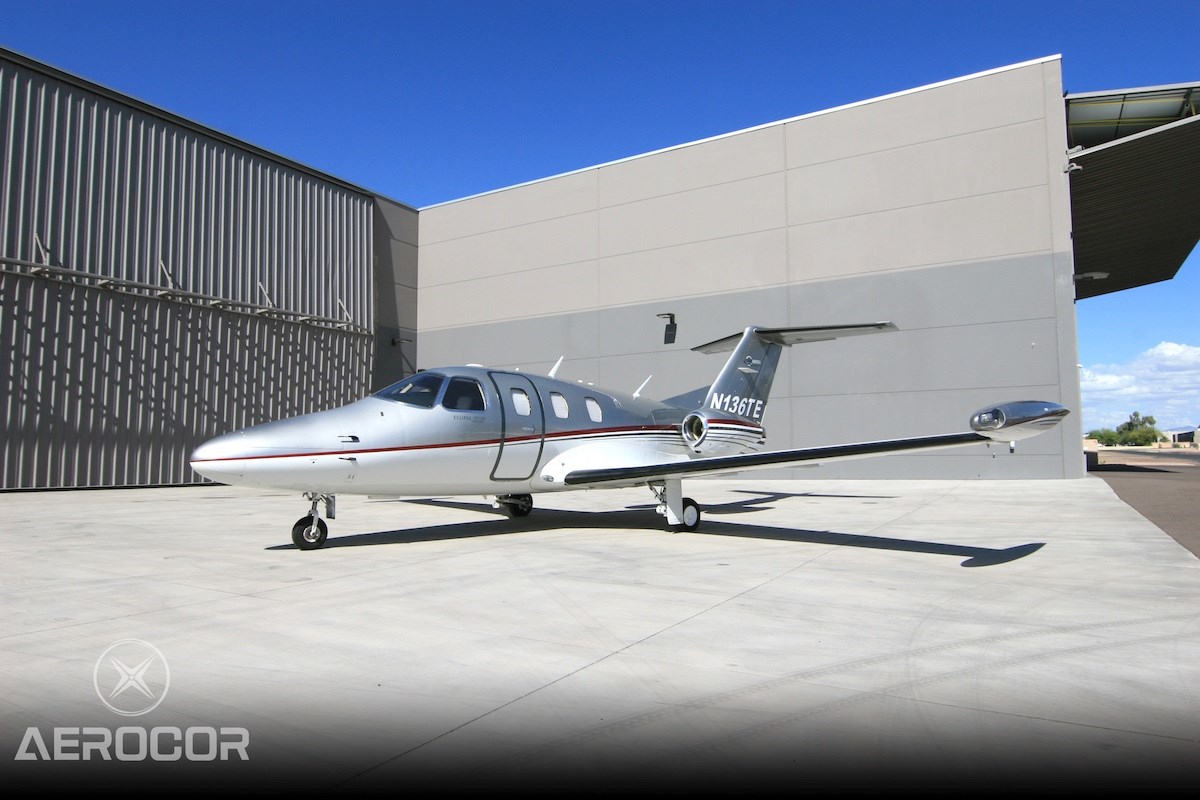

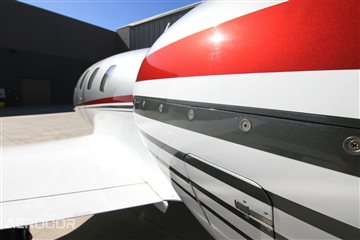

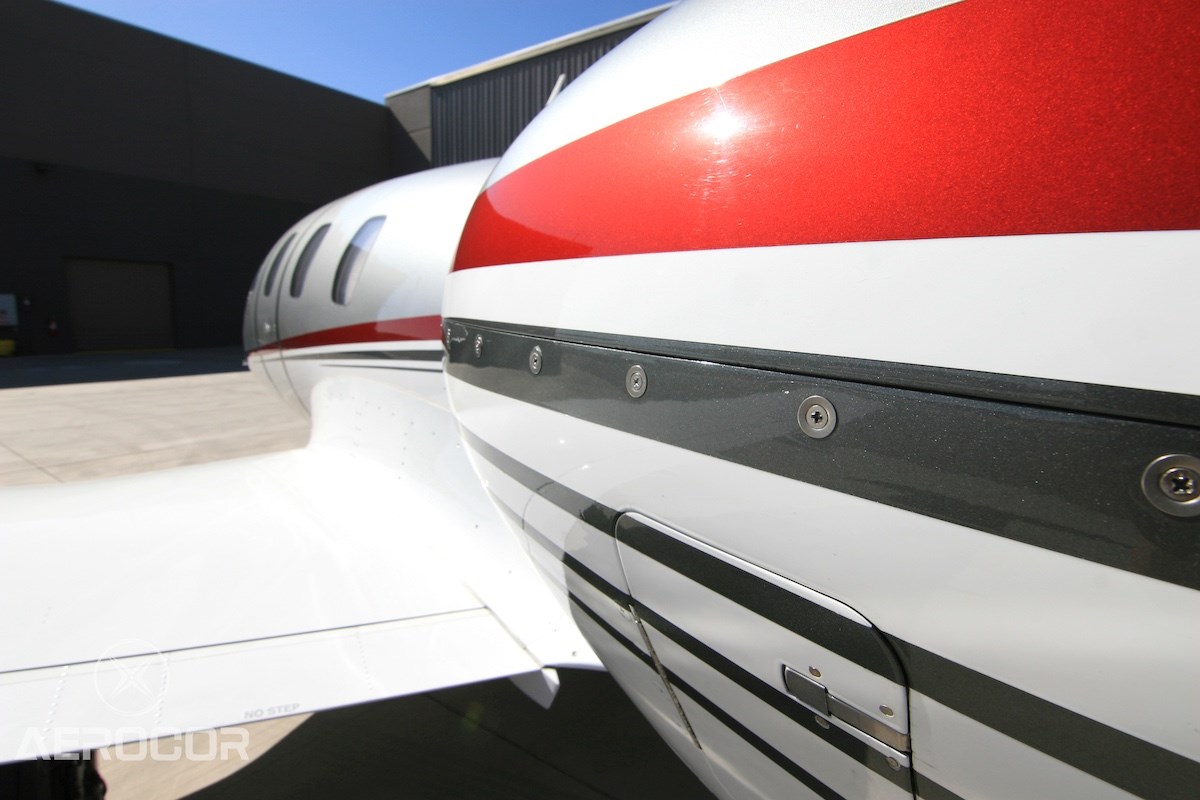

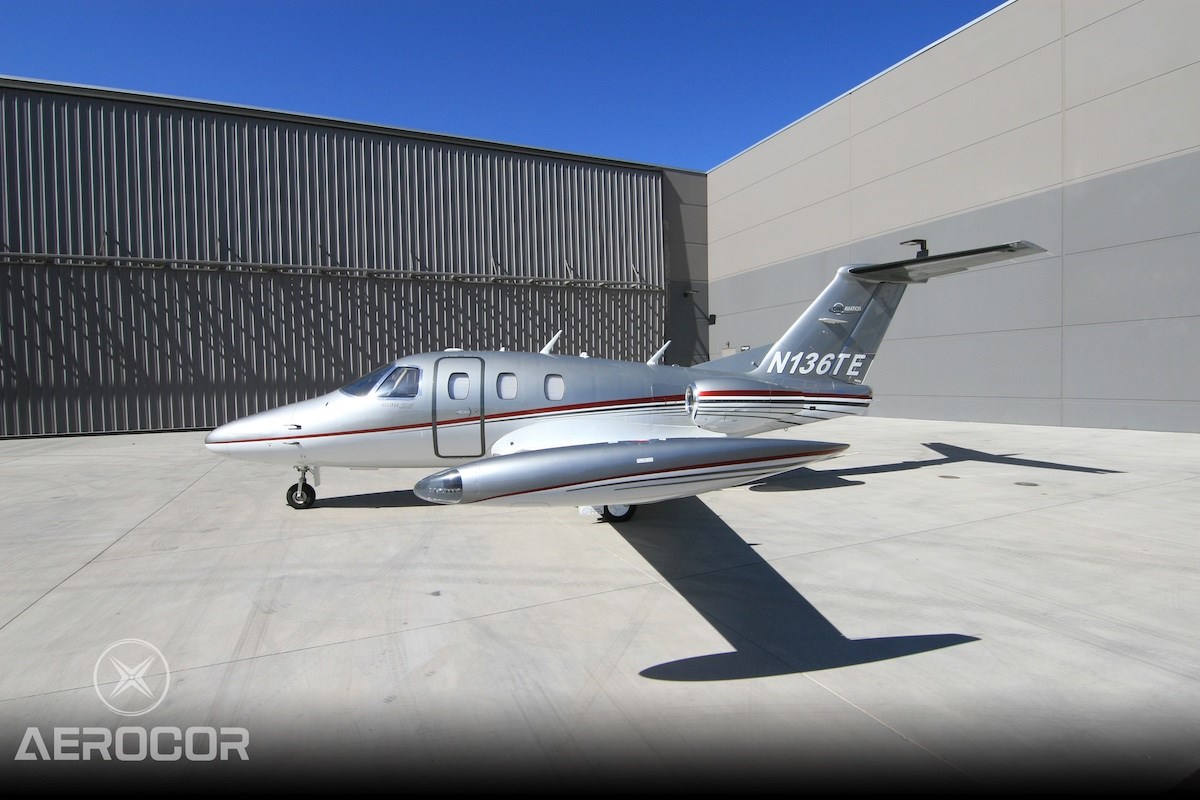

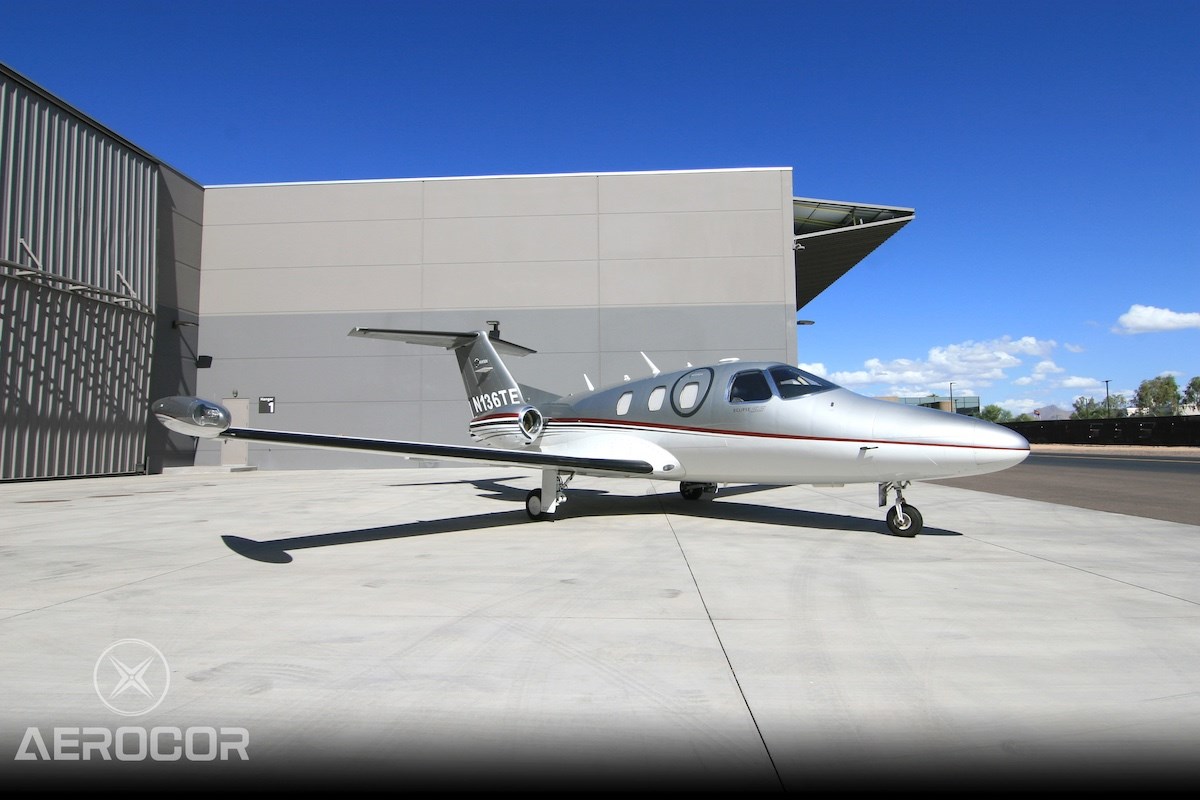

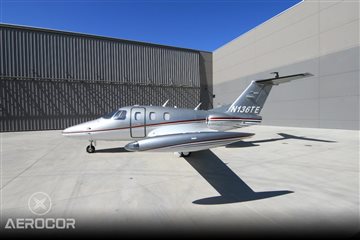

| "Corona" scheme with Burgundy and Grey stripes | |
| Year Painted: | 2015 |
| Other Info | |
|
Inspection Status: Complies with all Mandatory Service Bulletins 24 month / 300 hr airframe inspection done 1/26 at 3,724.5 hrs (due 1/28 or 4,024.5 hrs) 48 month / 1,200 hr airframe inspection done 1/26 at 3,724.5 hrs (due 1/30 or 4,924.5 hrs) 48 month fuel bay inspection completed 1/16/24 (next due 1/16/28) New style PhostrEx Fire Extinguisher Canisters Brakes recently replaced (80.9 hours total time, replaced at 3,702.1 hours) Starter Generators recently overhauled (total time 252.1 hours, replaced at 3,530.9 hrs) |
|
