2019 Gulfstream G500
| Overview | |
|

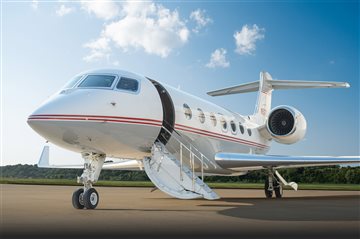

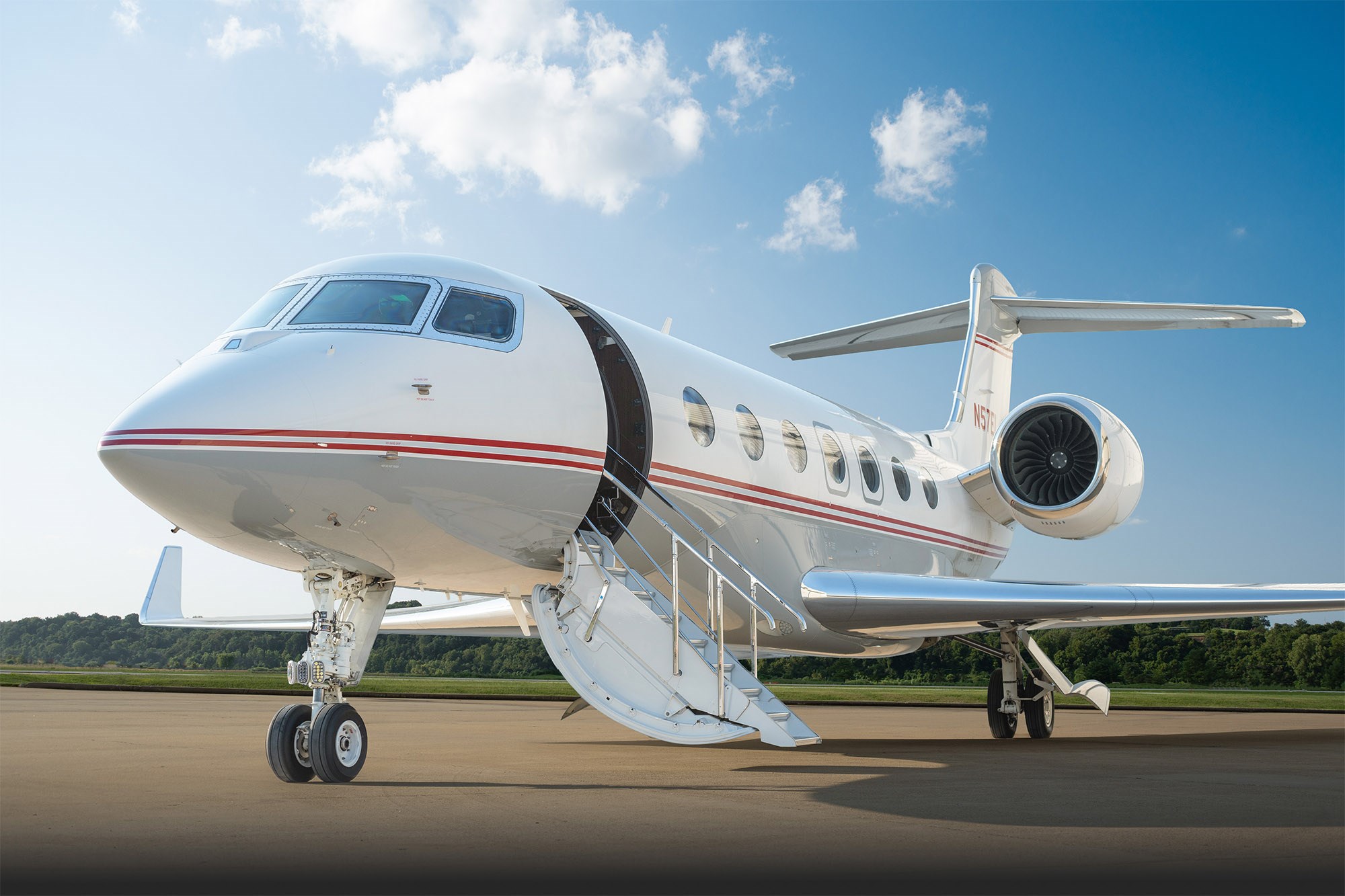

2019 Gulfstream G500, serial number 72027. 1,382 Hours Total Time and 750 Landings. Aircraft enrolled on Gulfstream CMP Maintenance Tracking Program; engines enrolled on P&WC ESP PurePower. Executive thirteen (13) passenger forward galley configuration, interior completed and exterior painted March 2019 at Gulfstream Savannah, GA. Gulfstream Symmetry Flight Deck avionics suite with Head-Up Display, Enhanced Vision System, Synthetic Vision and Active Control Sidesticks. Aircraft is located at St. Louis Lambert International Airport (STL) in St. Louis, MO, USA. |
|
| Price: | Contact Seller |
| Offered By: | Leading Edge Aviation Solutions |
| S/N: | 72027 |
| Home Airport: | STL (Airnav) |
| Location: |
St. Louis, Missouri United States
|
| Days Active: | Today |
| Airframe | |
|
1,382 Hours Total Time 750 Landings Basic Empty Weight: 45,945 lbs. Basic Operating Weight: 47,745 lbs. |
|
| Total Time: | 1,382 Hours |
| Landing Cycles: | 750 |
| Number of Seats: | 13 |
| Pressurized: | Yes |
| Avionics | |
|

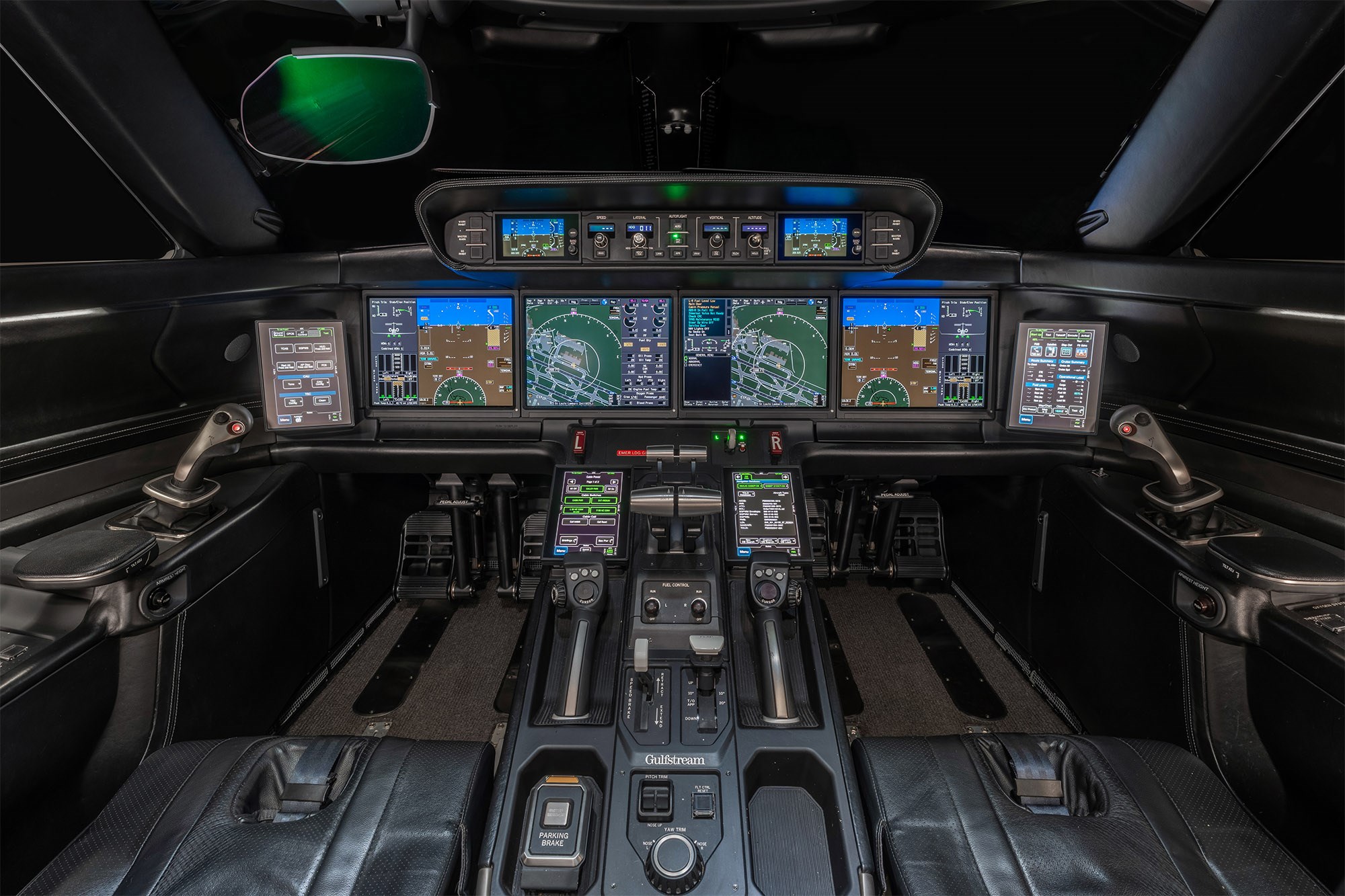

Gulfstream Symmetry Flight Deck Avionics Suite Triple Flight Management System (FMS) Triple Inertial Reference System (IRS) Triple VHF Nav/Comm Dual 24-Channel GPS w/ WAAS/LPV 3-D Color Weather Radar Synthetic Vision - PFD (SV-PFD) Head-Up Display (HUD) Enhanced Vision System (EVS) FANS 1/A+ (CPDLC / ADS-C) ADS-B Out (DO-260B) TCAS II Version 7.1 EGPWS Autothrottles & Autobrakes Dual Digital Radio Altimeters Cockpit Voice Recorder (CVR) Flight Data Recorder System (FDR) Active Control Sidesticks (ACS) Part 135 Operating Regulations Package |
|
| Additional Equipment | |
|
Major Aircraft Service Changes, Enhancements & Upgrades: ASC-001D: Take-Off and Landing Data (TOLD) Database Installation ASC-002A: XM Weather System Installation ASC-003A: Aircraft Health and Trend Monitoring System (AHTMS) ASC-004A: Cockpit Printer - Installation ASC-005A: Airport Access - 74,900 Pound Weight Limitation ASC-009A: WXR Predictive Windshear (PWS) Activation ASC-010A: Runway Awareness Advisory System (RAAS) Activation ASC-011A: Situational Awareness Package ASC-012A: ARINC Direct Datalink Service Provider Configuration ASC-017: Engine Electronic Control - Software Update 5.4.1.2 ASC-018A: Electrical Main Entry Door (EMED) Wiring Harness ASC-021A: Symmetry Flight Deck Avionics Update ASC-022B: Engine Electronic Controller 5.4.2.4 Software Update ASC-023A: Pressure Refuel Tubing - Bonding Improvement ASC-024: Flight Deck Interior, Overhead Trim Ring - Installation ASC-025D: Fuel Quantity Monitoring System Software Update ASC-026A: Wing Splice BL0, Seal Dam - Installation ASC-027: Main Entrance Door, External Door Open Push-Button - Bonding Installation ASC-029A: Environmental Control System Software Update ASC-030A: Remote Access to Security System Video ASC-032: Flap Yoke - Replacement ASC-033C: Electric Main Entry Door (EMED) Bottom Folding Step Mechanism - Modification ASC-035: Placard, Electric Main Entry Door (EMED) Delayed Closing - Installation ASC-036A: Electric Main Entry Door (EMED) Delayed Closing - Wiring Modification ASC-037A: Remote Electronics Units (REU) Software Label 36 - Update ASC-038A: EBMCE Hardware/Firmware MOD 18 - Update ASC-039A: Flight Control Computer (FCC) Software Update V9.5 ASC-041A: Data Concentration Network (DCN) Software V10.10.12 Update ASC-046A: Airstair Bottom Folding Step Damage Mitigation - Modification ASC-048: Flight Deck Pedestal Liners - Installation ASC-051: Auxiliary Hydraulic Pump Power Cable Bracket - Installation ASC-056: APU Exhaust Duct Extension - Installation ASC-064A: Overwing Grounding Receptacle Sealant Application ASC-066 Part 2: Main Landing Gear Door and Fairing Door Stop Bolt - Modification ASC-901B: Symmetry Flight Deck Master Operating System Software Update |
|
| Engines | |
|
Pratt & Whitney Canada (P&WC) PW814GA On Condition and Enrolled on P&WC ESP PurePower Left (#1) S/N: PCE-GA0094 - 1,284 Total Hours / 702 Total Cycles Right (#2) S/N: PCE-GA0095 - 1,284 Total Hours / 702 Total Cycles Note: Aircraft to be delivered with Loaner Engines installed. The above original engines are currently at Pratt & Whitney Canada for Front Hub and Mid Turbine Frame (MTF) upgrades in compliance with Service Bulletin PW800-72-80277. APU: Honeywell HGT400G, S/N P-137, 1,220 Hours |
|
| Engine 1 Hours: | 1,284 SNEW |
| Engine 2 Hours: | 1,284 SNEW |
| Interior & Exterior | |
|

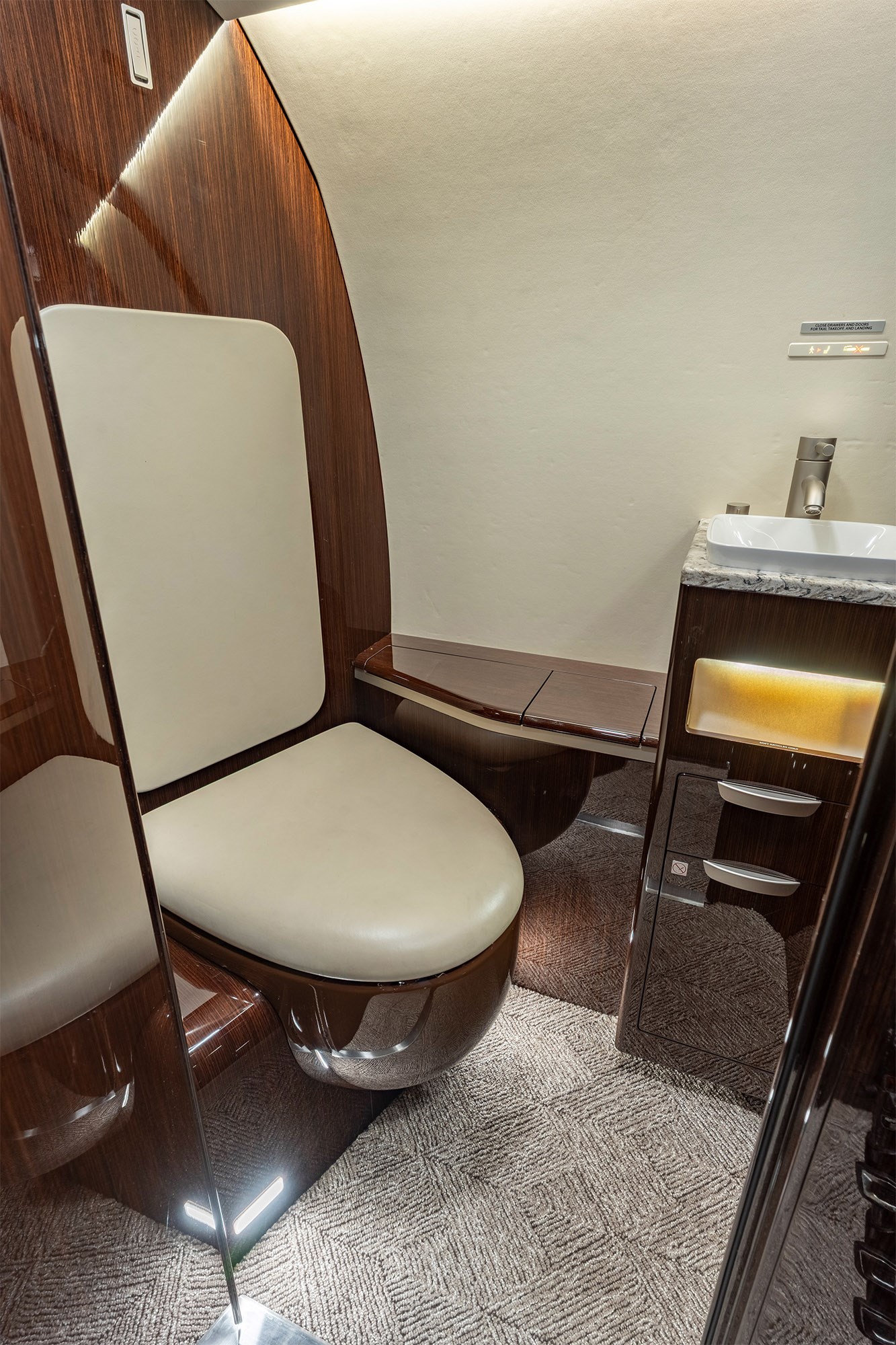

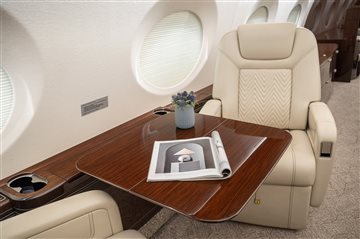

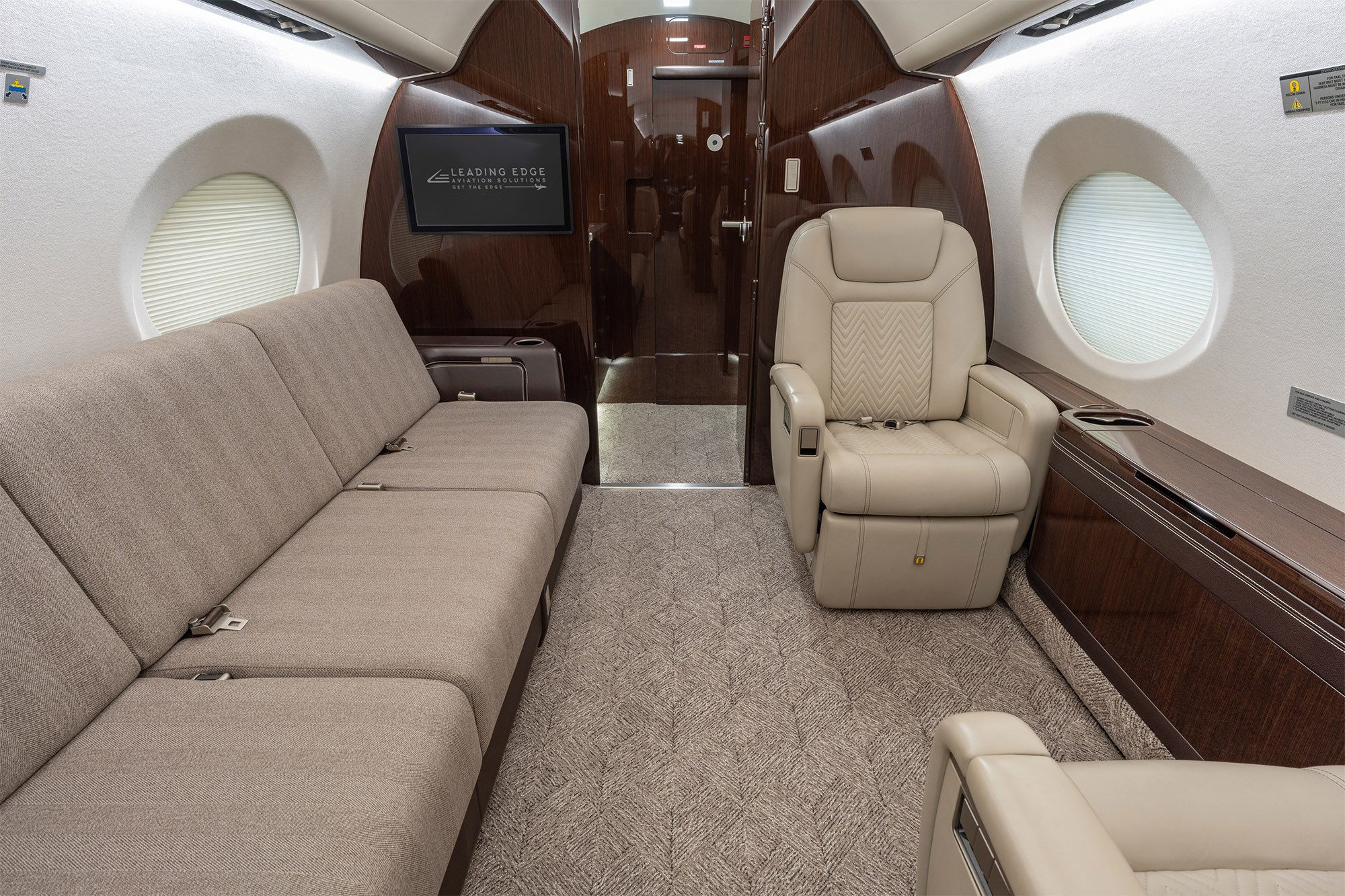

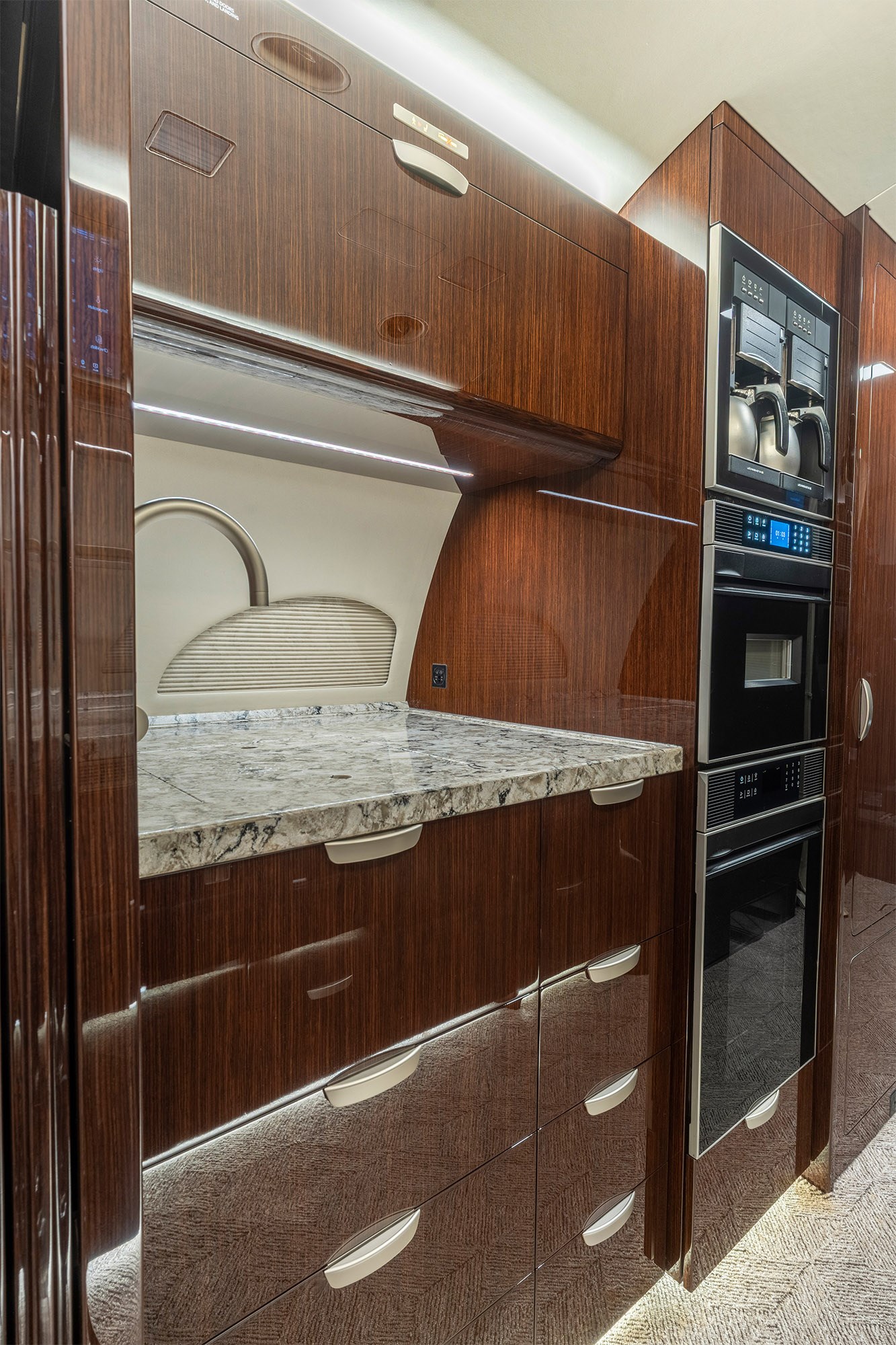

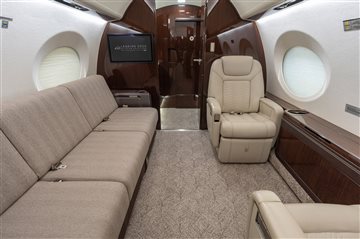

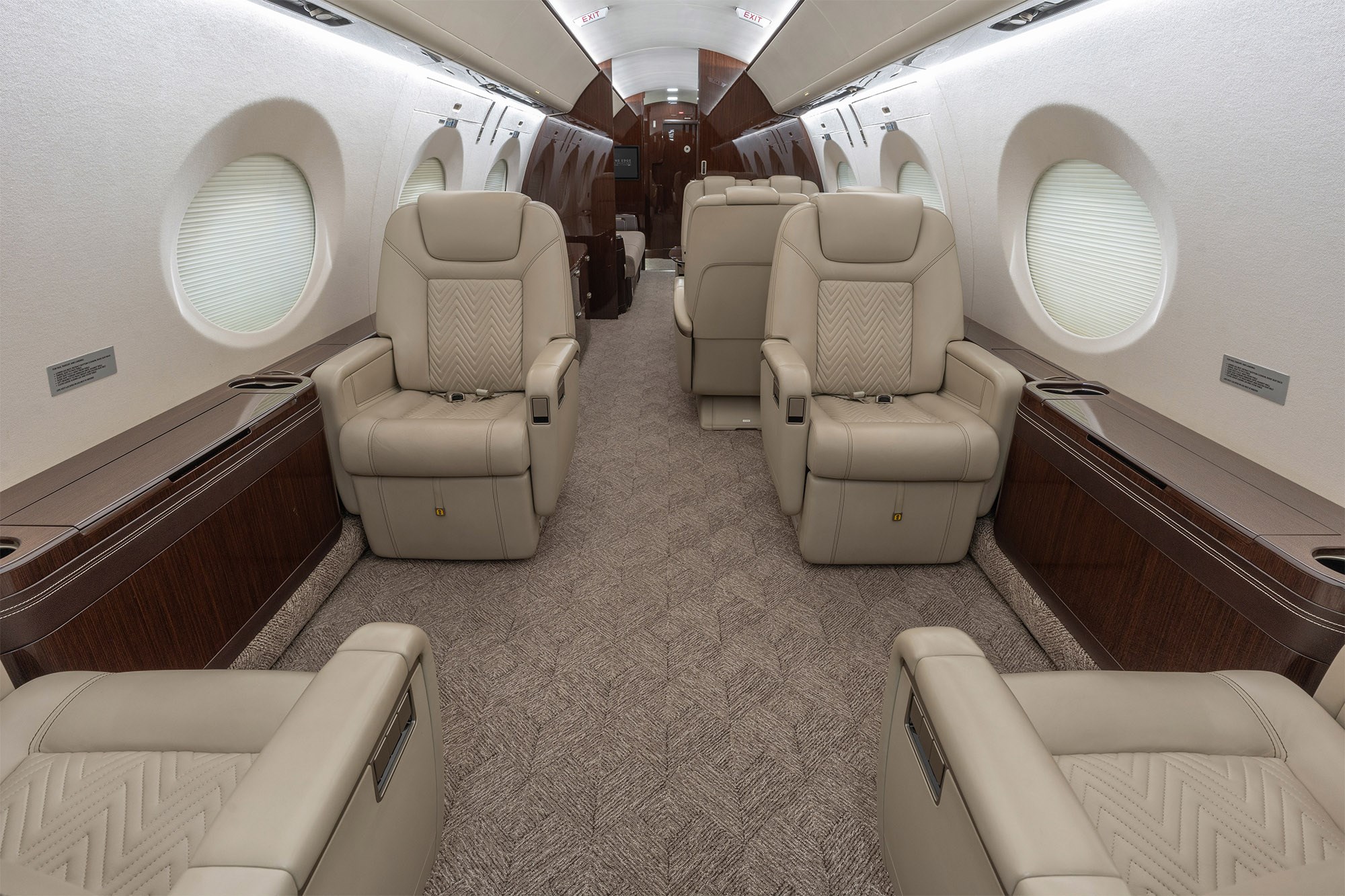

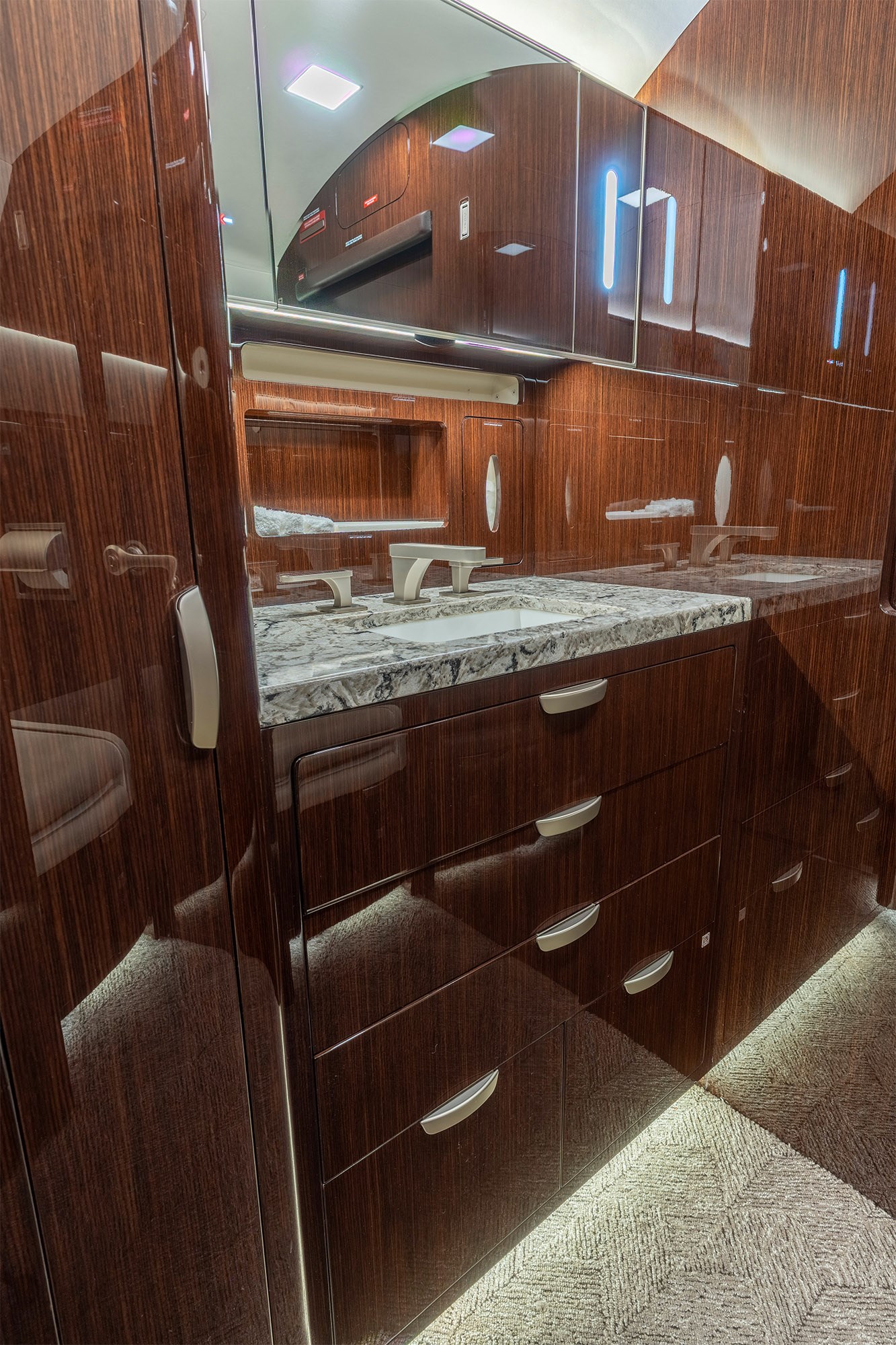

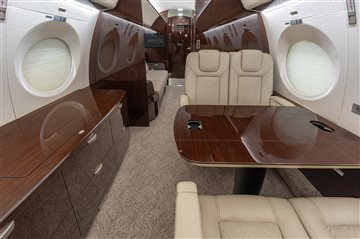

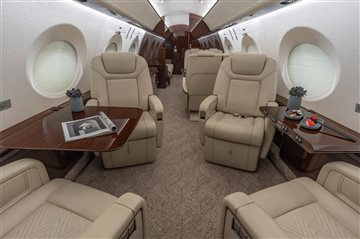

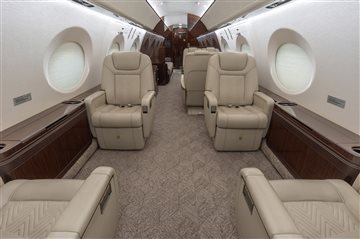

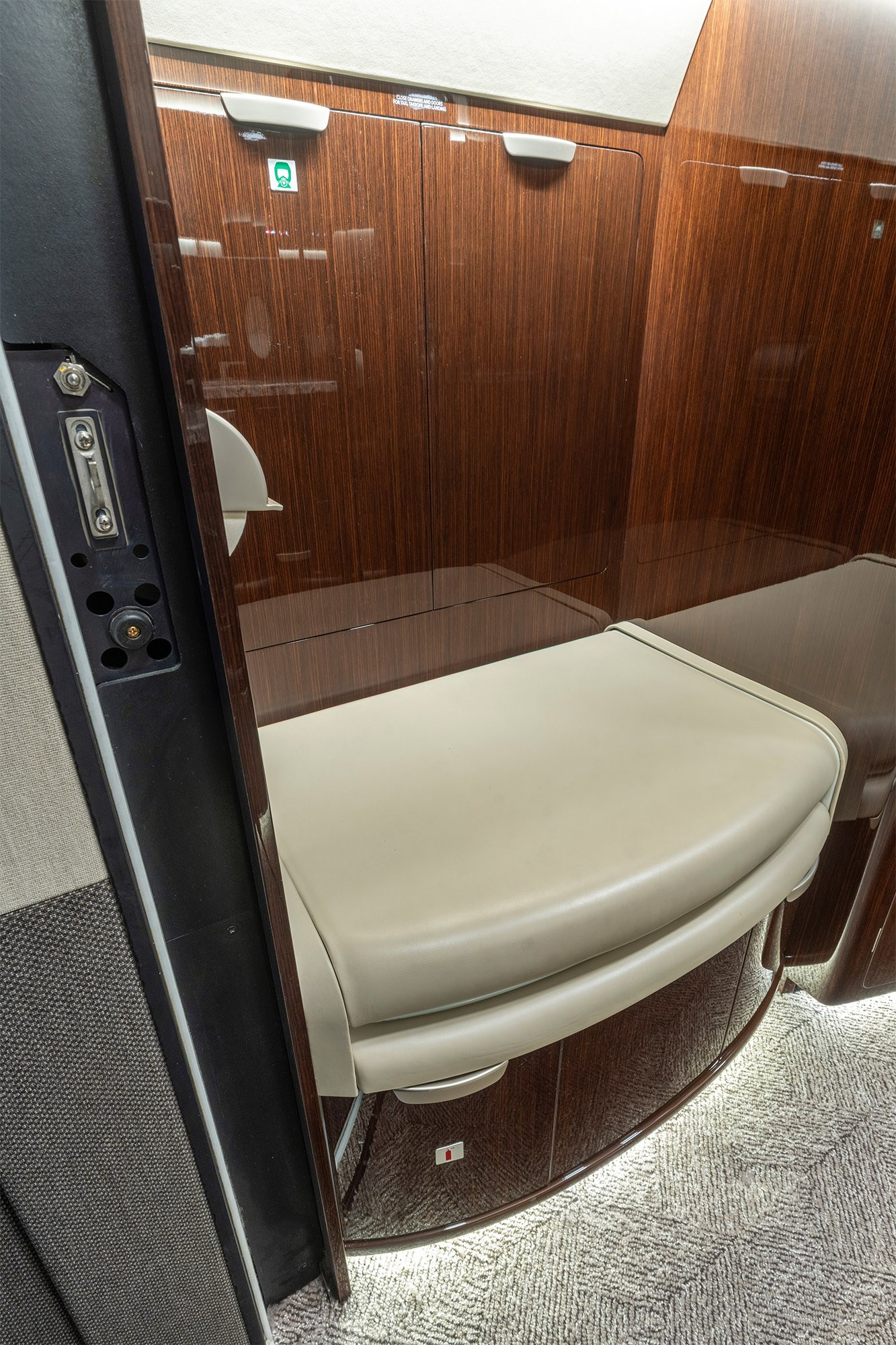

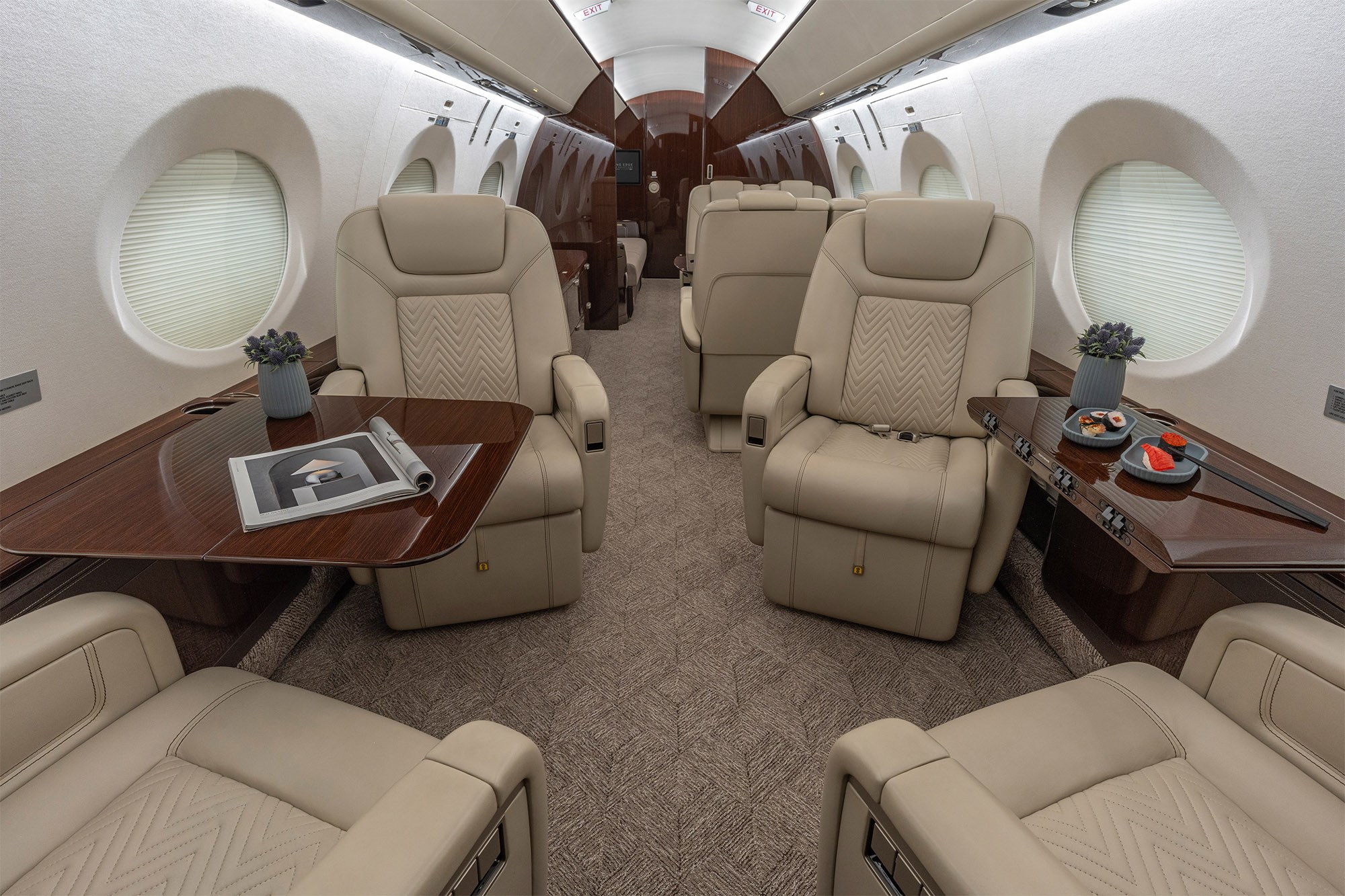

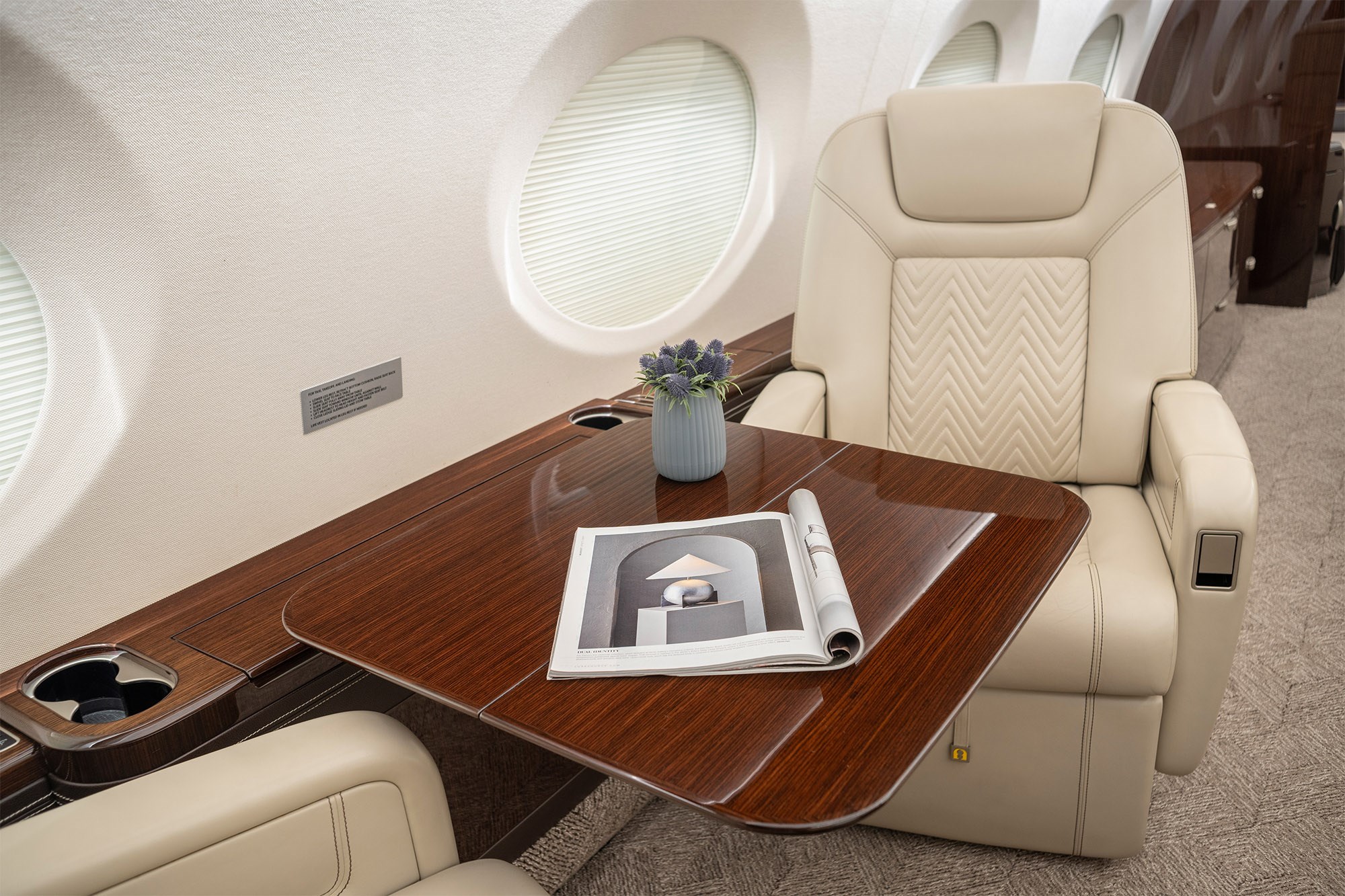

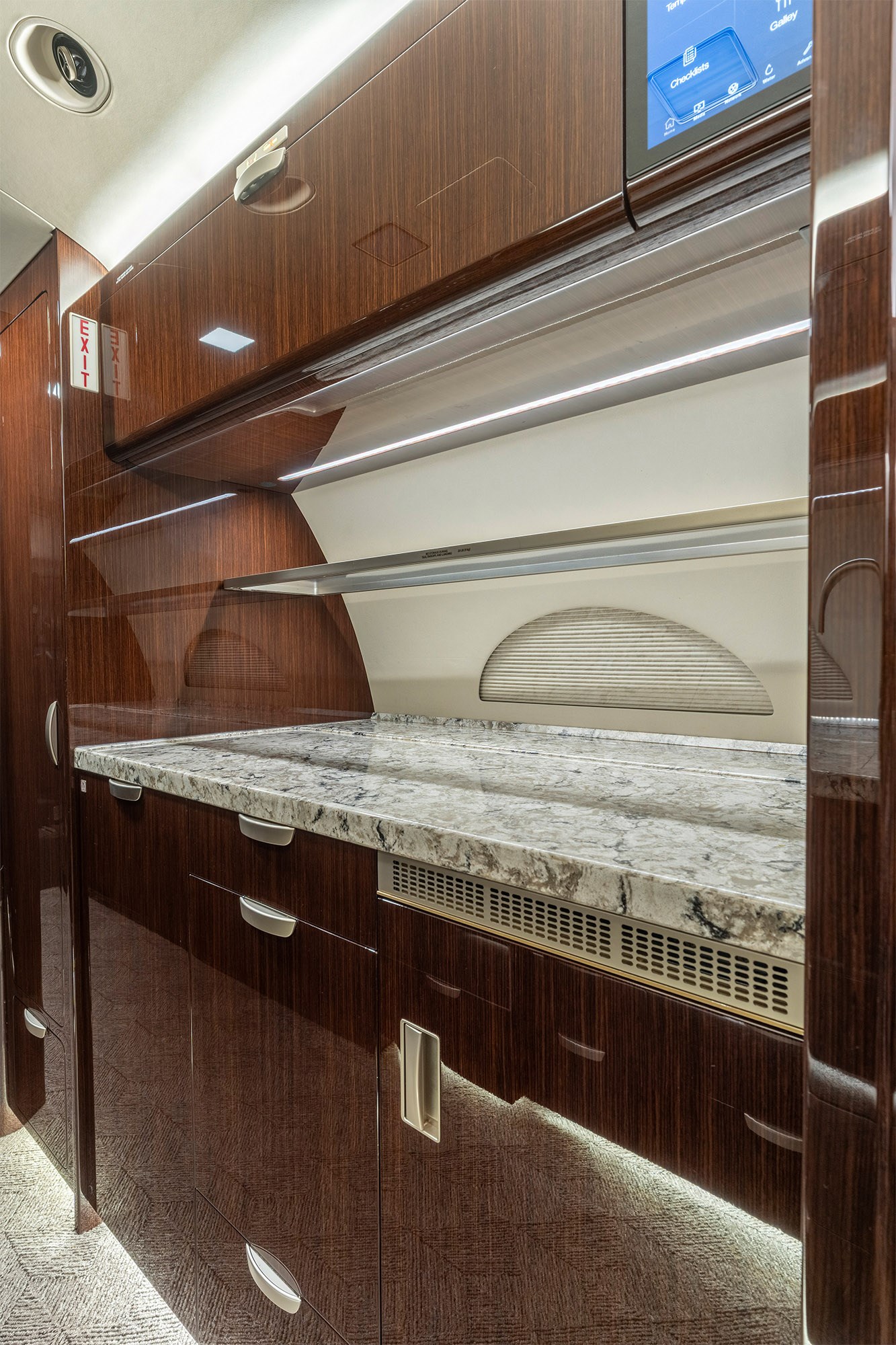

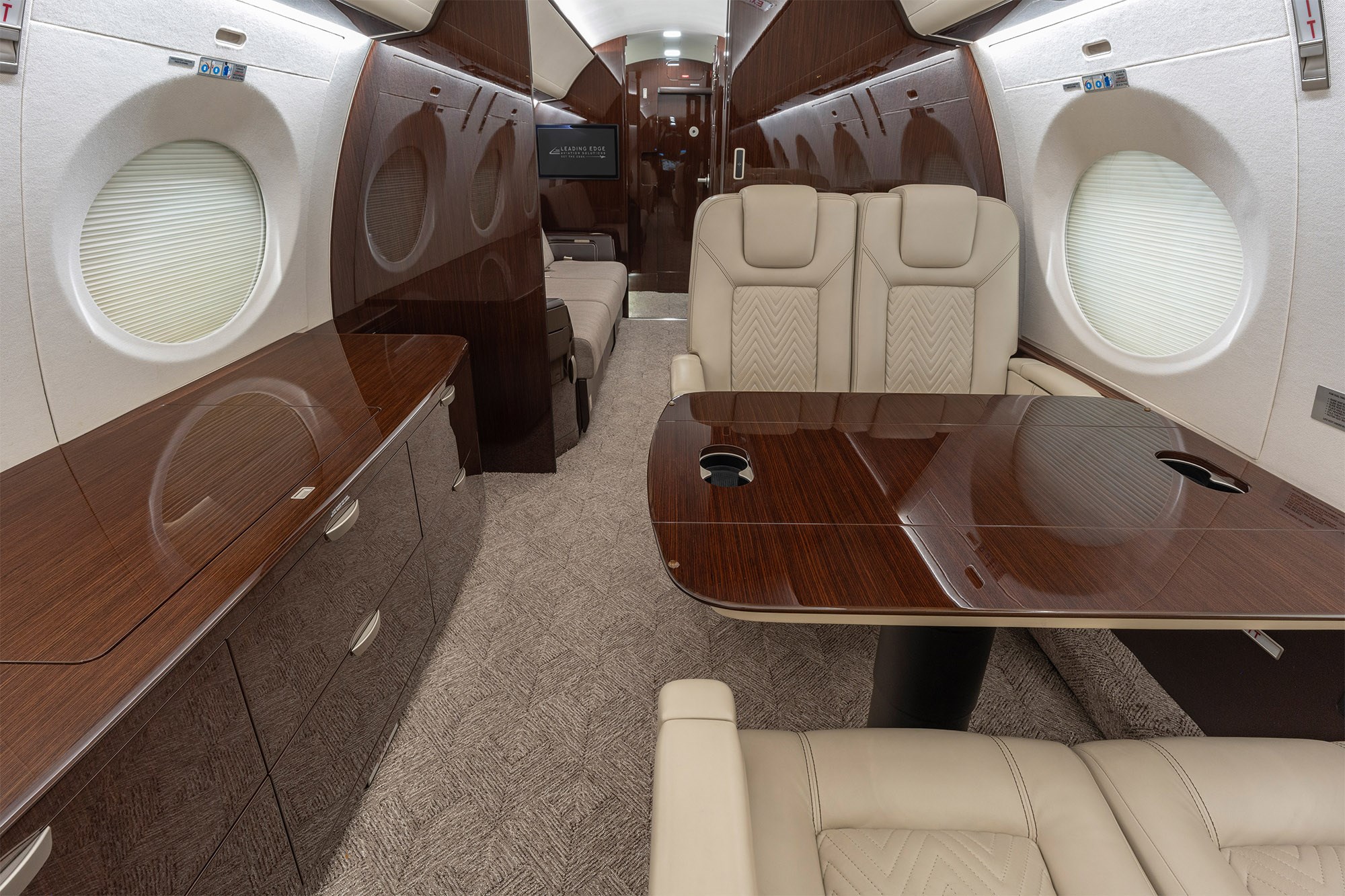

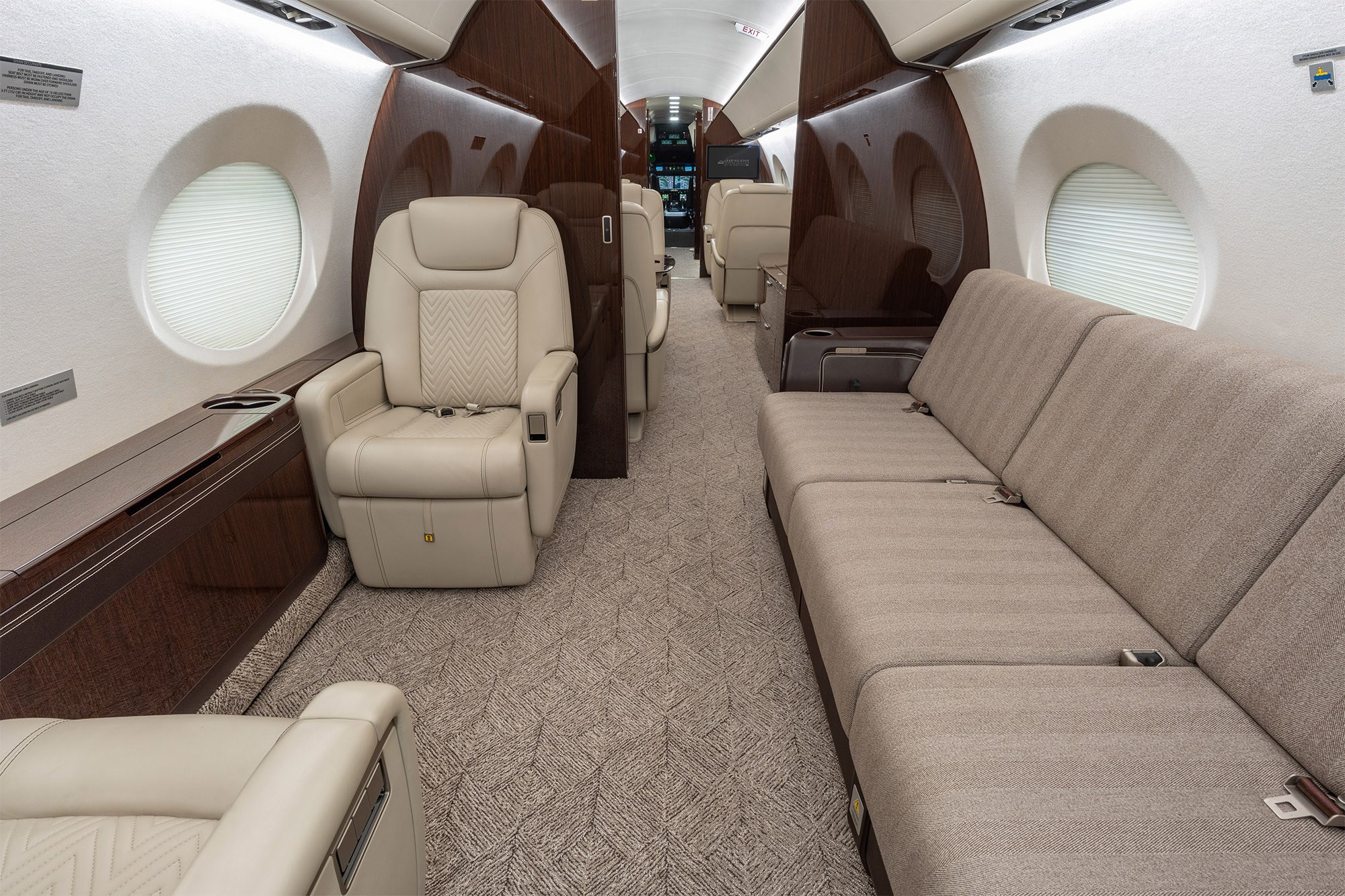

Completed March 2019 at Gulfstream - Savannah, GA Executive Thirteen (13) Passenger Forward Galley Configuration. Interior features a crew jump seat, right-side forward crew vacuum lavatory, left-side forward galley, right-side forward galley annex, aft main vacuum lavatory, and aft baggage compartment. The fire blocked interior features a forward-cabin 4-place club, a mid-cabin 4-place conference group opposite a credenza, and aft-cabin right-side 3-place divan opposite a two place club. The forward galley area and forward cabin is separated by an electric pocket door, and the mid and aft-cabin is separated by a bulkhead with an electric pocket door. The forward-cabin 4-place club chairs include electrically operated executive tables between the opposing club chairs. Multiple 115VAC/60Hz outlets are located throughout the cockpit, vestibule, lavatories, cabin, and baggage compartment areas for crew and passenger use. Cabin entertainment is via the Gulfstream Cabin View System cabin management system that supplies audio and high definition (HD) video. 24 inch widescreen HD LCD Monitor in the Right-Hand Forward Cabin Bulkhead 32 inch widescreen HD LCD Monitor hinge-mounted in the Right-Hand Mid-Cabin Credenza 24 inch widescreen HD LCD Monitor in the Right-Hand Aft Cabin Bulkhead The forward full-service main galley features a refrigerator, microwave oven, convection oven with overboard vent, coffee maker, galley sink with cold/hot potable water faucet, ice drawer, crystal/flatware/china specific storage, canned and bottled drink storage, and ample miscellaneous storage drawers. |
|
| Year Interior: | 2019 |
|

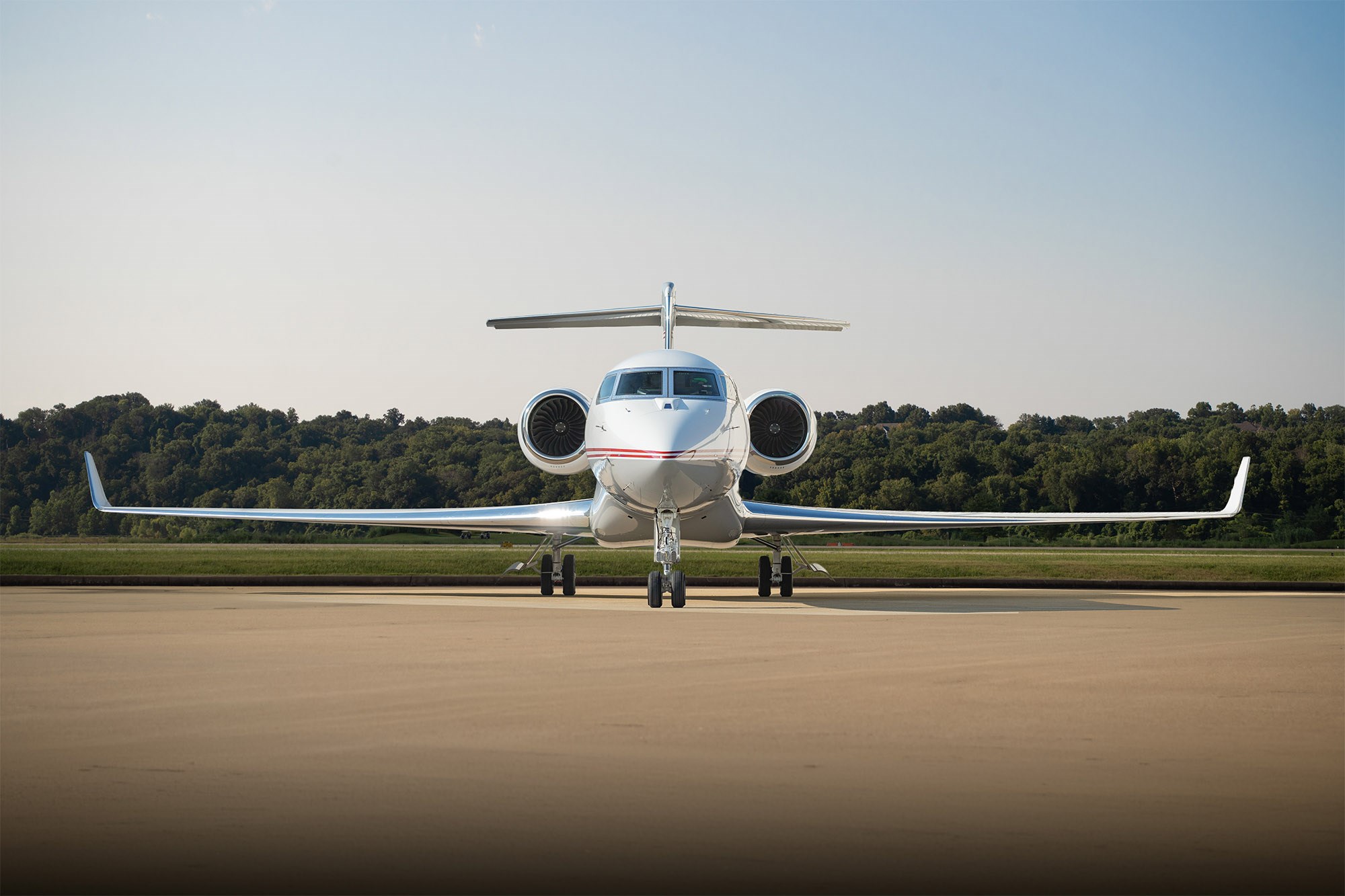

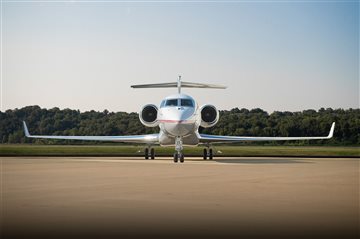

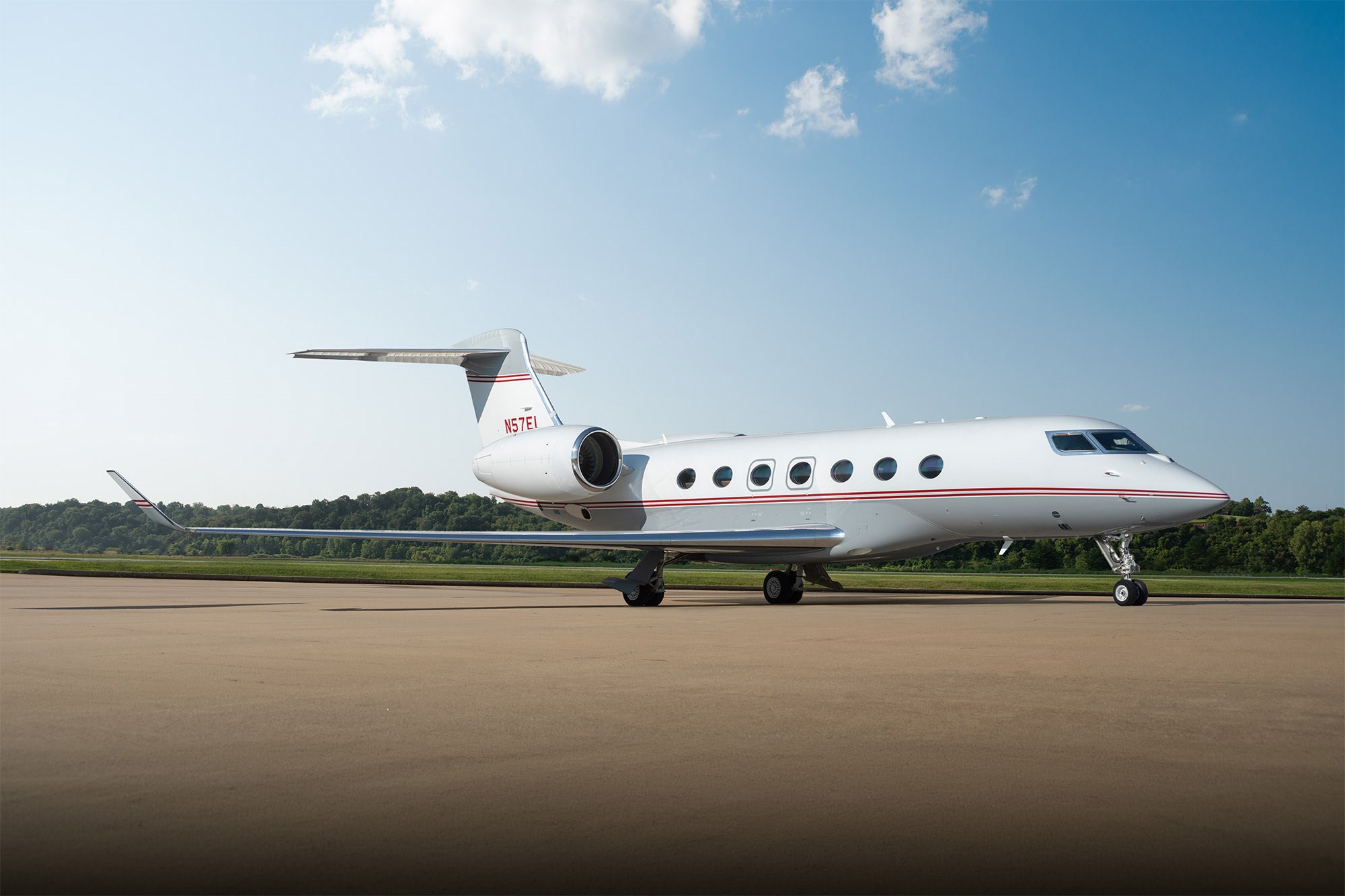

Painted March 2019 at Gulfstream - Savannah, GA Medium Gray Lower Fuselage and Matterhorn White Upper Fuselage with Whisper Gray and Vivid Red Stripes. |
|
| Year Painted: | 2019 |
| Other Info | |
|
Inspection Status: Aircraft Enrolled on Gulfstream CMP Maintenance Tracking Program Engines are Enrolled on P&WC ESP PurePower Engines On Condition |
|
| Brochure: | View Brochure |
| Aircraft Documents (1) | |
