5Y-FWG is no longer for sale on Hangar67.
Hundreds more for sale ...
Similar Aircraft for Sale
1992 Embraer EMB 120 ER
| Overview | |
| Listing Status: | Inactive |
| Price: | N/A |
| Offered By: | SkyQuest International LLC |
| Registration: | 5Y-FWG |
| S/N: | 120-261 |
| Location: |
Kenya
|
| Airframe | |
|
WEIGHTS Maximum Takeoff Weight: 24,251 Lbs Maximum Landing Weight: 23,699 Lbs Basic Operating Weight: 15,600 Lbs Useful Payload With Full Fuel: 2,561 Lbs Total Usable Fuel Weight: 5,483 Lbs |
|
| Total Time: | 28,132.6 Hours |
| Landing Cycles: | 25,708 |

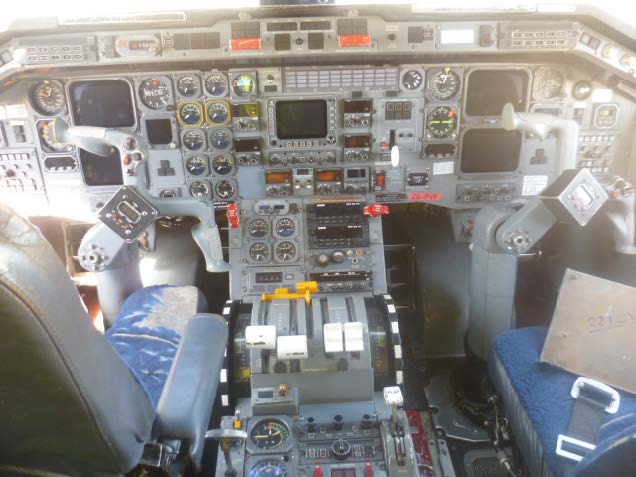

| Avionics | |
|
Component Manufacturer/Model ADF Collins ADF-60A DME Collins DME-42 VOR RECEIVER Collins VIR-32 ELT ARTEX G-406-4 RADIO ALTIMETER Collins ALT 55 PANEL CONTRO Collins CTL-32 GPSL Garmin GPS 165 RADAR Collins WPX-05C VHF/COM ANTENNA Chelton FDR S800-2000-00 XPONDER x2 Collins TDR-98 AIR DATA CONTROL X2 Collins ADS-65 VHF x2 Collins VHF-22A FLIGHT CONTROLLER Collins APP-65A AUTO PILOT x2 Collins APC-65B CONTROL PANEL x2 Collins CTL22 CVR A100A TCAS II TCAS II – Honeywell TPU67B |
|
| Engines | |
|
ENGINES Type & Model : Pratt & Whitney PW118B Operator TBO: 9,000 Hrs. Left Right Serial Number : PCE-AA0040 PCE-AA0037 Time Since Overhaul : n/a n/a Cycles Since New : 7,282 7,282 Cycles Since Overhaul : n/a n/a Time Since HSI : 30.0 Hrs. 30.0 Hrs. LL Components - Cycles Remaining : Left Right LP Impeller (3040689) : 17,704 17,704 LP Disk: (3036412) : 17,704 17,704 HP Impeller (3043294) : 7,704 7,704 HP Turbine Blades (3115601-01) : 7,704 7,704 HP Disk (3041511) : 7,704 7,704 HP Front Cover (3039640) : 7,704 7,704 HP Rear Cover (3039639) : 7,704 7,704 I/S Air Seal (3039172) : 7,704 7,704 #1 P.T. Disk (3038613) : 22,704 22,704 #2 P.T. Disk (3033914) : 22,704 22,704 PROPELLERS Type & Model : Hamilton Standard 14RF-9 Operator TBO : 9,000 Hrs. / 84 Months Port Star Serial Number : 527 1426 Time Since New : Unknown Unknown Time Since Overhaul : 4.0 Hrs. 99.2 Hrs. Date of Last OH : 23-Feb-2021 23-Feb-2017 |
|
| Engine 1 Hours: | 7,127.1 SNEW |
| Engine 2 Hours: | 7,110.4 SNEW |
| Other Info | |
| Brochure: | View Brochure |
