C-FMWW is no longer for sale on Hangar67. Hundreds more for sale ...

Similar Aircraft for Sale



2002 Sequoia Falco

Overview
Listing Status: Inactive

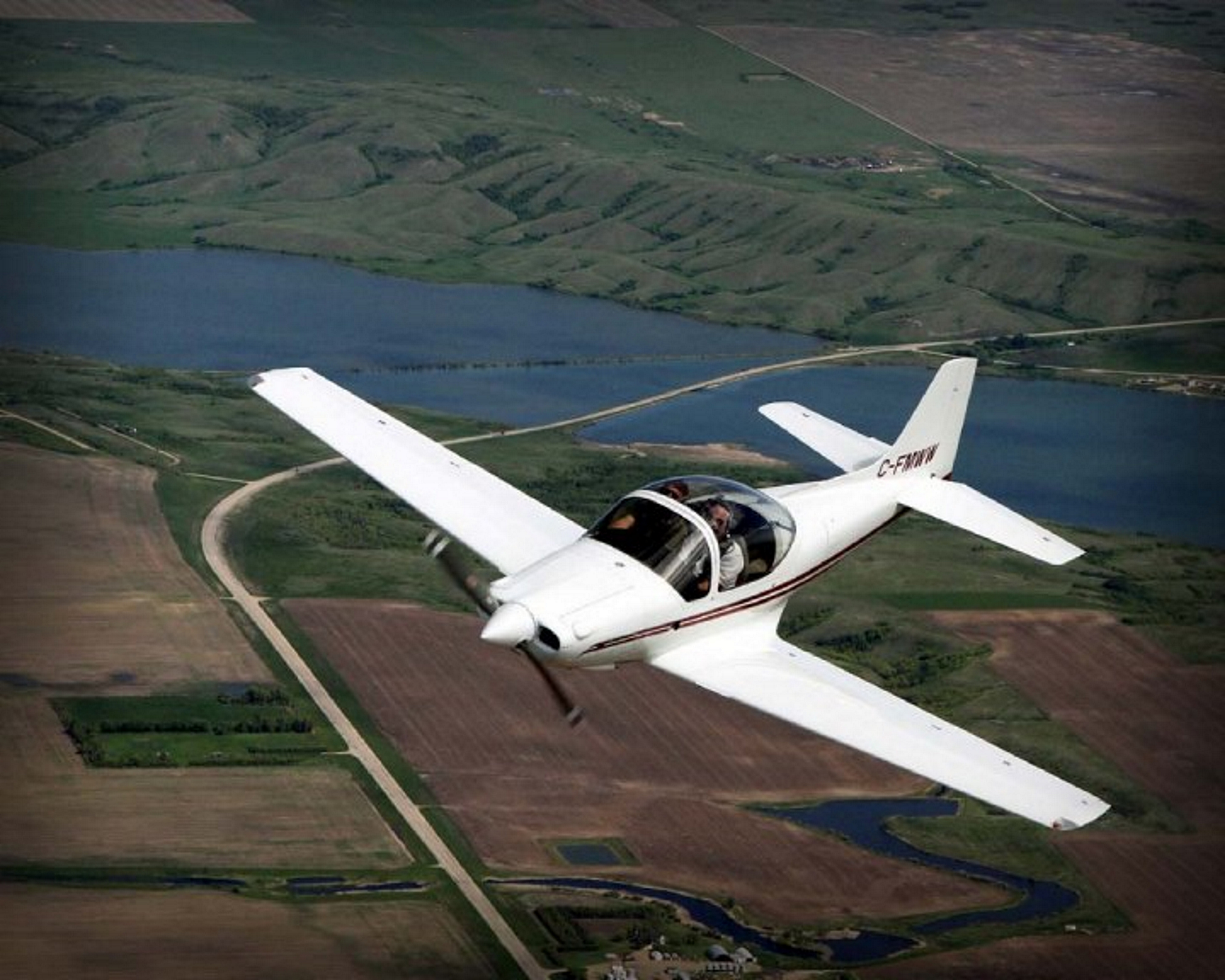

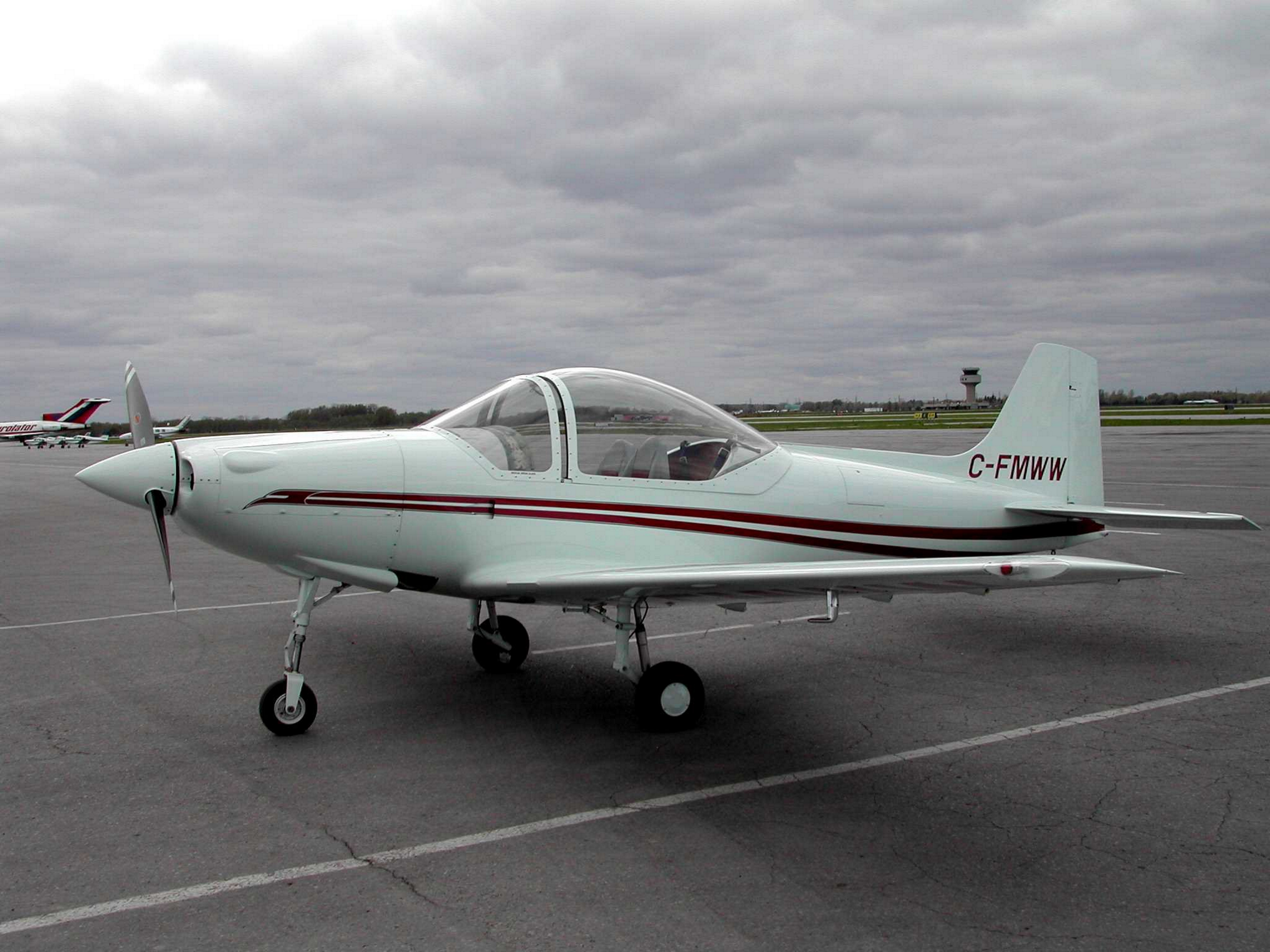

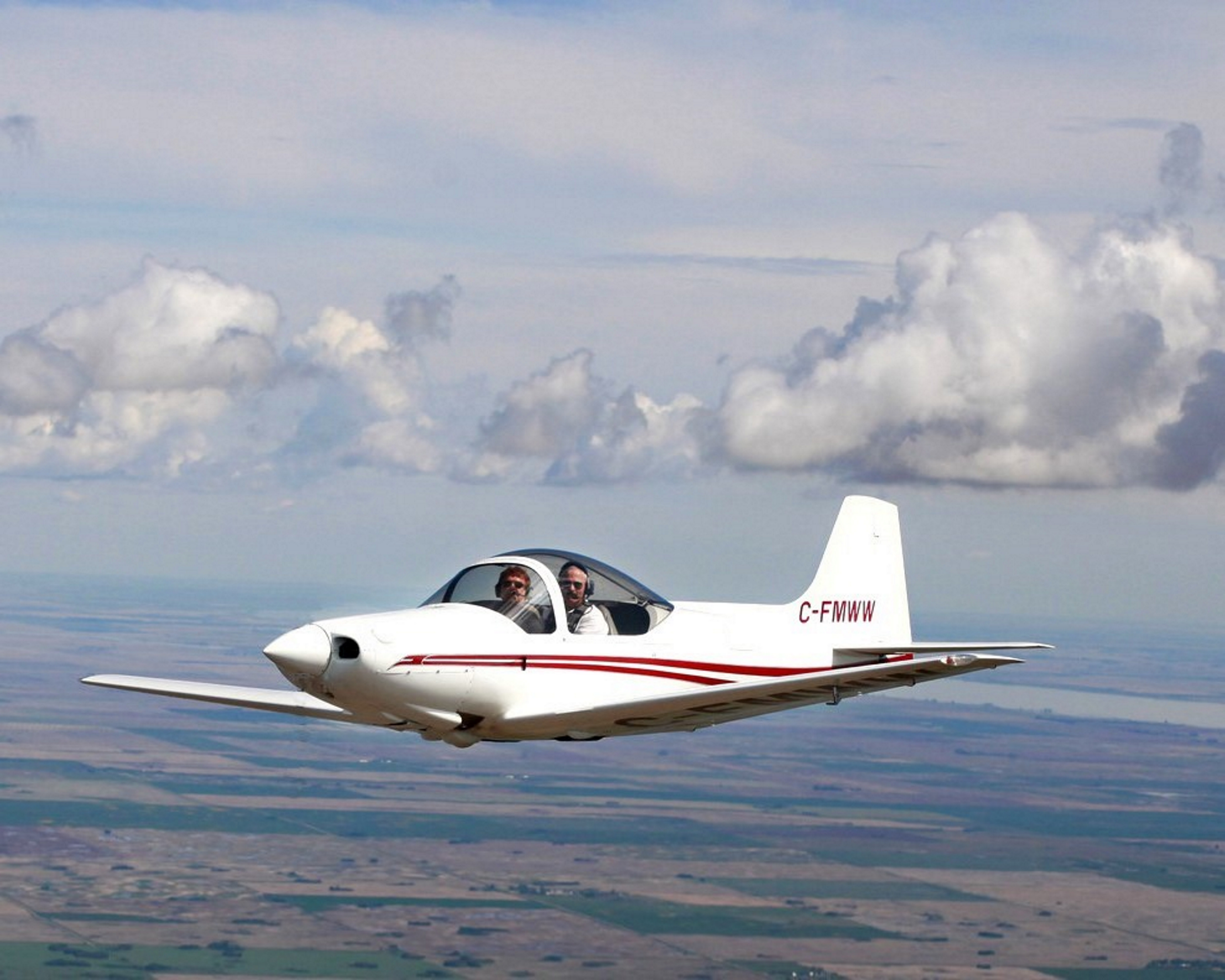

2002 Sequoia Falco F8-L
Price: N/A
Offered By: Prairie Aircraft Sales Ltd.
Registration: C-FMWW
S/N: 1286
Location: Calgary
Canada
Airframe
Empty WT: 1212 lbs
Payload full fuel: 420 lbs
Gross Wt: Normal and Utility – 1,880 lbs
Aerobatic Weight – 1,650 lbs
Total Time: 367 Hours

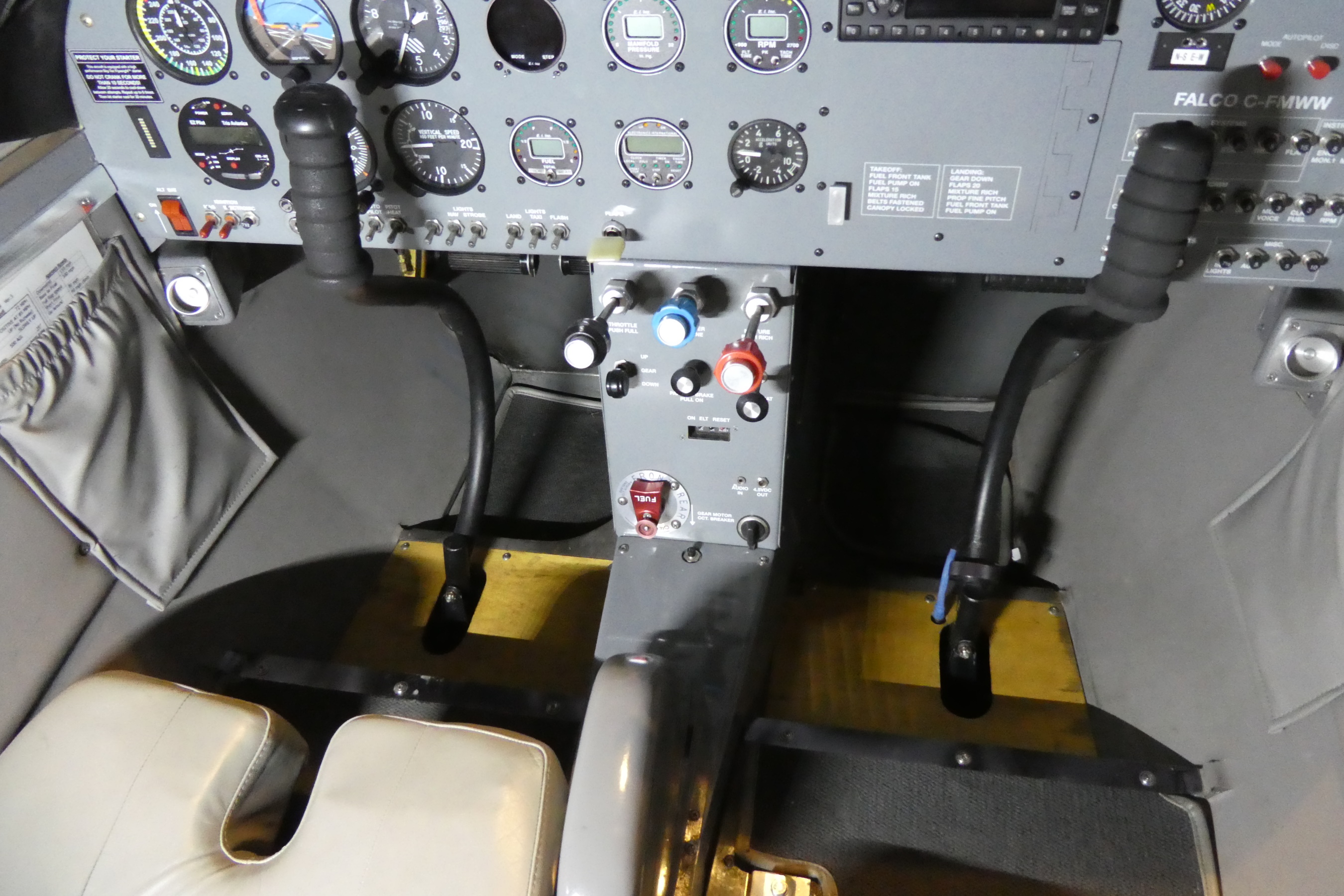

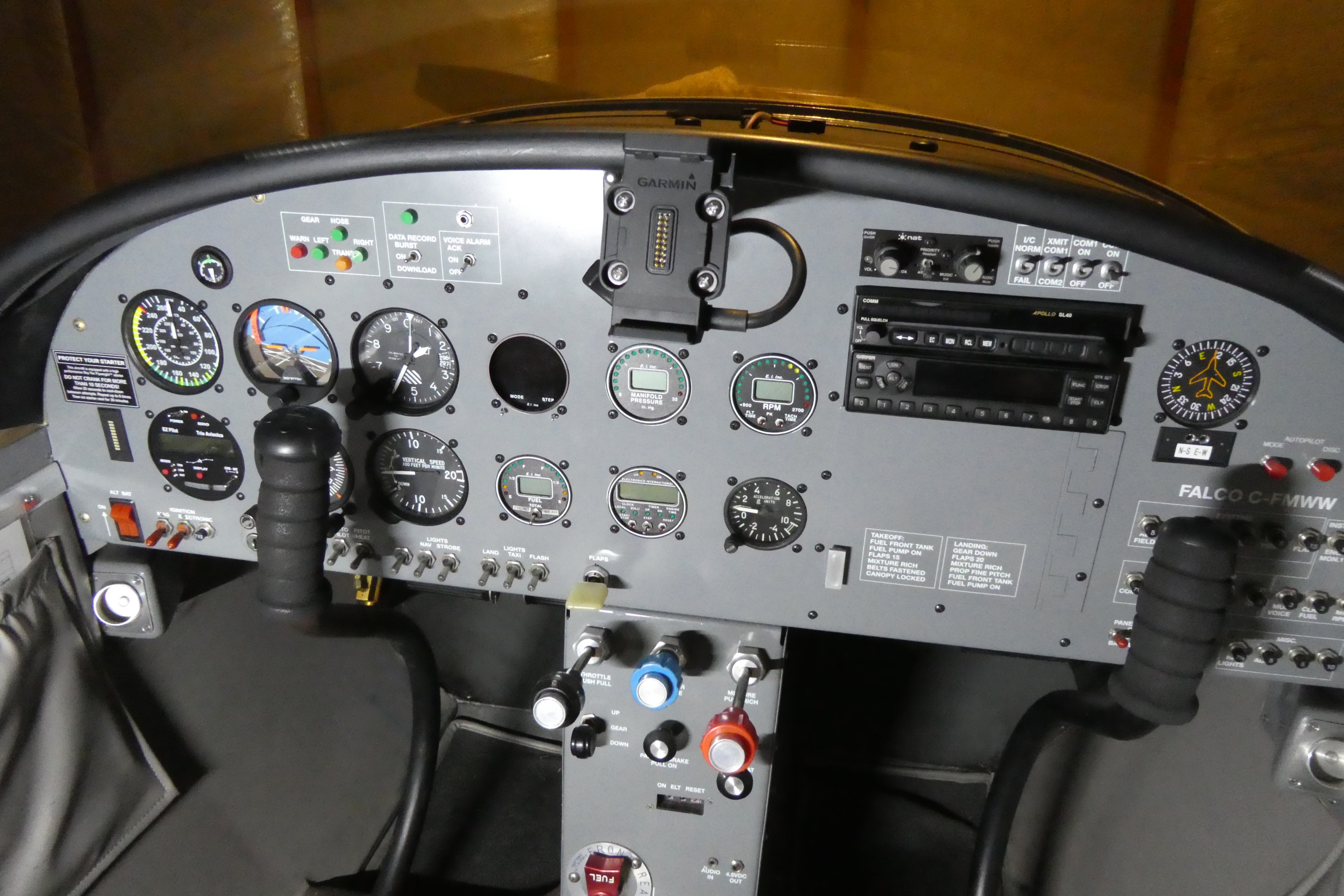

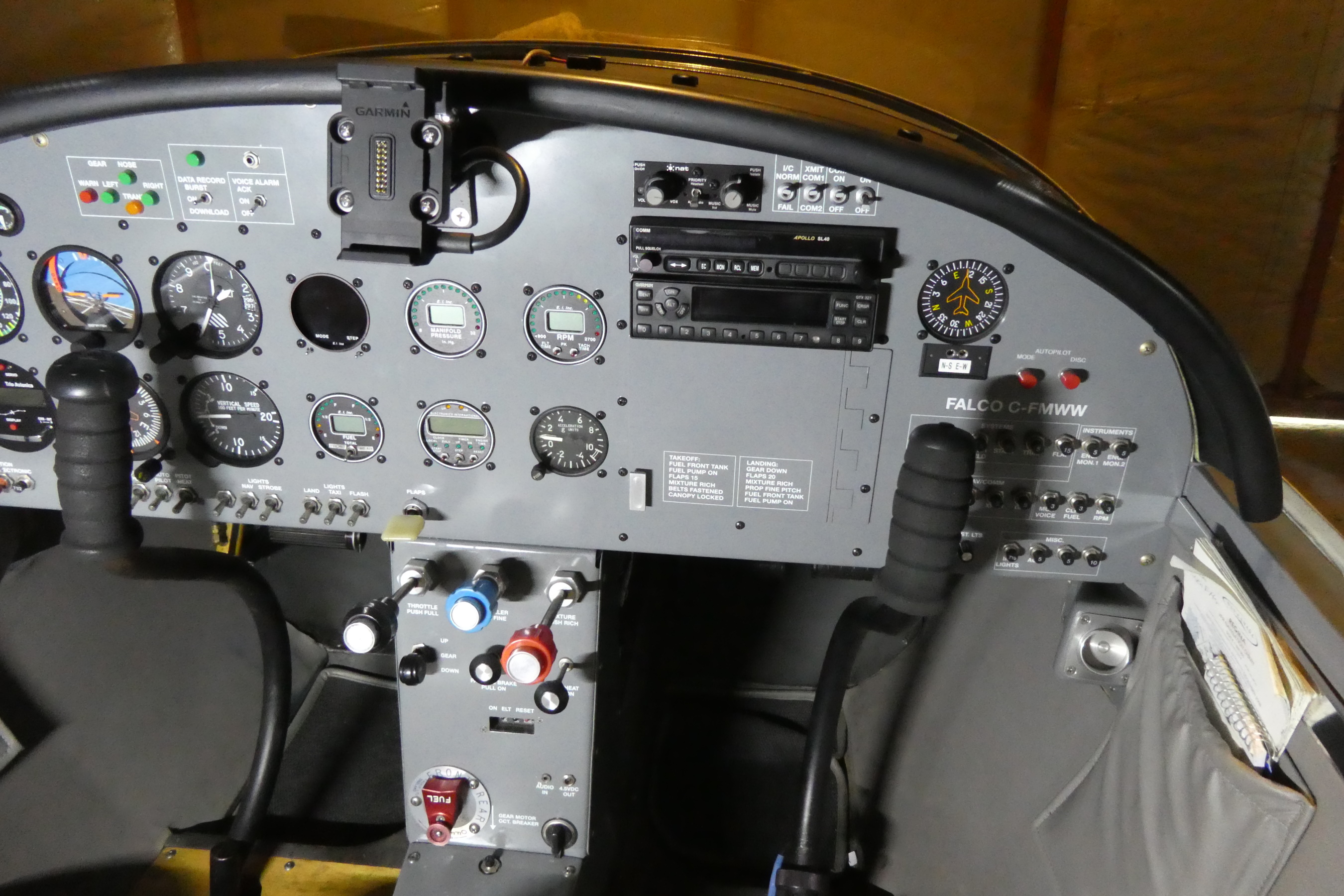

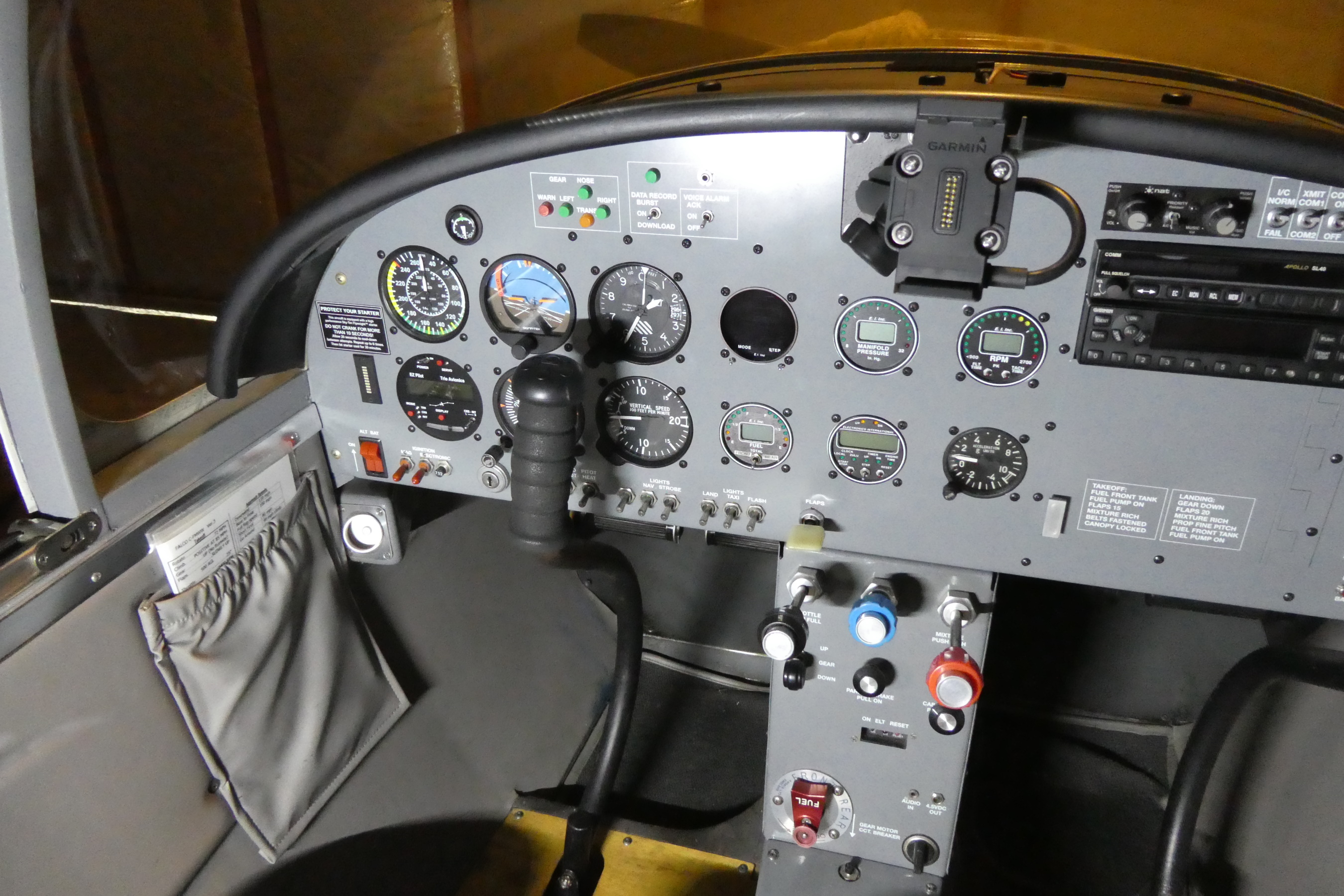

Avionics
Garmin GTX 327 Transponder
AK 450 ELT
Digital Clock
Apollo SL40 Comm
Digital Fuel Flow
Digital RPM
Additional Equipment
Options:
Fuel Capacity (all Useable)
40 US gallons (with inverted tank – 43 US Gal)
Baggage – 90 lbs.

Performance:
Wing Loading: 17.5 lbs/sq ft, Power Loading, Normal & Utility – 10.4 lbs/hp Aerobatic – 9.2 lbs/hp
Rate of Climb- 1,500 fpm; Best rate speed – 104 mph, Climb gradient – 872 ft/sm Service Ceiling – 19,000 ft
Maximum speed -220 MPH, Never exceed speed – 240 mph
Cruise 75% Power at 6,000 ft – 198 mph at 9.6 gph, Endurance at 75% - 3.9 hrs Range: 75% power – 772 sm, (670 nm) economy cruise – 920 sm
Stall Speed: 75 mph clean, flaps/gear down – 62 mph
Turbulent – air penetration speed – 140 mph
Take-off run: 530 ft., to clear 50 ft obstacle – 1,020 ft.
Landing run: 750 ft., to clear 50 ft obstacle – 1,150 ft.
Length – 26’4”, Height 7’6”, Wing span 26’3”
Wing aspect ratio-6.4, Wing area – 107.5 sq ft
Airfoil: wing root-642212-1/2; wing tip – 642210, tail group-65009 Dihedral 5 degree, Wing washout 3 degree
Engines & Props
SMOH: 367 180 HP Lycoming IO-360-B1E

SPOH: 367 Hartzell 2 Blade, Constand Speed
Interior & Exterior
EXTERIOR: White with Red Stripes 8/10
Aircraft Documents
Logbooks: Airframe.pdf
Engine.pdf
Inspection-Report.pdf
Journey-Log.pdf
Misc.pdf
