Overview | |
Listing Status: | Inactive |
Engines enrolled on TAP Blue Deferred ID 10 completed March 2024 Forward side-facing seat Belted Lavatory Dual Collins 3000 FMS EU OPS certified |
|
Price: | N/A |
Offered By: | Colibri Aircraft Ltd |

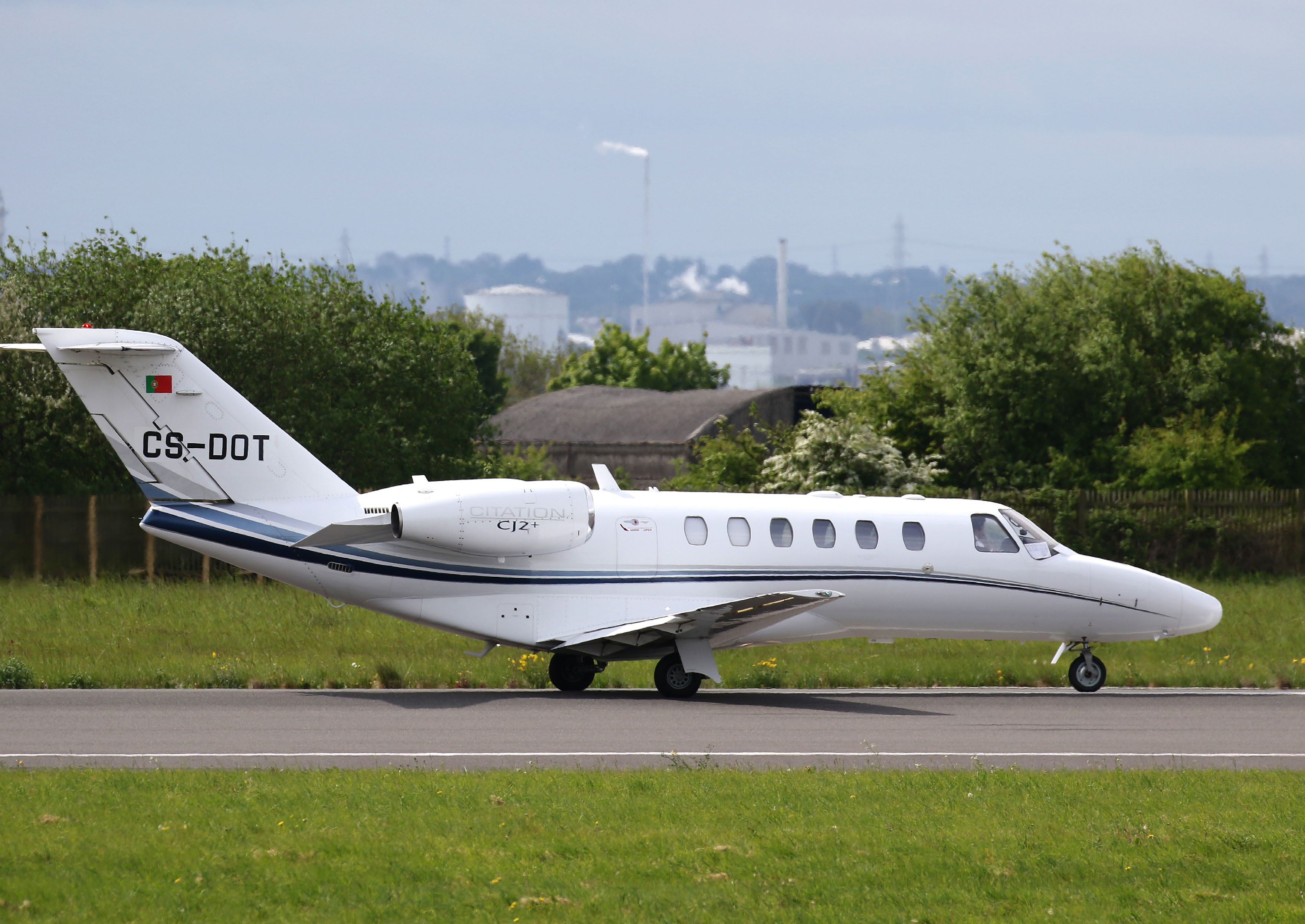

Registration: | CS-DOT |
S/N: | 525A-0389 |
Location: |
Portugal![]() |
Airframe | |
Enrolled on ProParts. Current hourly rate is 259.82 USD per hour. Rates subject to change. Weights Maximum Ramp Weight 12,625 lbs Maximum Takeoff Weight 12,500 lbs Maximum Landing Weight 11,525 lbs Maximum Zero Fuel Weight 9,700 lbs Maximum Fuel Capacity 3,960 lbs Empty Weight (as of 17 Sept 2020) 7,792 lbs |
|
Total Time: | 4,470 Hours |
Landing Cycles: | 4,630 |
Avionics | |

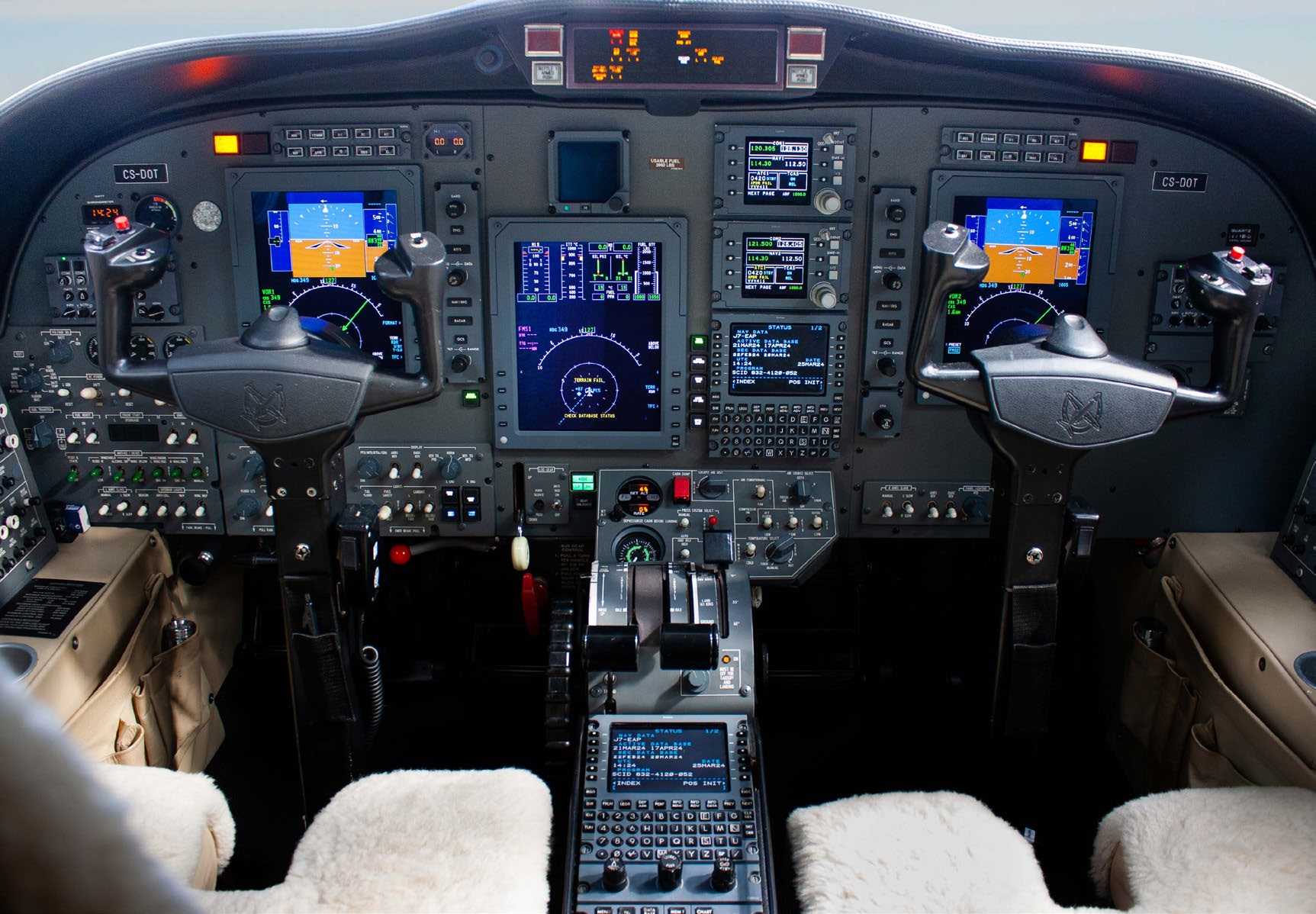

Honeywell ProLine 21 System with 3 Screens Dual AHC-3000 AHRS Computer DBU-5000 Data Base Unit Dual ECU-3000 External Compensation Unit RTA-800 Radar Transceiver Dual TDR-94D Diversity Transponders Dual VHF Comm Radios Skywatch Traffic Alert System Provisions for Cockpit Voice Recorder Single Collins ADF Single GPS 4000S GPS computer Dual FGC-3000 Flight Guidance Computer Dual Collins 3000 FMS computers Dual FDU-3000 Flux Detection Unit Dual NAV Radios (one Nav 4000, one Nav 4500) Dual DME-4000 Transceiver Honeywell EGPWS Dual RTU-4220 Radio Tuning Units Single FSU-5010 File Server Unit Jeppesen Electronic Charts Ground Comm Dispatch Switch |
|
Additional Equipment | |
Bravo / Encore style door Steps RH Belted Side Facing Seat across from door Ground Communication Dispatch Switch Hard sliding door between lavatory and cabin Provisions for Cockpit Voice Recorder Steep Approach Option Aft Belted Lavatory NOTES Initial Certificate of Airworthiness Issued 4 March 2008 Isle of Man, German and Portugal Registration History ID 10 completed March 2024 Currently EU Ops Certified ADS-B Out Compliant WAAS Compliant |
|
Engines | |
ENGINES As of 24 March 2024 Williams FJ44-3A-24 Left Right Serial Number 216138 216184 Total Cycles Since New 4563 4563 Overhauls completed July 2021 at 3785 hours. Enrolled on TAP Blue Deferred. Hourly rate for 2024 is 256.62 USD per hour per engine. Rates subject to change. |
|
Engine 1 Hours: | 4,409 SNEW |
Engine 2 Hours: | 4,409 SNEW |
Interior & Exterior | |

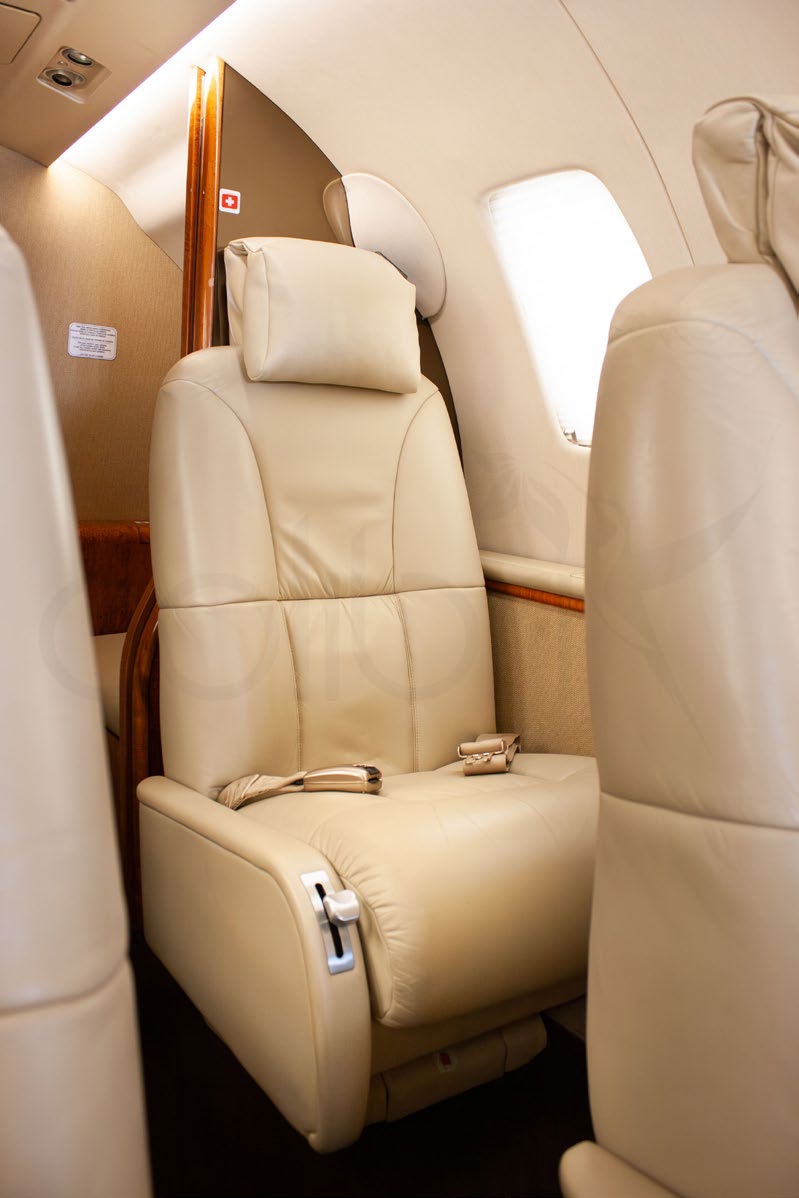

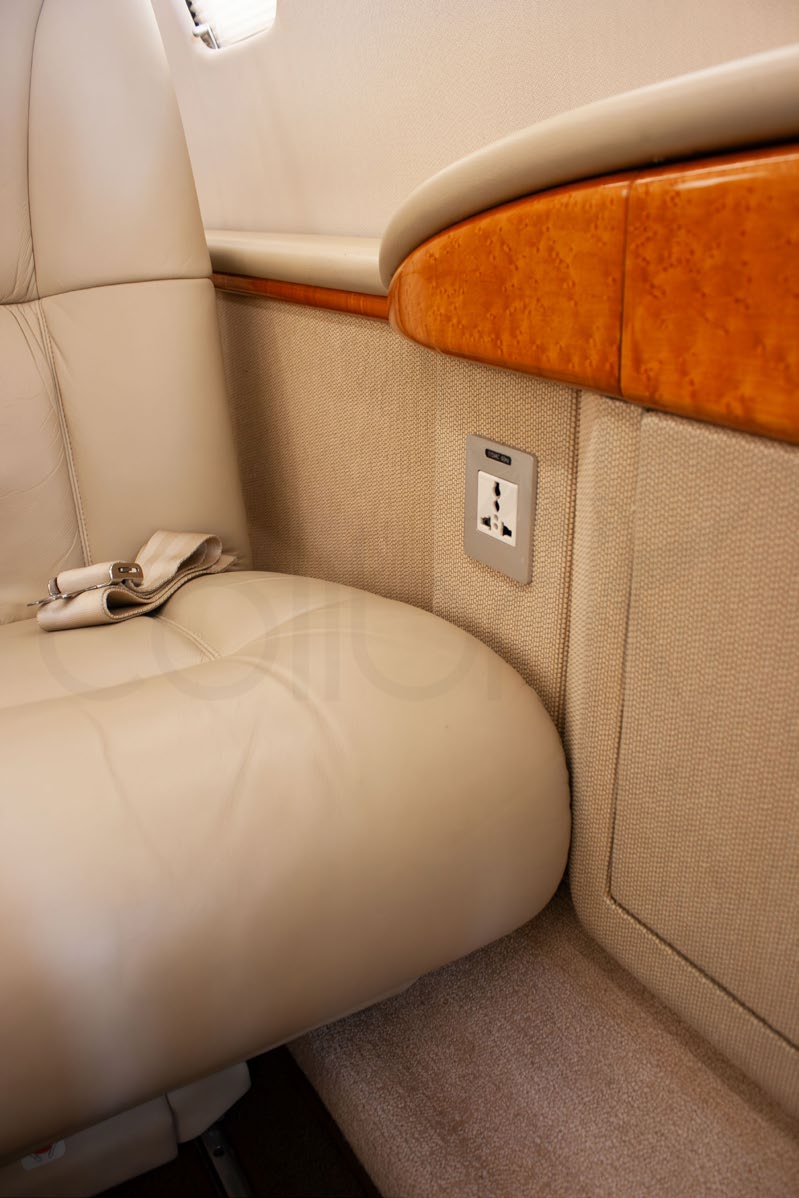

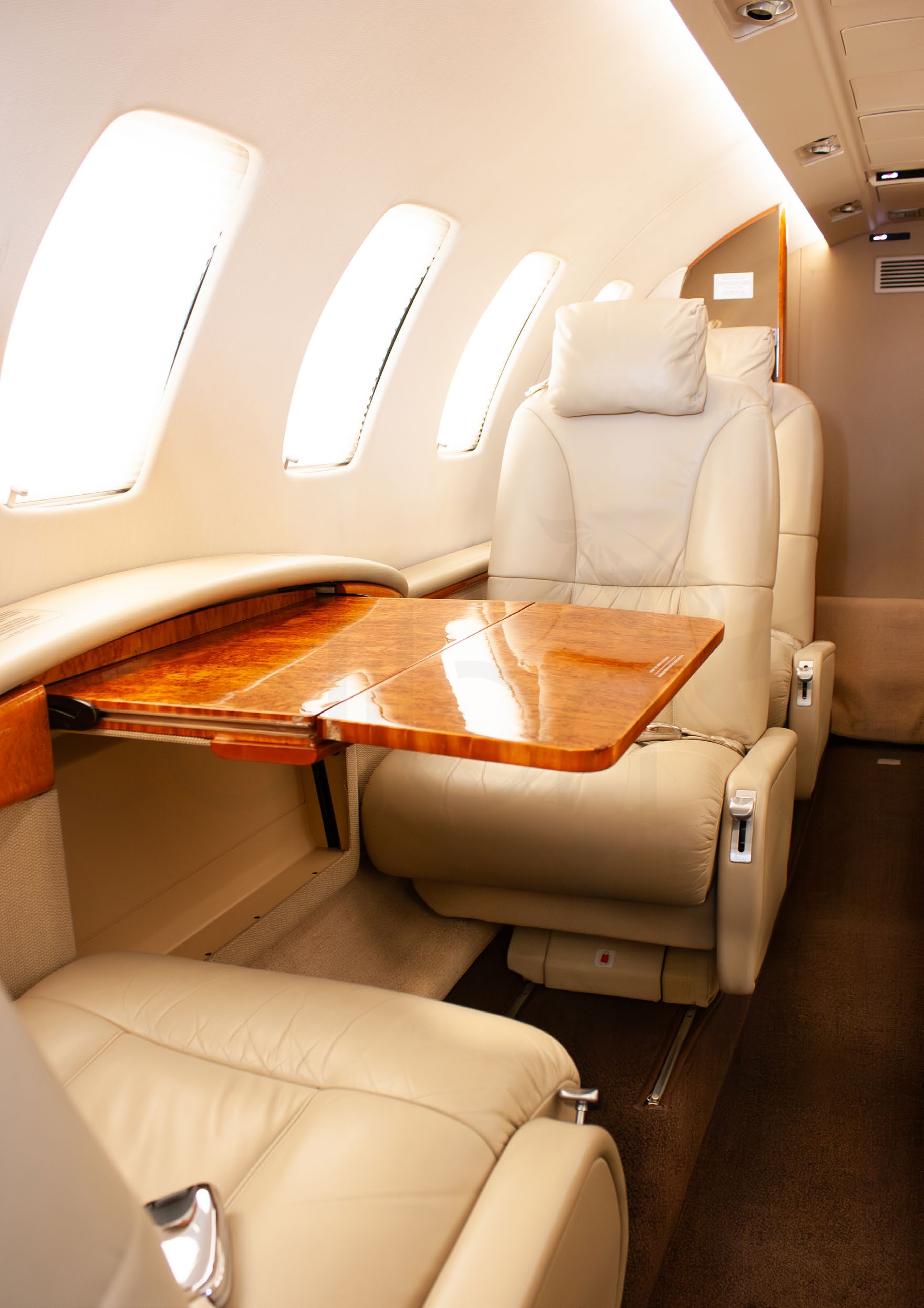

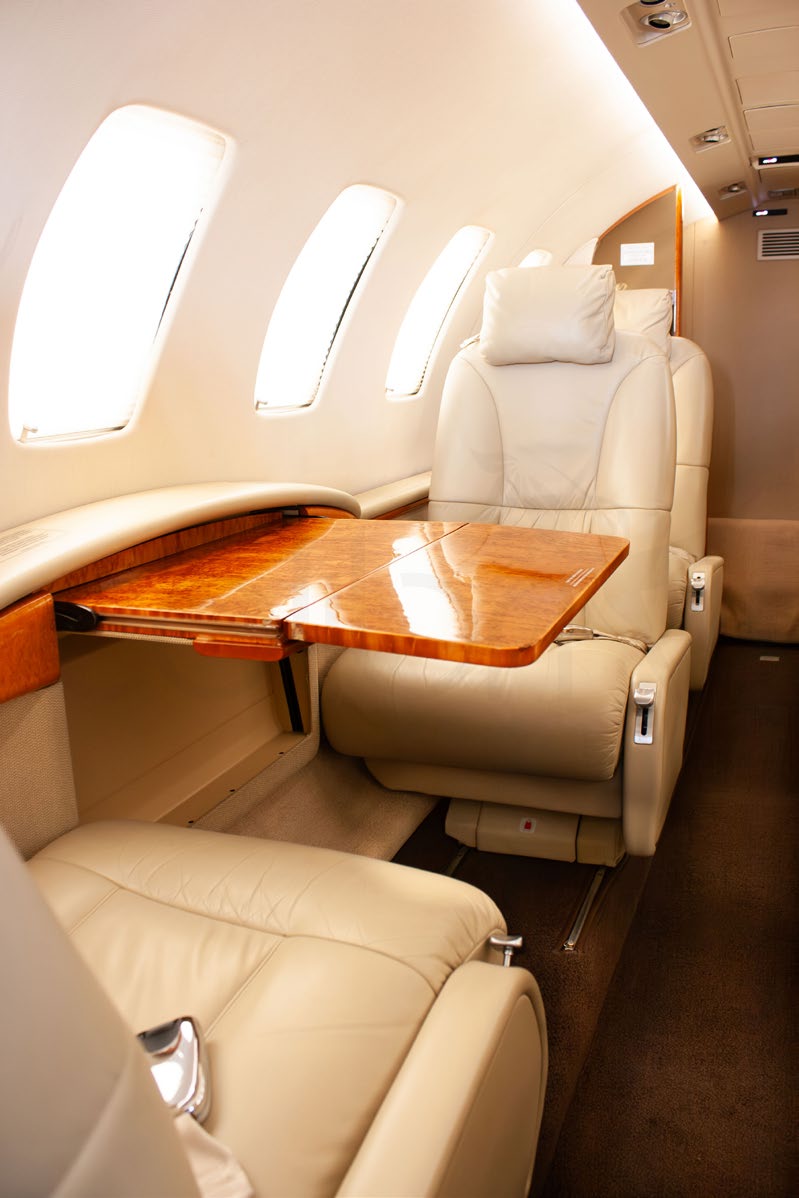

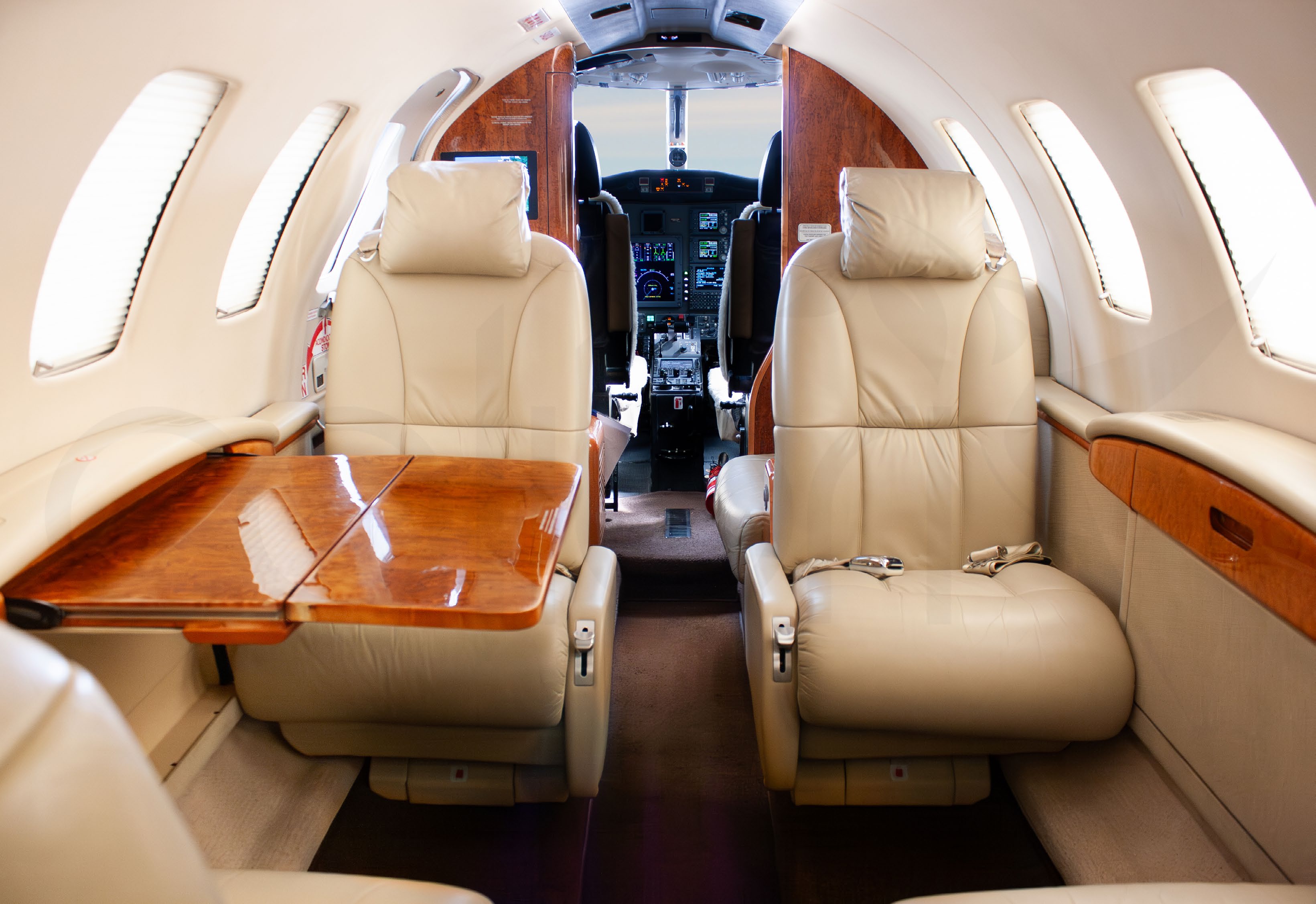

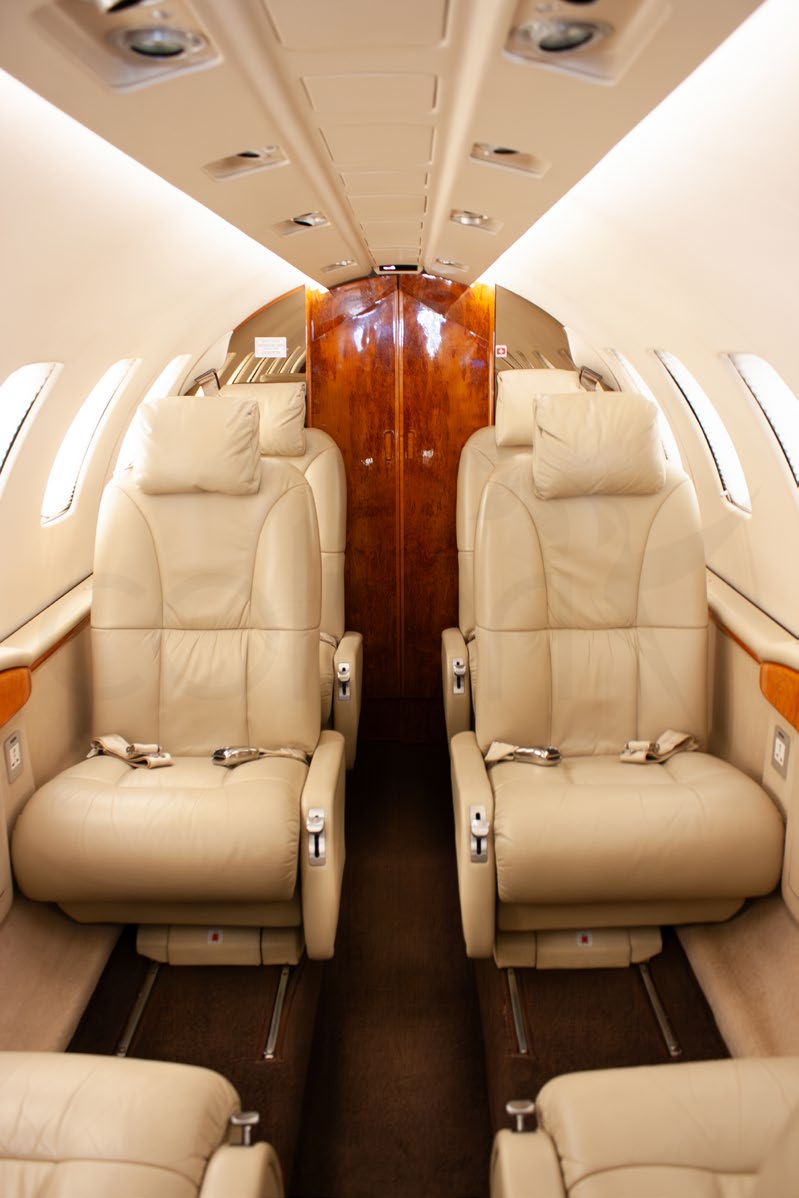

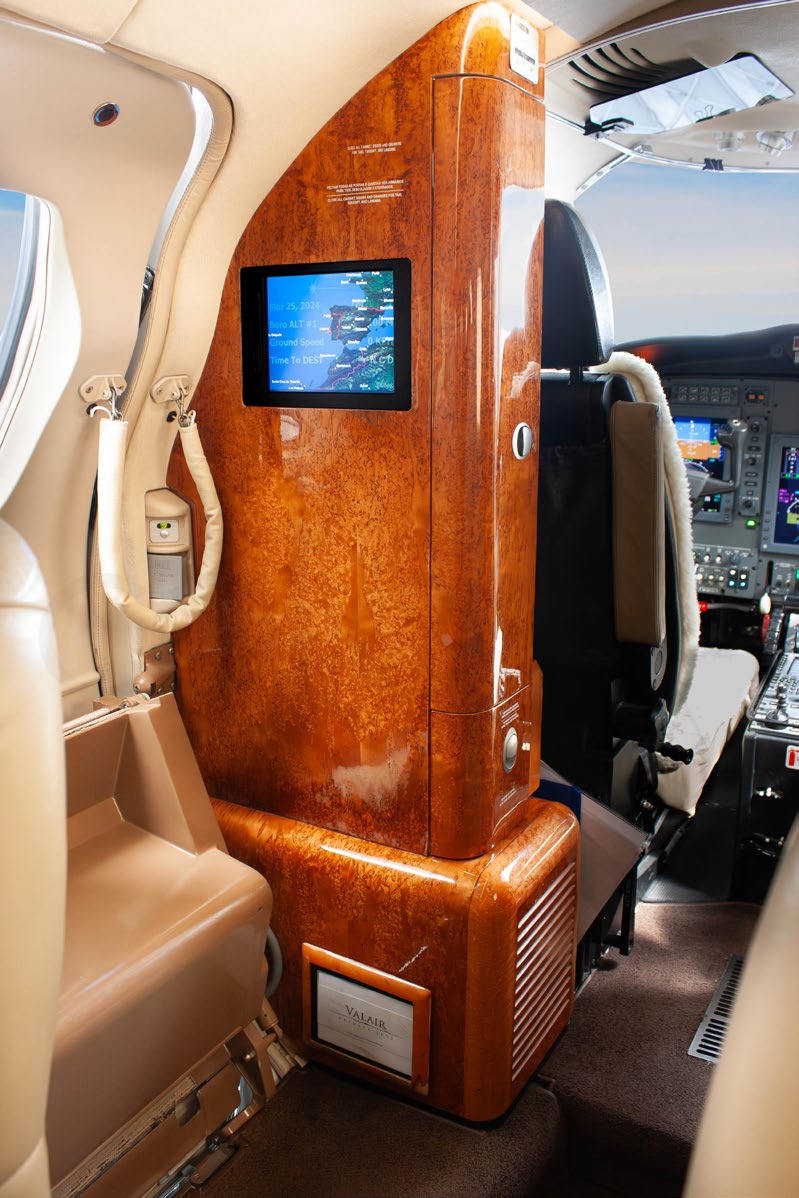

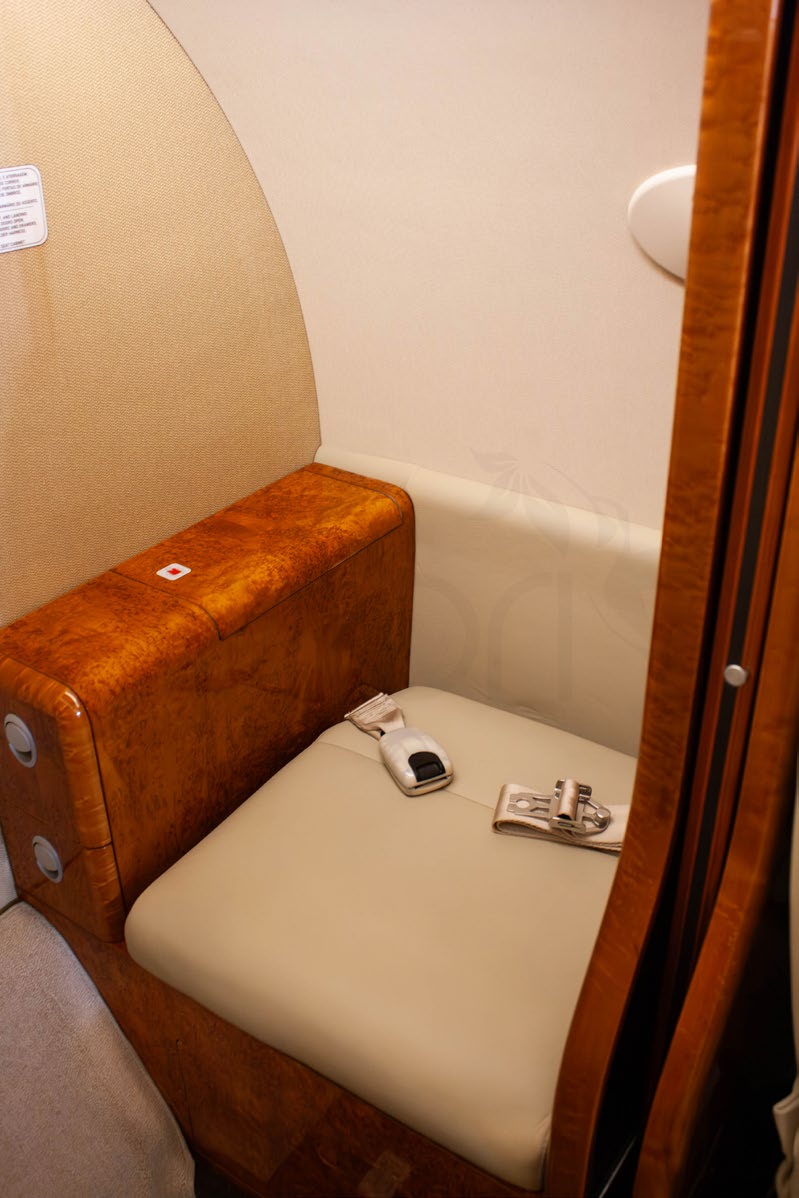

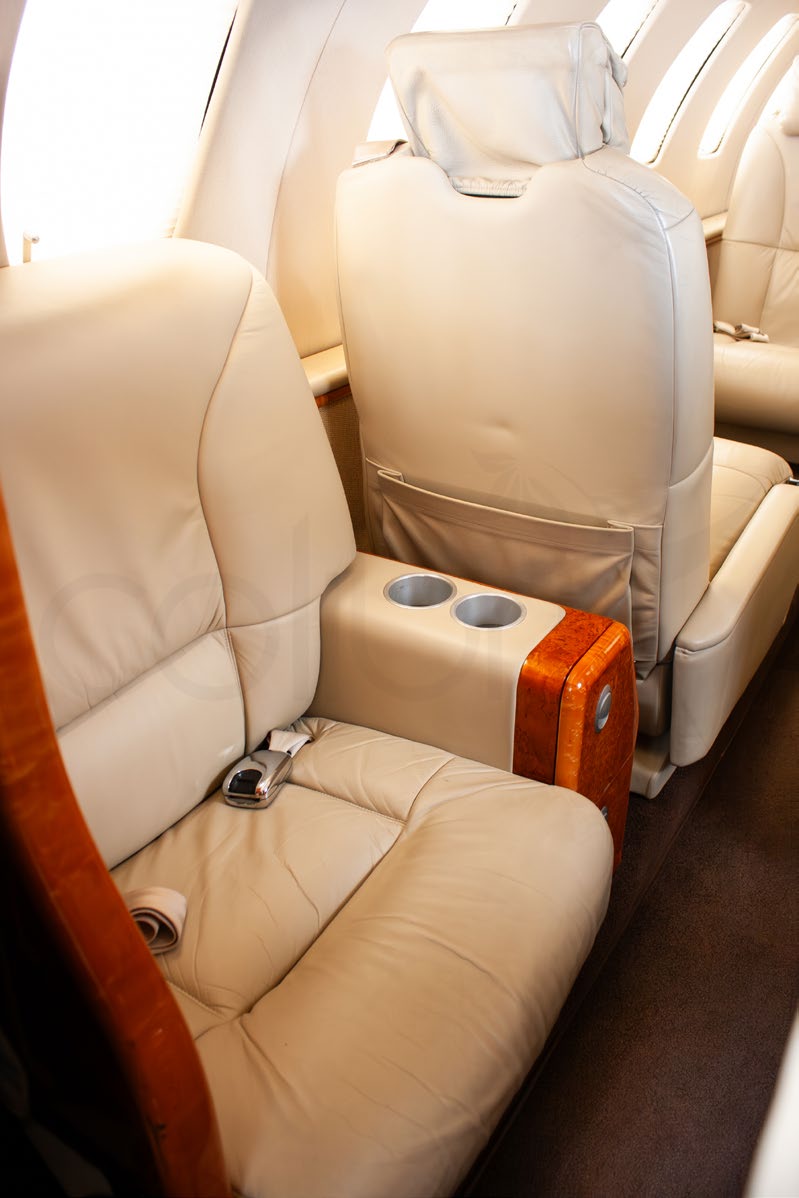

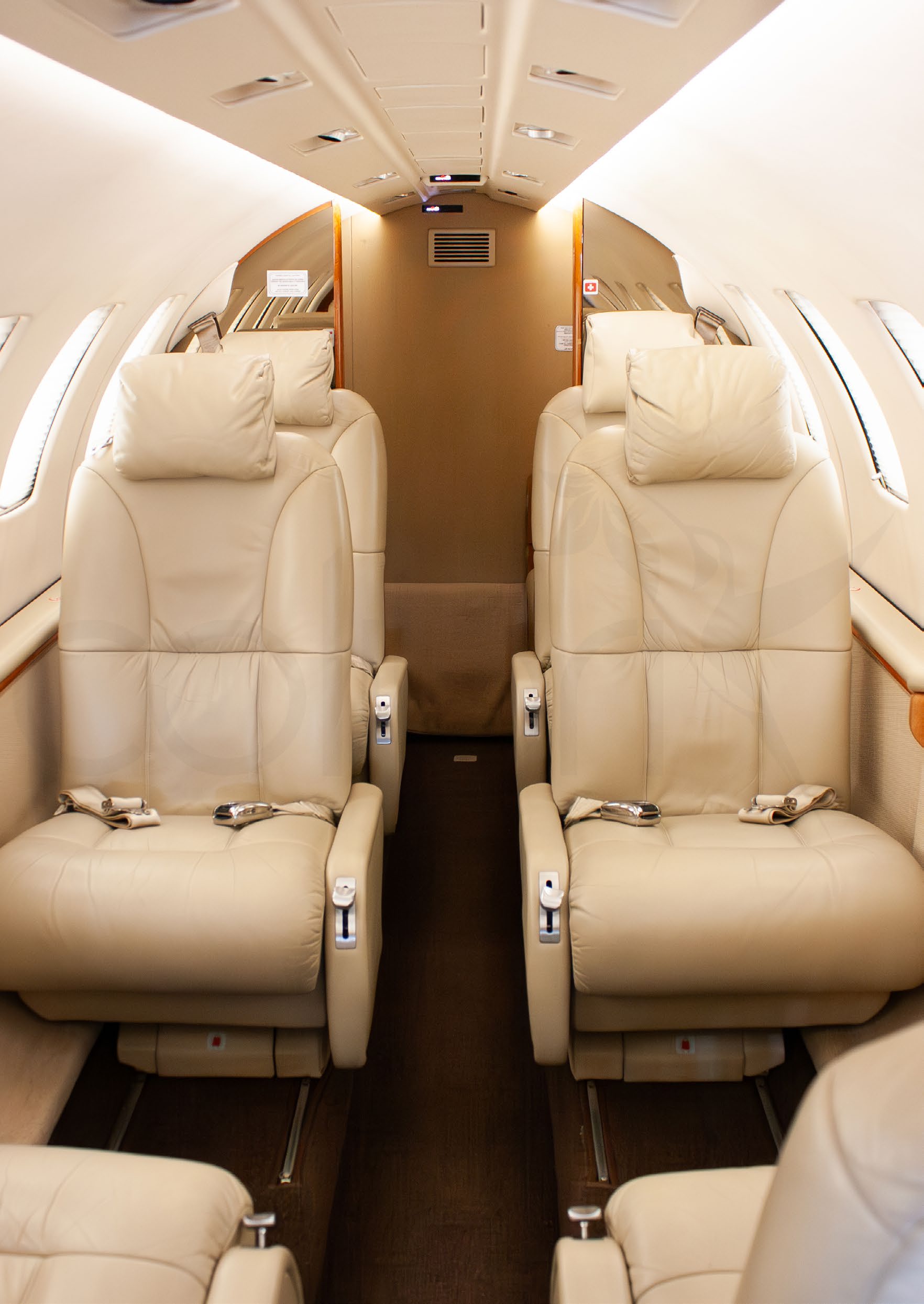

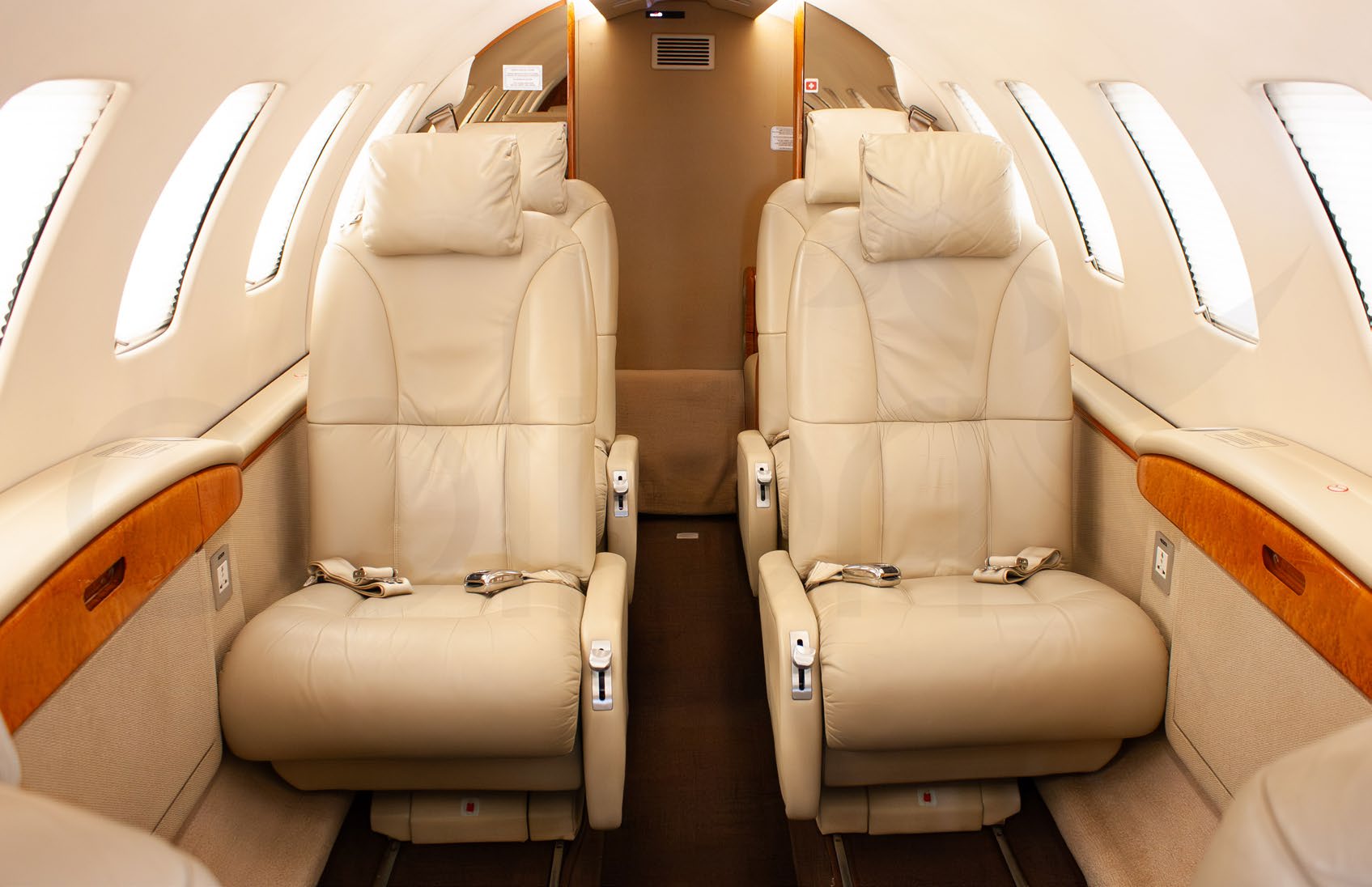

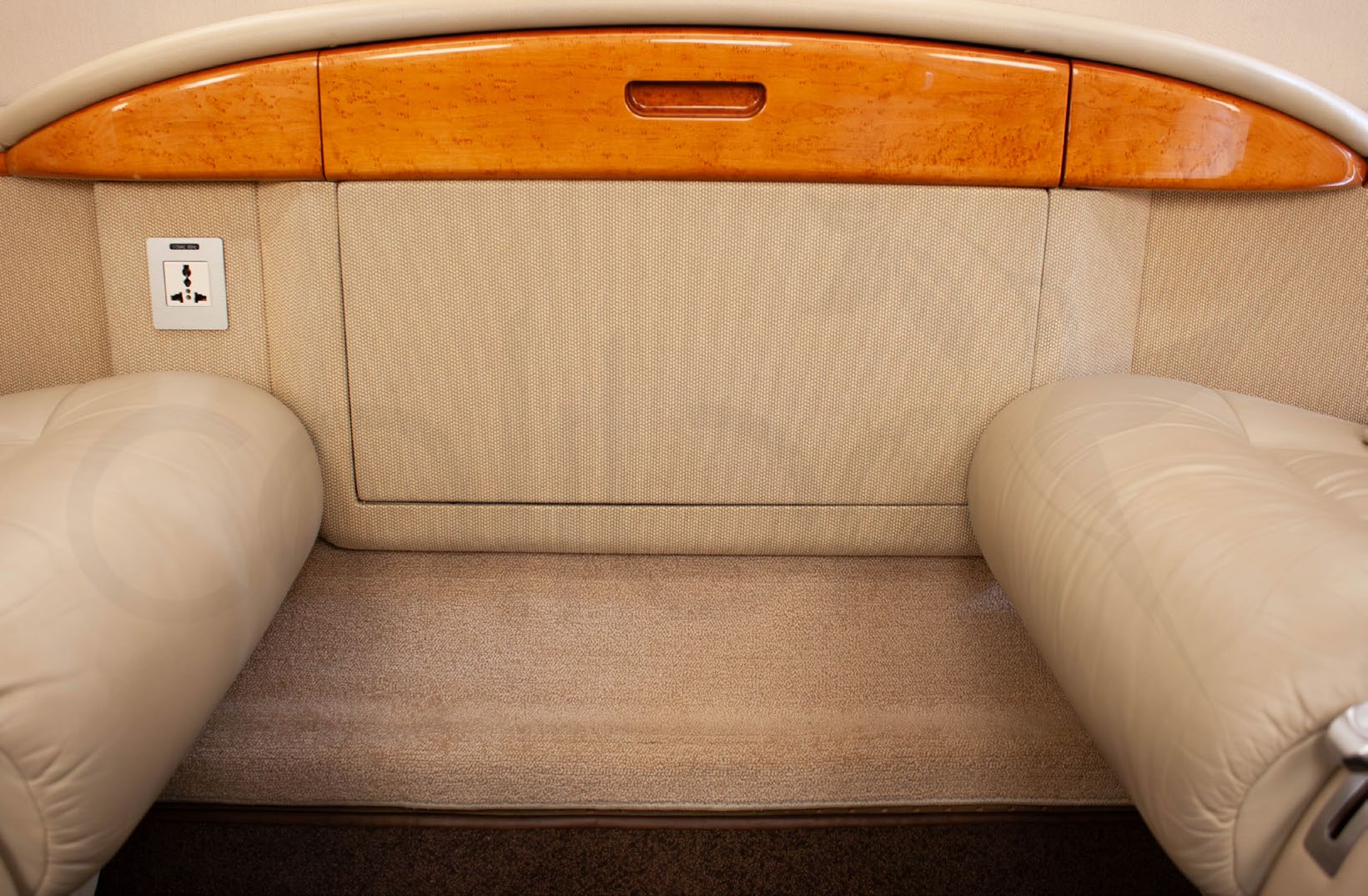

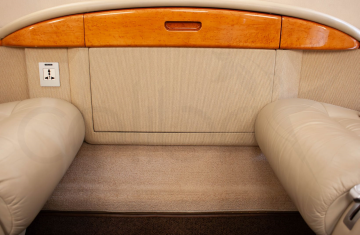

Seating for 8 Passengers Entry: Right-hand side facing seat Galley storage cabinet Mid-Cabin: Four-place club group with pull-out tables Aft Cabin: Two forward-facing VIP chairs Lavatory: Aft cabin separated by hard pocket door Belted Power Outlets: Three outlets (one in cockpit, two in main cabin) configured with multi-interface |
|

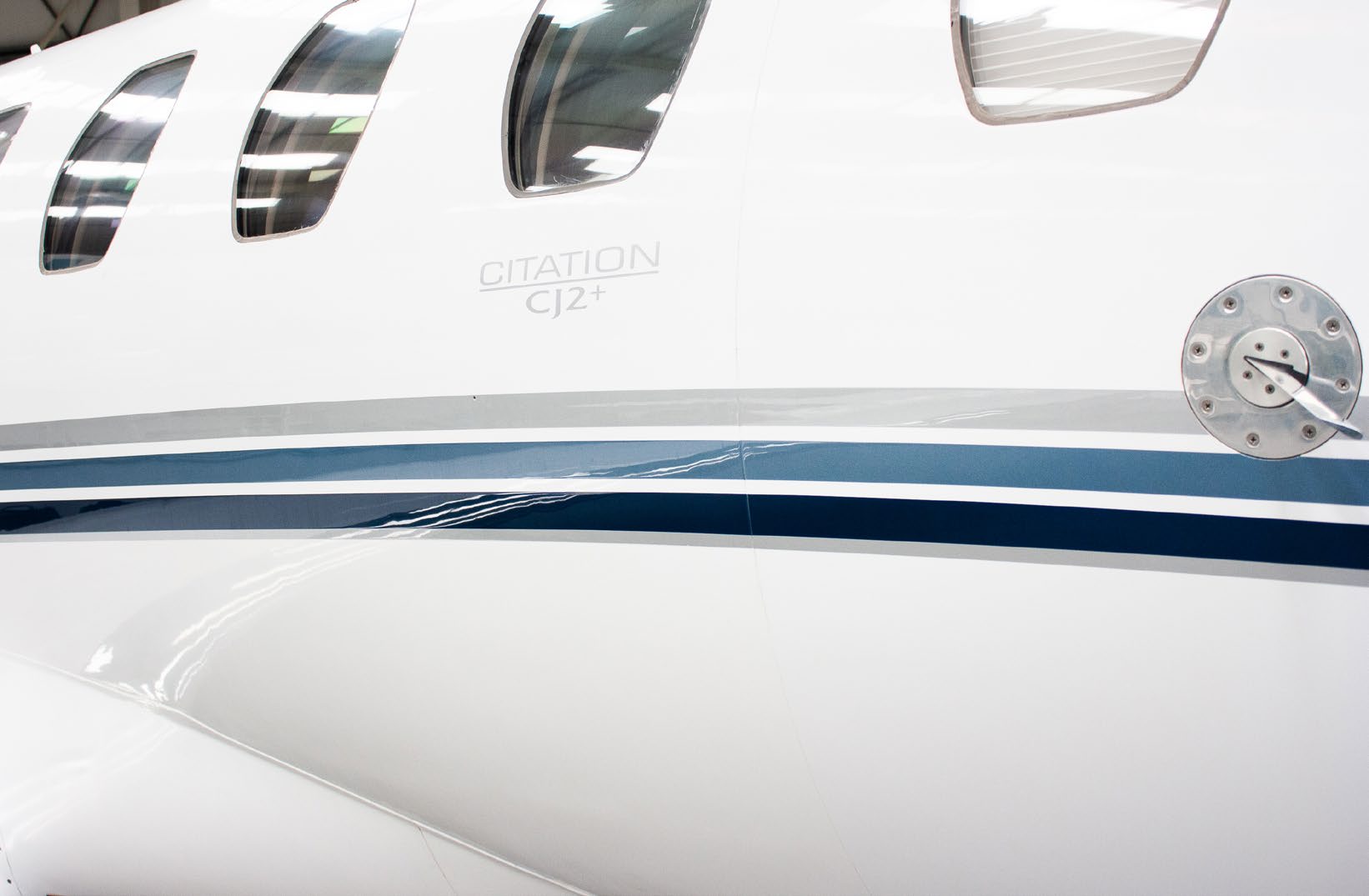

The exterior is painted overall Snow White with Starlight Silver Metallic, Blue Metallic and Ming Blue Metallic. Paint is original from factory. |
|
Other Info | |
Inspection Status: Task Last Completed Next Due ID 1 (300 hrs) August 2023 / 4380 In 208 hrs ID 2 (12 mos) March 2024 / 4460 March 2025 ID 8 (24 mos/300 hrs) Sept 2023 / 4415 Sept 2025 / in 243 hrs ID 10 (36 mos/1200 hrs) March 2024 / 4460 March 2027 / 5660 hrs ID 11 (36 mos/1200 hrs) March 2024 / 4460 March 2027 / 5660 hrs ID 13 (24 mos) March 2024 / 4460 March 2026 ID 21 (24 mos/600 hrs) March 2024 / 4460 March 2026 / 5060 hrs ID 24 (12 mos/300 hrs) March 2024 / 4460 March 2025 / 4760 hrs ID MA (300 hrs) March 2024 / 4460 4760 hrs ID MI (4950 hrs) March 2024 / 4460 9422 hrs ID MJ (5000 hrs) March 2024 / 4460 9472 hrs ID MN (12 mos/330 hrs) March 2024 / 4460 March 2025 / 4790 hrs Engine Overhaul (Check 4 and 6 @ 5000 hrs) July 2021 / 3785 8785 hrs Engine Hot Section 7285 hrs (Check 5) |
|
Brochure: | View Brochure |
