2012 Dassault Falcon 7X
| Overview | |
| 2012 Dassault Falcon 7X, serial number 115. Long-range tri-jet enrolled on ESP Platinum (engines), MSP Gold (APU), and Honeywell MSP Avionics, with maintenance tracked on CAMP. Fourteen-passenger interior new May 2012 and exterior strip and new paint completed August 2019. Hangared at Long Island MacArthur Airport (ISP), Islip, NY. | |
| Price: | Contact Seller |
| Offered By: | Leading Edge Aviation Solutions |
| Registration: | N506BA |
| S/N: | 115 |
| Home Airport: | ISP (Airnav) |
| Location: |
Islip, New York United States
|
| Days Active: | 12 days ago |
| Airframe | |
|
5,831 Hours Total Time 2,488 Landings Date of Construction: August 2010 CofA: May 2012 Entry Into Service: May 2012 |
|
| Total Time: | 5,831 Hours |
| Landing Cycles: | 2,488 |
| Number of Seats: | 14 |
| Pressurized: | Yes |
| Avionics | |
|

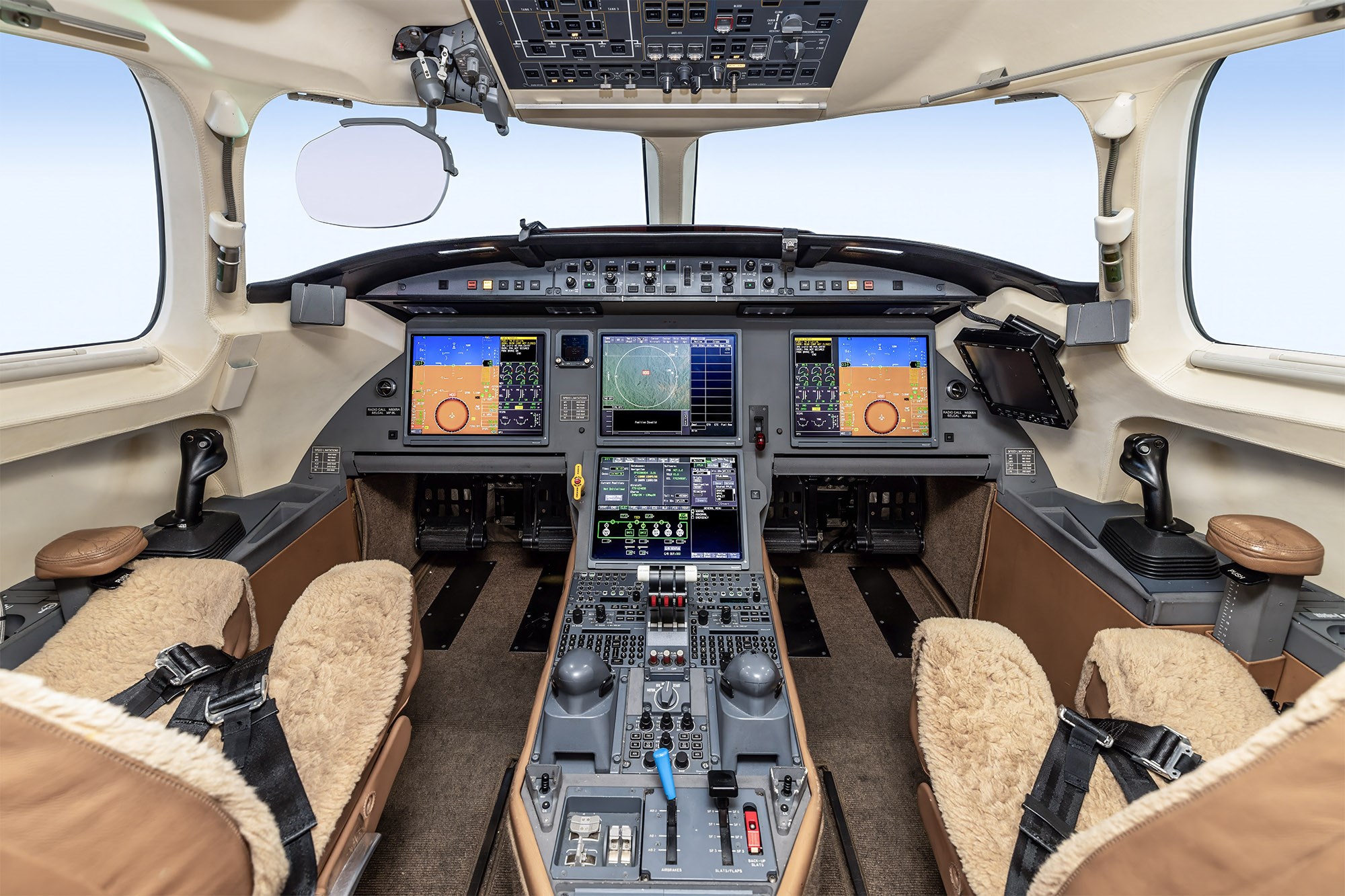

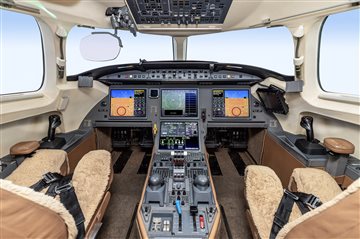

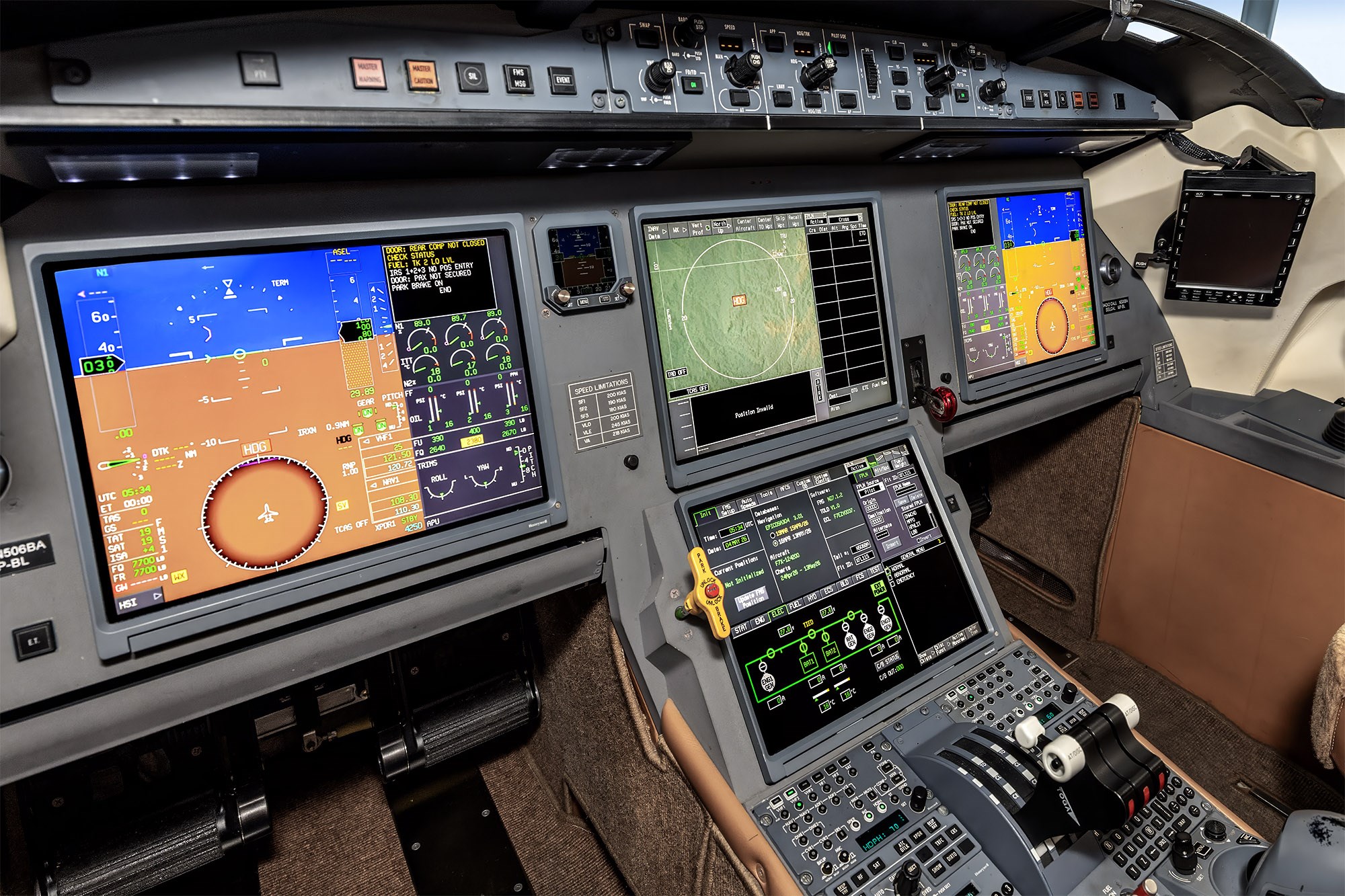

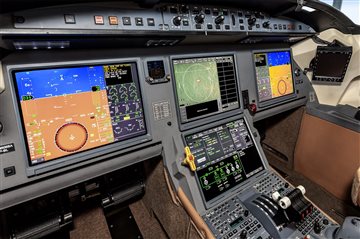

Communications: Dual Honeywell TR-866B w/ 8.33 kHz Spacing Communication: Honeywell TR-866B Third Radio Audio: Triple Honeywell AV-900 Flight Deck Audio Comms Management: Honeywell EASy / AFIS / SATAFIS / MILTOP Flight Deck Printer SATCOM: AFIS / SAT AFIS / MCS-7120 Inmarsat Aero H+ / Swift Broadband (WiFi) VHF Navigation: Dual Honeywell NV-877A VOR / ILS / Marker Receiver ADF: Dual Honeywell DF-855 ADF Receiver Inertial Reference: Triple Honeywell Laseref V Micro Inertial Reference Unit Display Units: 4x Honeywell DU-1310 Display Units Radar: Honeywell Primus 880 Turbulence Detection Radar System Lightning Sensor: Honeywell LSS-860 Lightning Sensor Transponder: Dual Honeywell XS-858A Mode S Diversity w/ Enhanced Surveillance / ADS-B Out / ADS-C DME: Dual Honeywell DM-855 Distance Measuring Equipment Radio Altimeter: Honeywell KRA-405B Radar Altimeter Air Data Computer: Dual Honeywell AZ-200 Air Data Computer AHRS: Dual Honeywell KSG-7200 Attitude Heading Reference System FMS / GPS: Dual Honeywell Flight Management System GPS Sensor: Honeywell GPS Sensor (SBAS Capable) Datalink: Honeywell CPDLC FANS 1/A (Future Air Navigation System) CVR: Honeywell SSCVR Cockpit Voice Recorder (2 Hour) RIPS Compliant FDR: Honeywell SSFDR Flight Data Recorder TCAS: L3 Communications ACSS TCAS 3000 Traffic Alert and Collision Avoidance System (7.1) EGPWS: Honeywell EASy EGPWS-100 Enhanced Ground Proximity Warning System w/ Windshear ELT: Honeywell Rescue 406AF Emergency Locator Transmitter H.U.D.: Honeywell HGS-5860 Heads-Up Display (CAT I & II Monitoring) Telephone: Iridium AirCell Axxess II Phone HF: Dual Honeywell HF-1050 Radios w/ SELCAL |
|
| Additional Equipment | |
|
Honeywell EASy Autothrottle Honeywell Central Maintenance Computer Meggitt MK2 Secondary Flight Display KGS Electronics SB200 230 VAC 50 HZ 2000VA Inverter Avionics Master System Cabin and Galley Masters Main Batteries Charging w/ GPU Mini Load Master System Cabin Temp Monitoring System (2) Vertical Fin Teleflex Recognition Lights CMC CMA-1100 Pilot View Electronic Flight Bags (EFB) Uplink Weather Capability CTS Quick Access Recorder Pratt & Whitney Flight Data Acquisition Storage & Transmission (FAST) Falcon Broadcast Brake/Wheel Well Heat Left Hand (LH) Crew Closet |
|
| Engines | |
|
Engines Enrolled on ESP Platinum Pratt & Whitney PW307A Left (#1): SN PCE-CH0374 - 5,304 Total Hours / 2,223 Total Cycles Center (#2): SN PCE-CH0372 - 5,638 Total Hours / 2,440 Total Cycles Right (#3): SN PCE-CH0371 - Removed for repair; aircraft to be delivered with loaner engine APU: Honeywell GTCP36-150 SN P-229 - 4,272 Hours, Enrolled on MSP Gold |
|
| Engine 1 Hours: | 5,304 SNEW |
| Engine 2 Hours: | 5,638 SNEW |
| Interior & Exterior | |
|

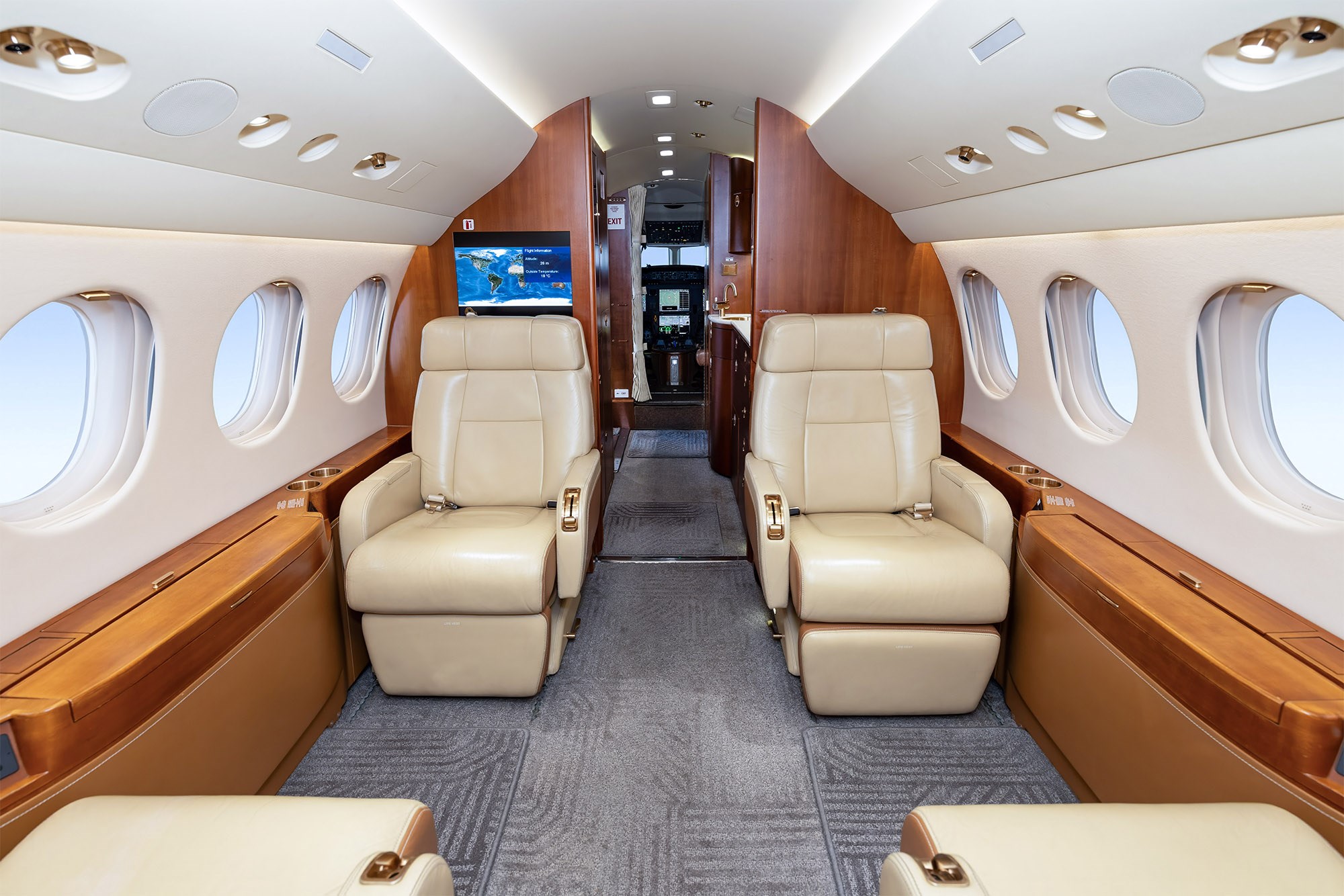

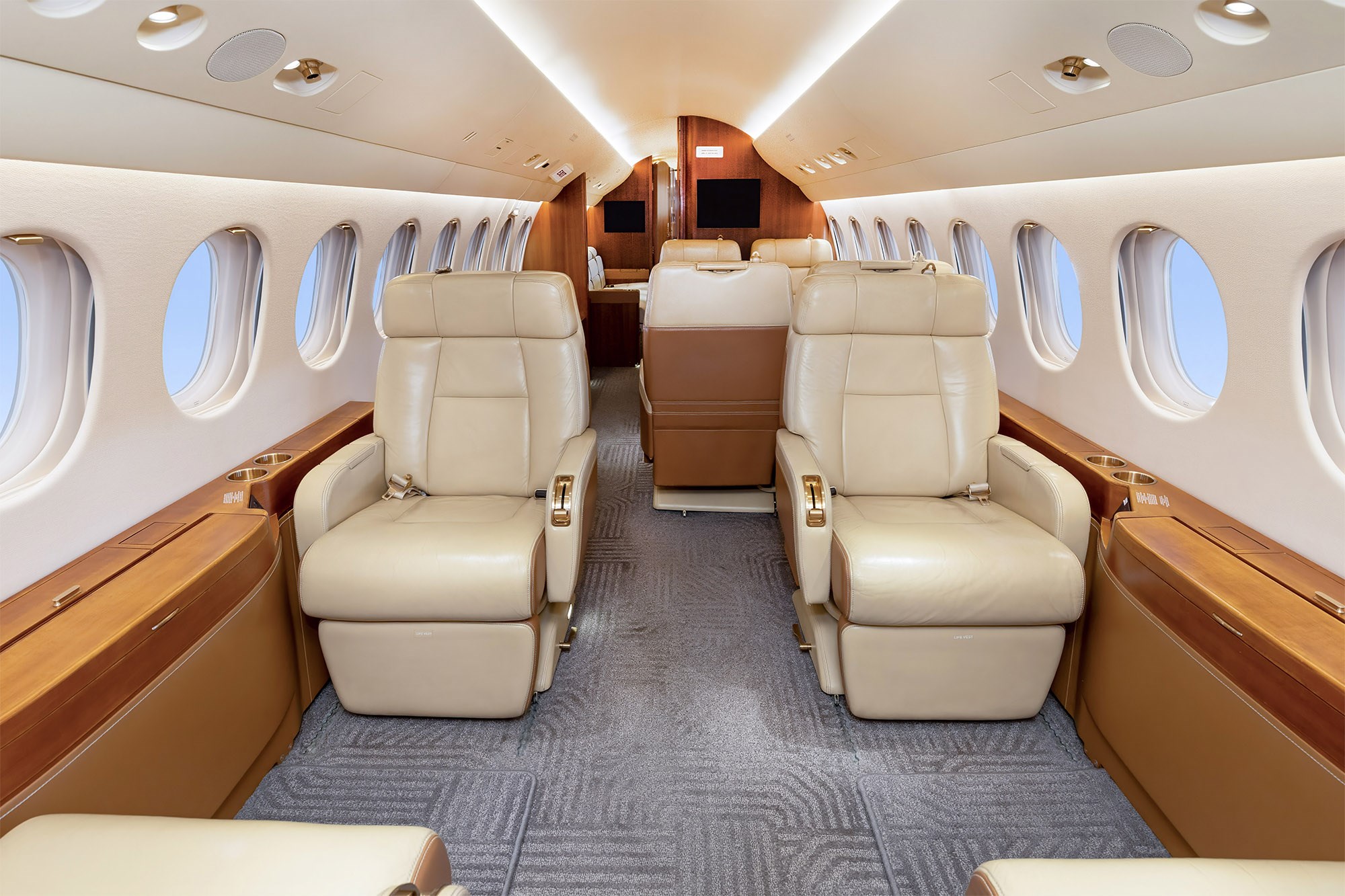

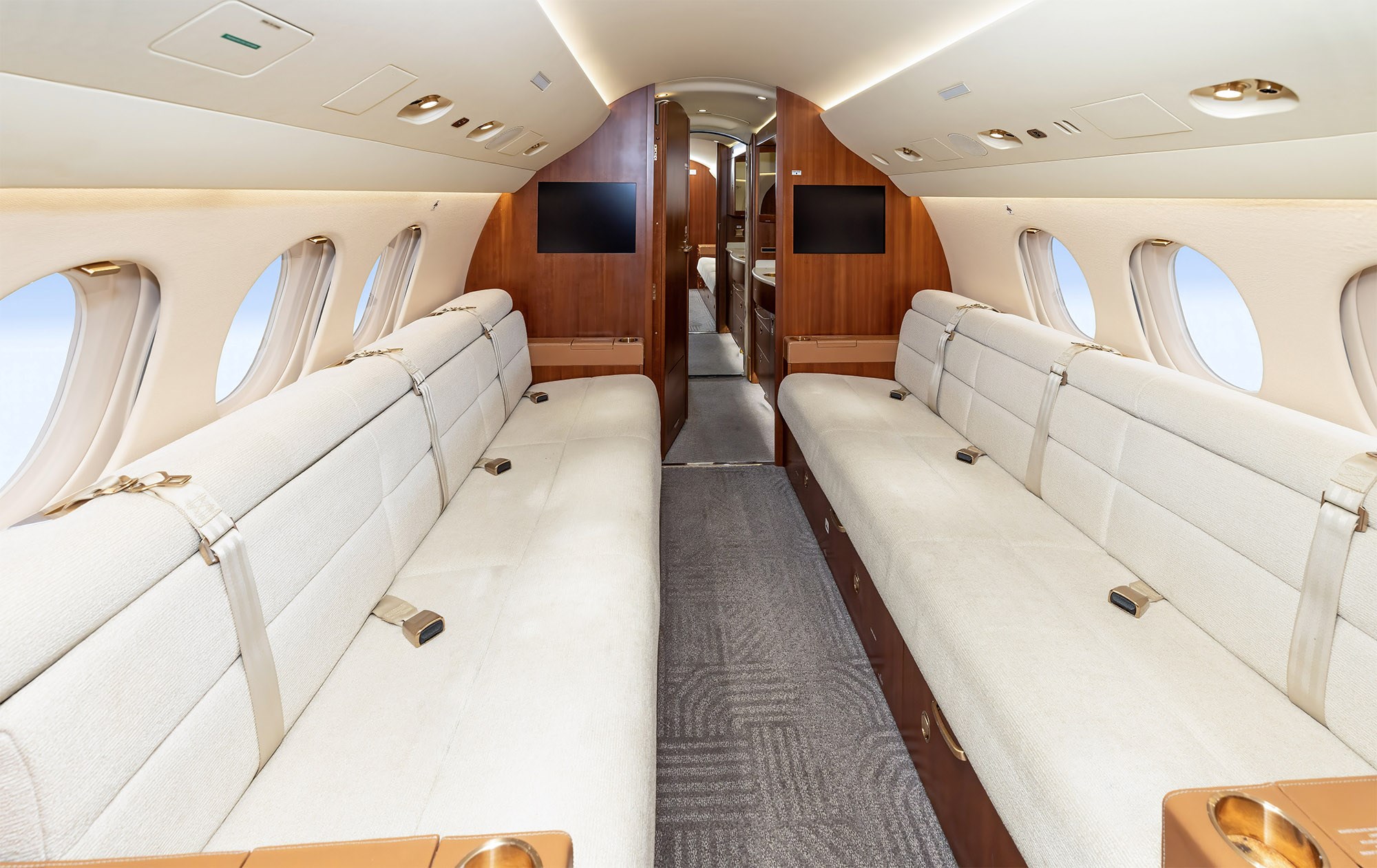

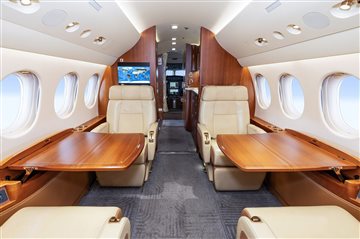

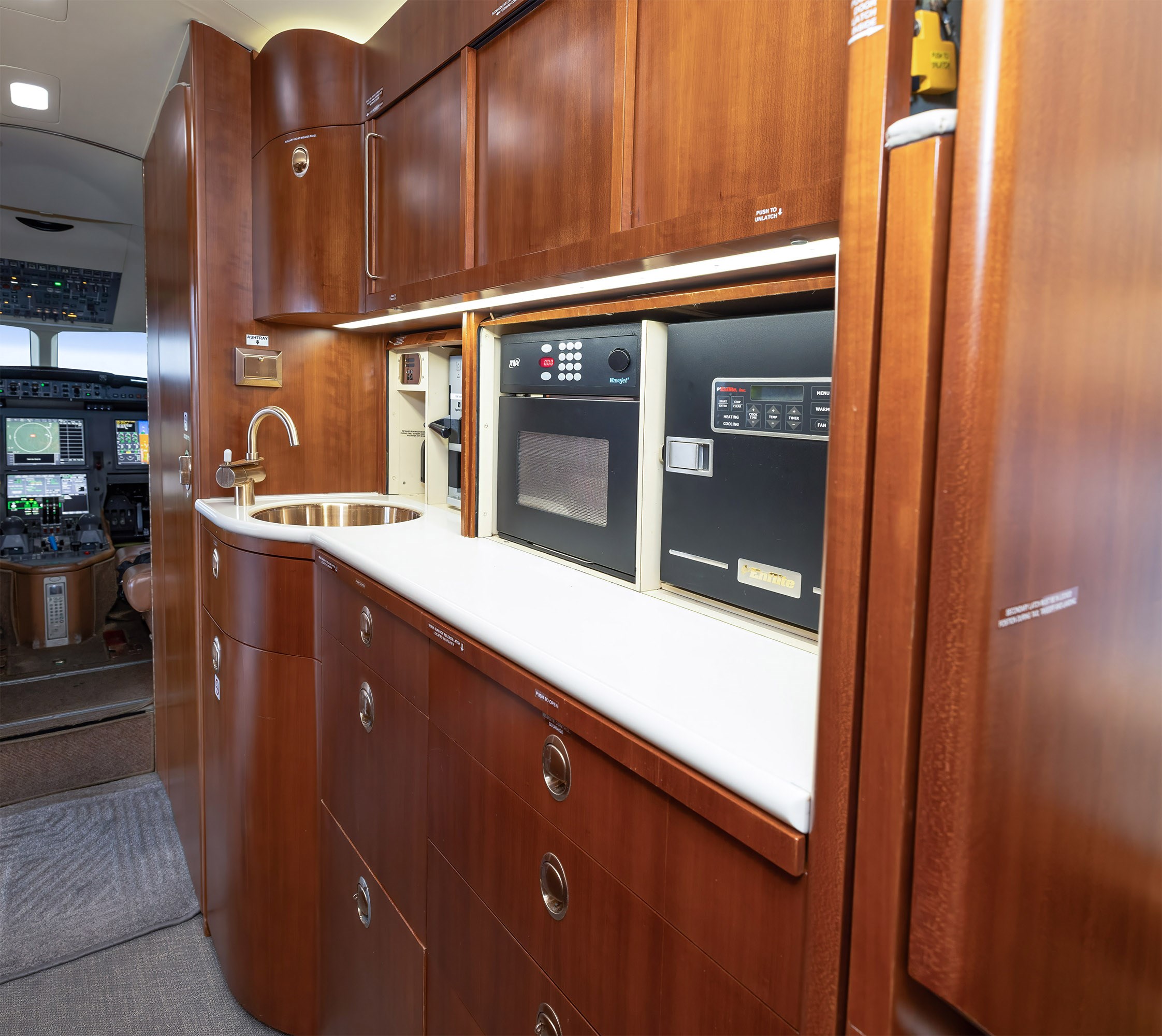

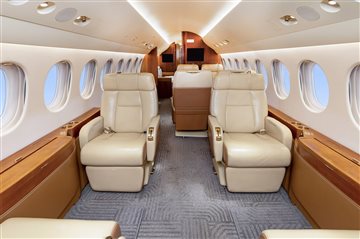

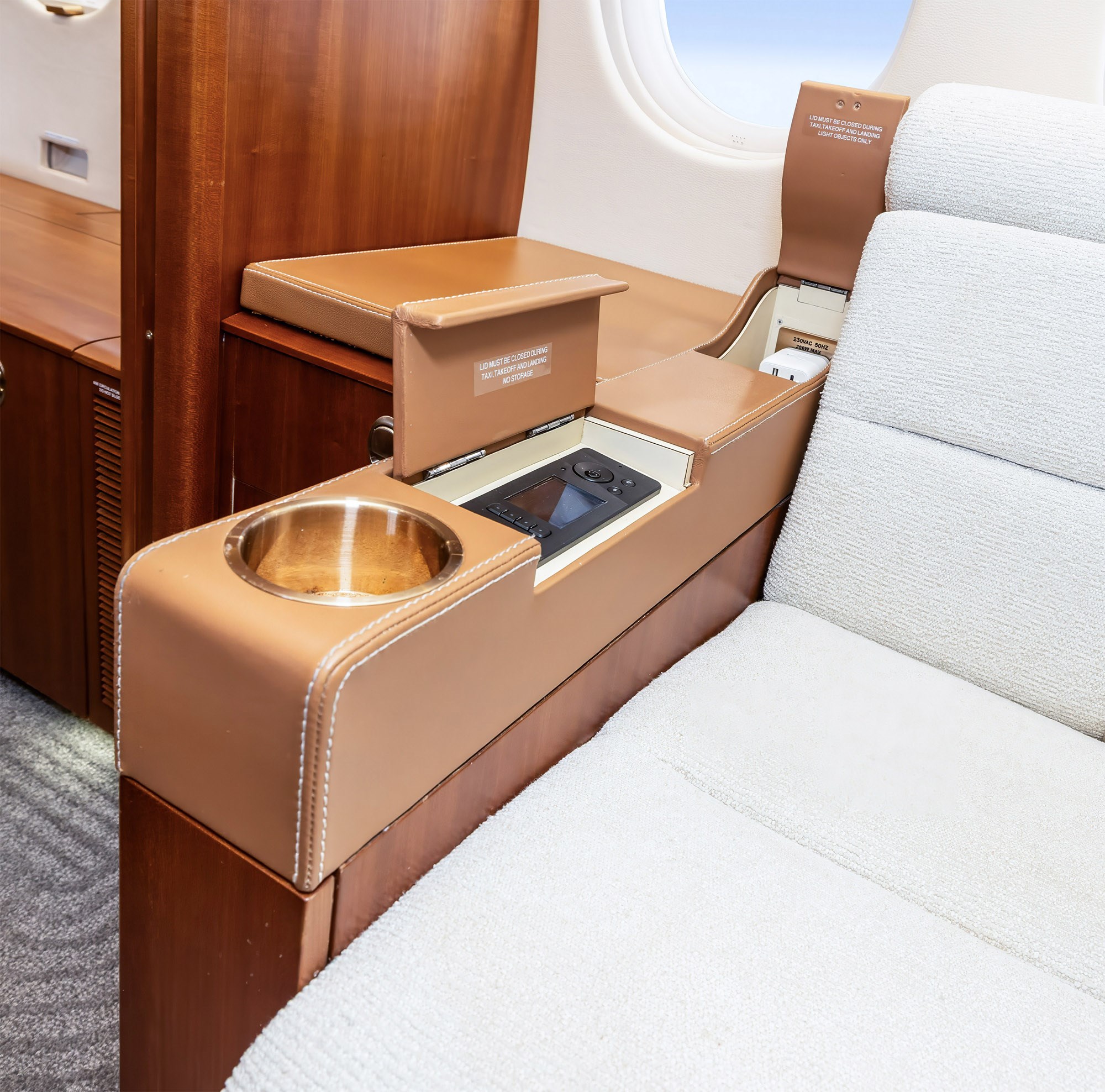

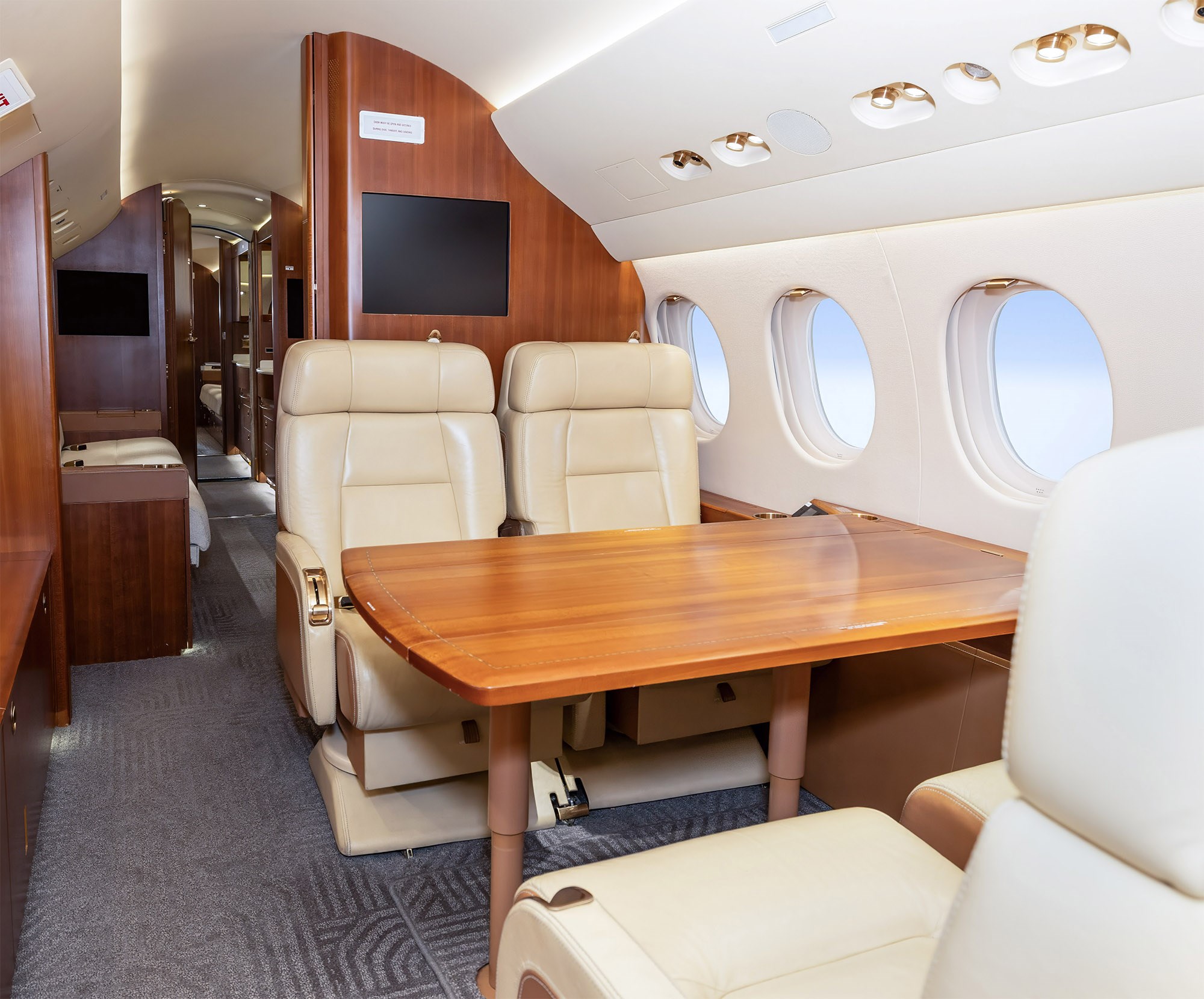

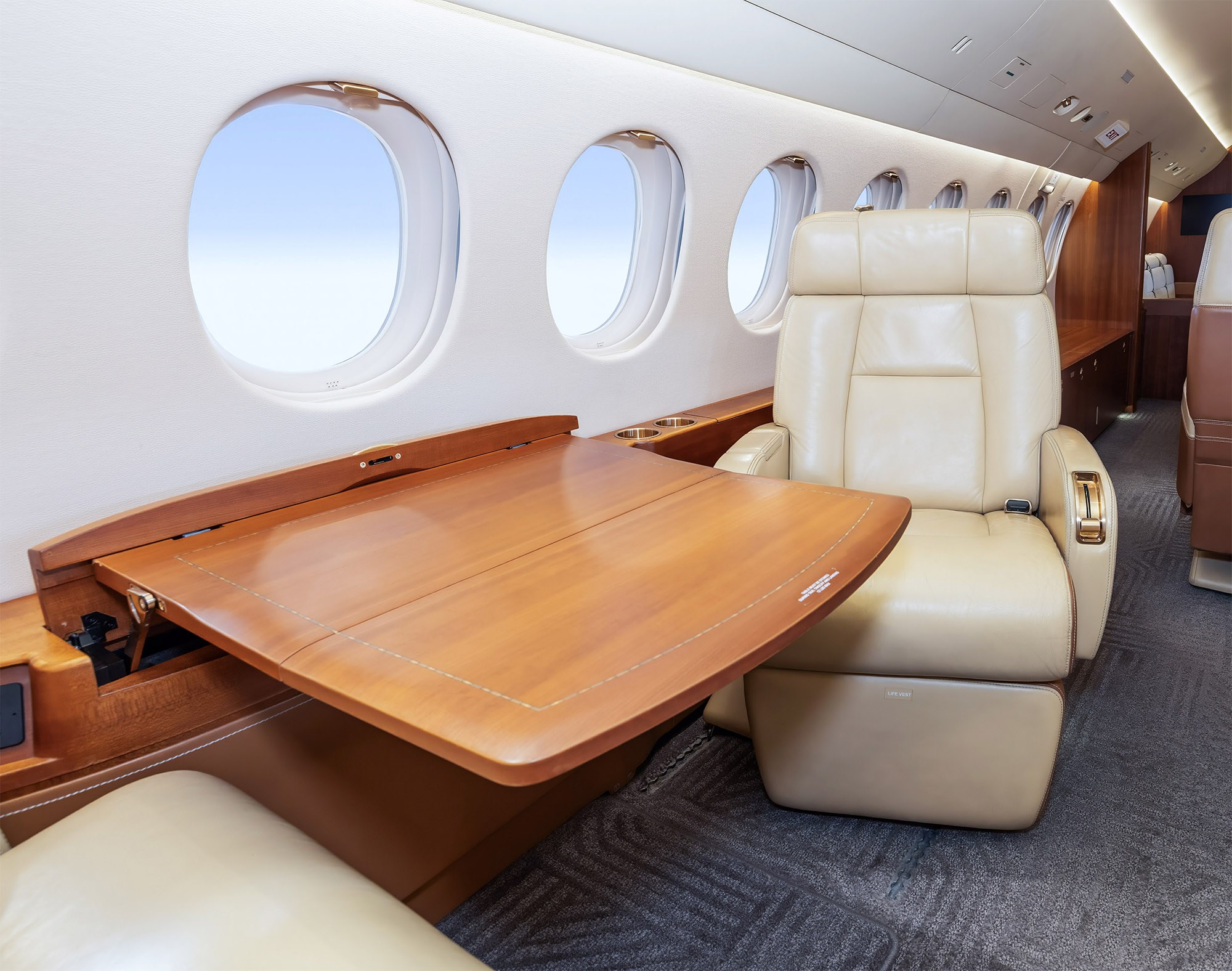

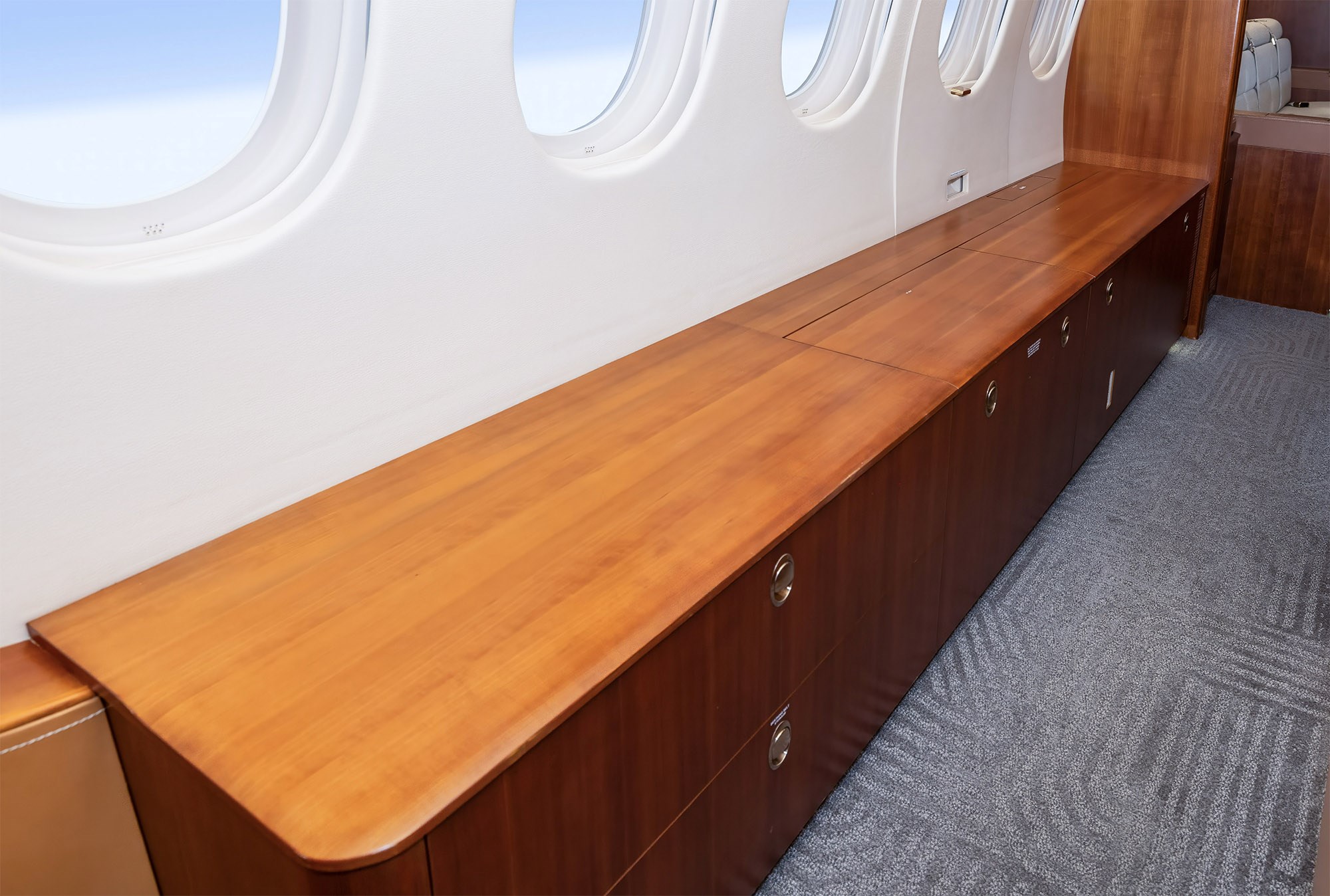

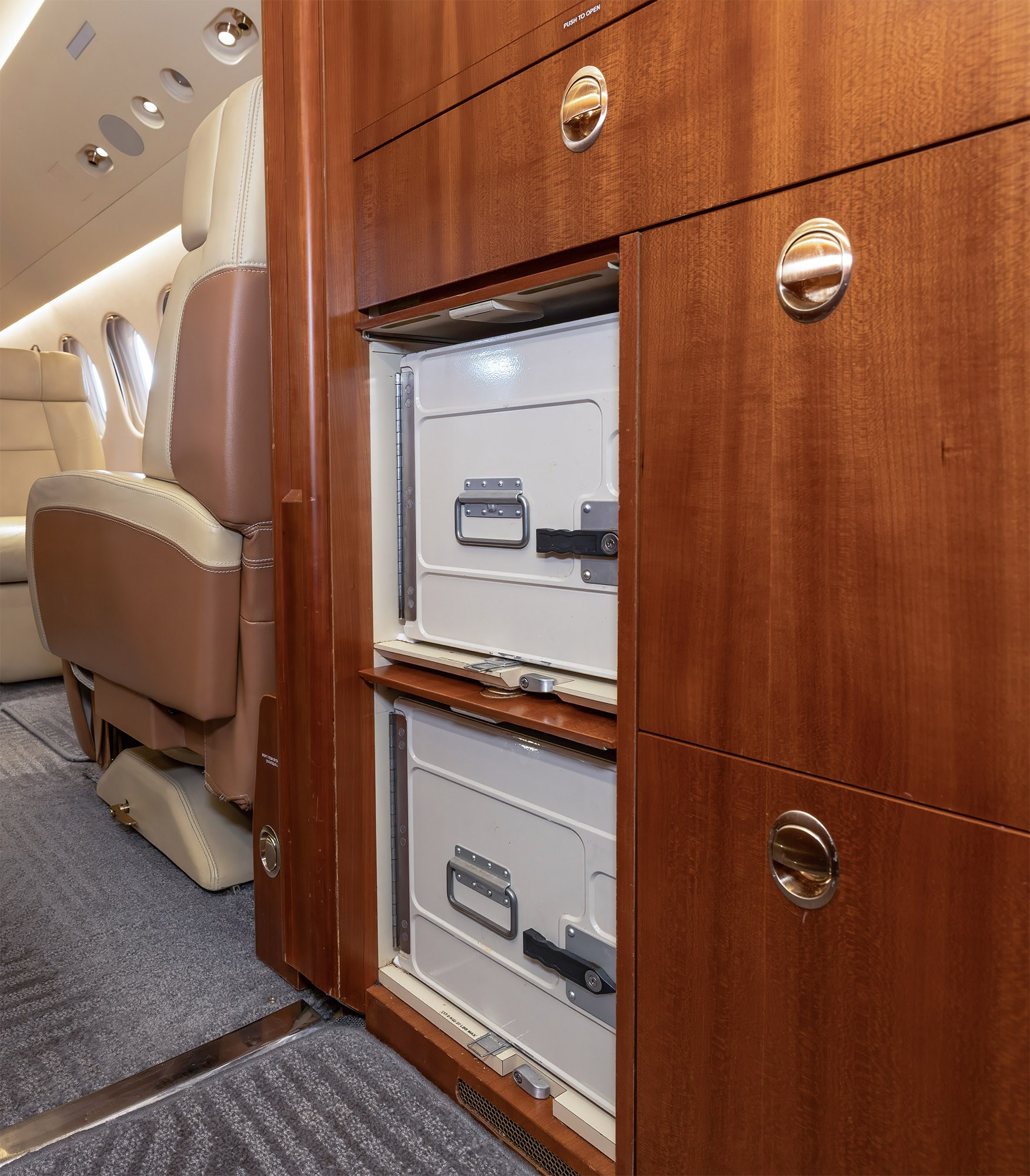

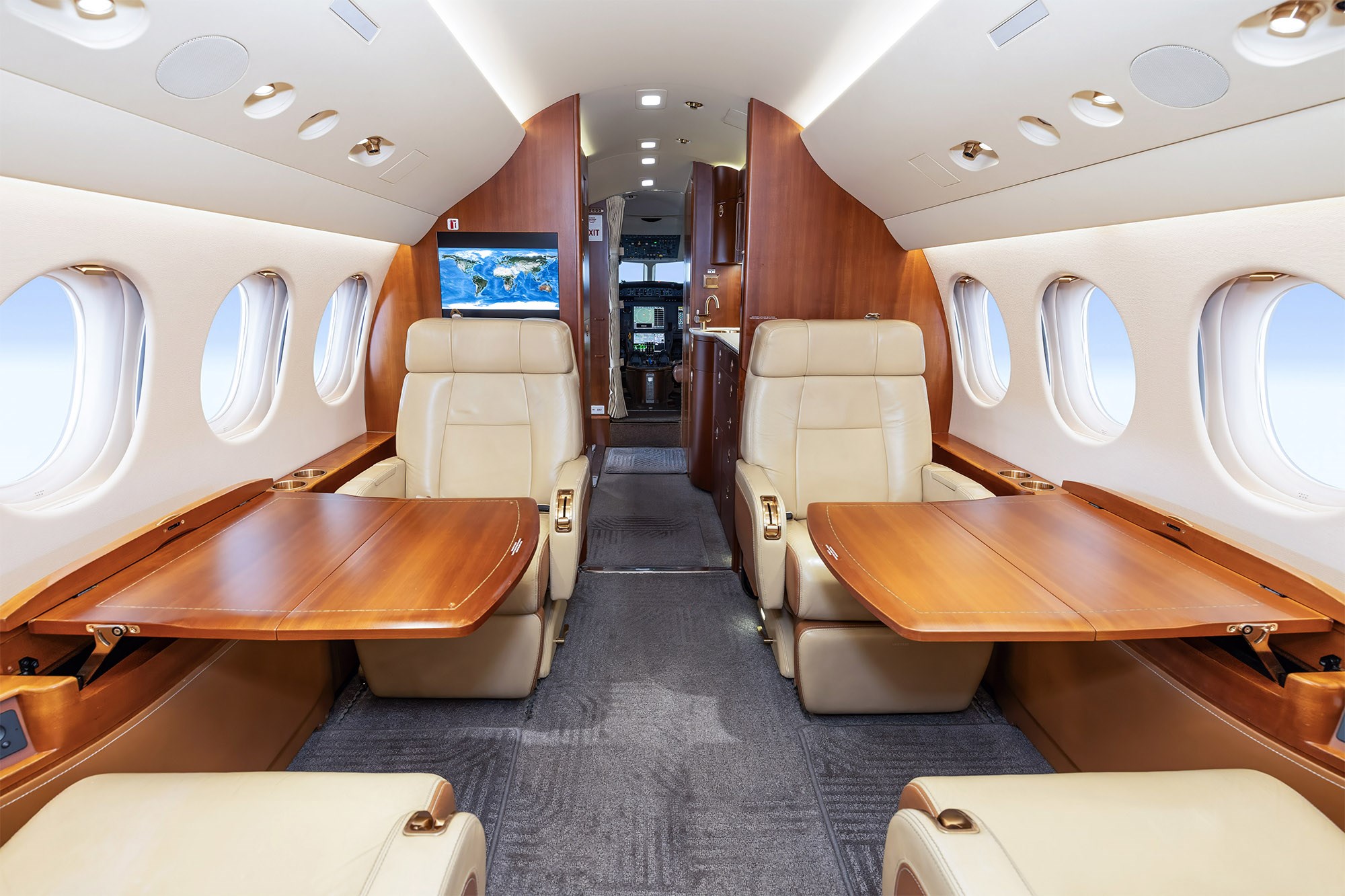

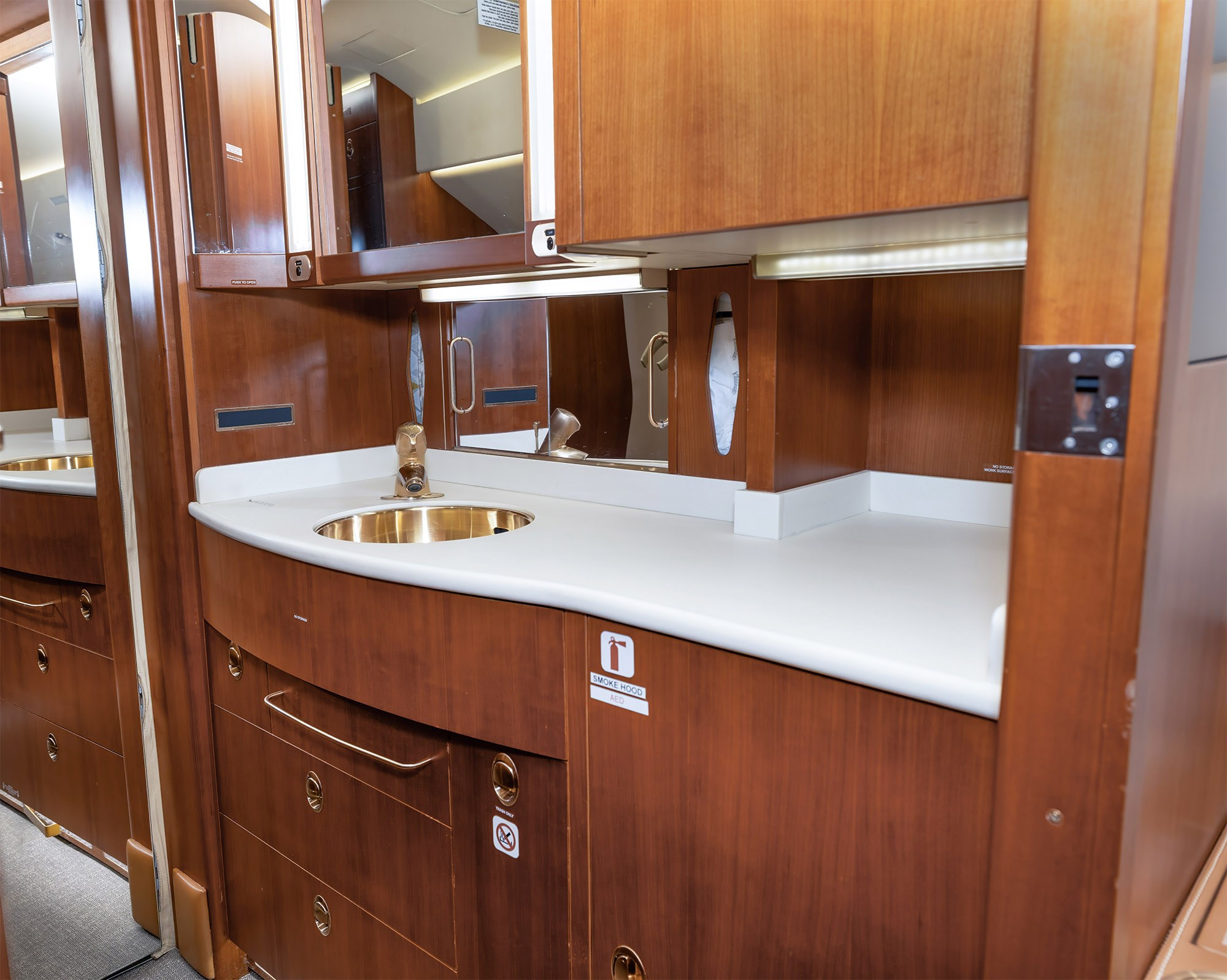

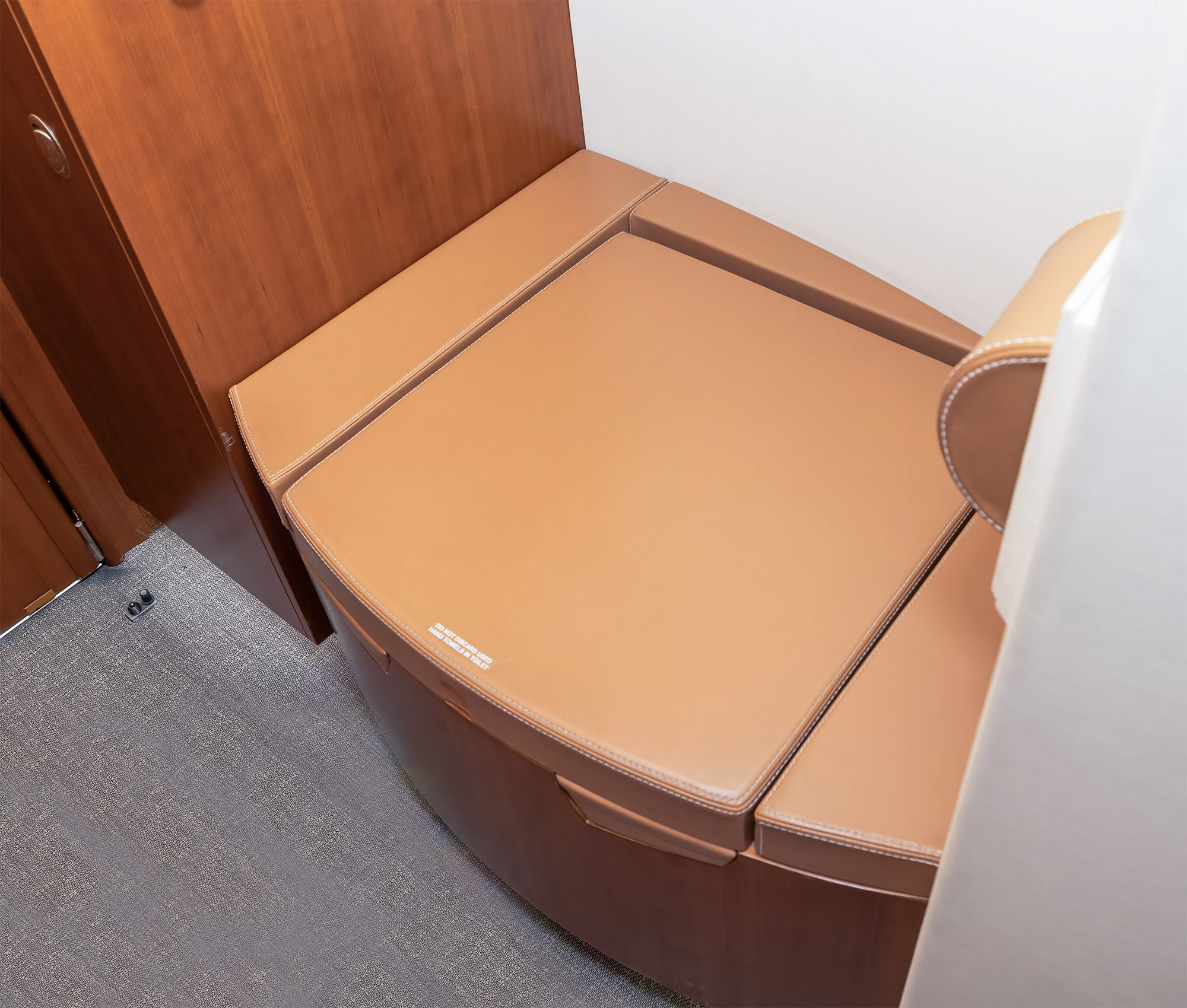

New May 2012 at Dassault, Little Rock, AR Fourteen (14) passenger configuration includes Forward Cabin Double Club, Mid Cabin Conference Group opposite a Multi-Purpose Storage Credenza, followed by Two (2) Three (3) Place Aft Divans. Fully Enclosed Private Aft Passenger Lavatory. Right-Hand 50 Inch Galley/Bar Cabinet, 50 Inch Galley Upper Section with a Single, Extra Wide, High Temperature Oven w/ Digital Controller located on the door, TIA Microwave Oven, Manual Fill Nespresso Machine, Storage Racks, Two Thermal Carafes on a pull-out platform, and Storage for standard Glassware. Lower Section includes a Sink, Faucet w/ Drain Rod, Wine Storage Rack, Trash Drawer. |
|
| Year Interior: | 2012 |
|

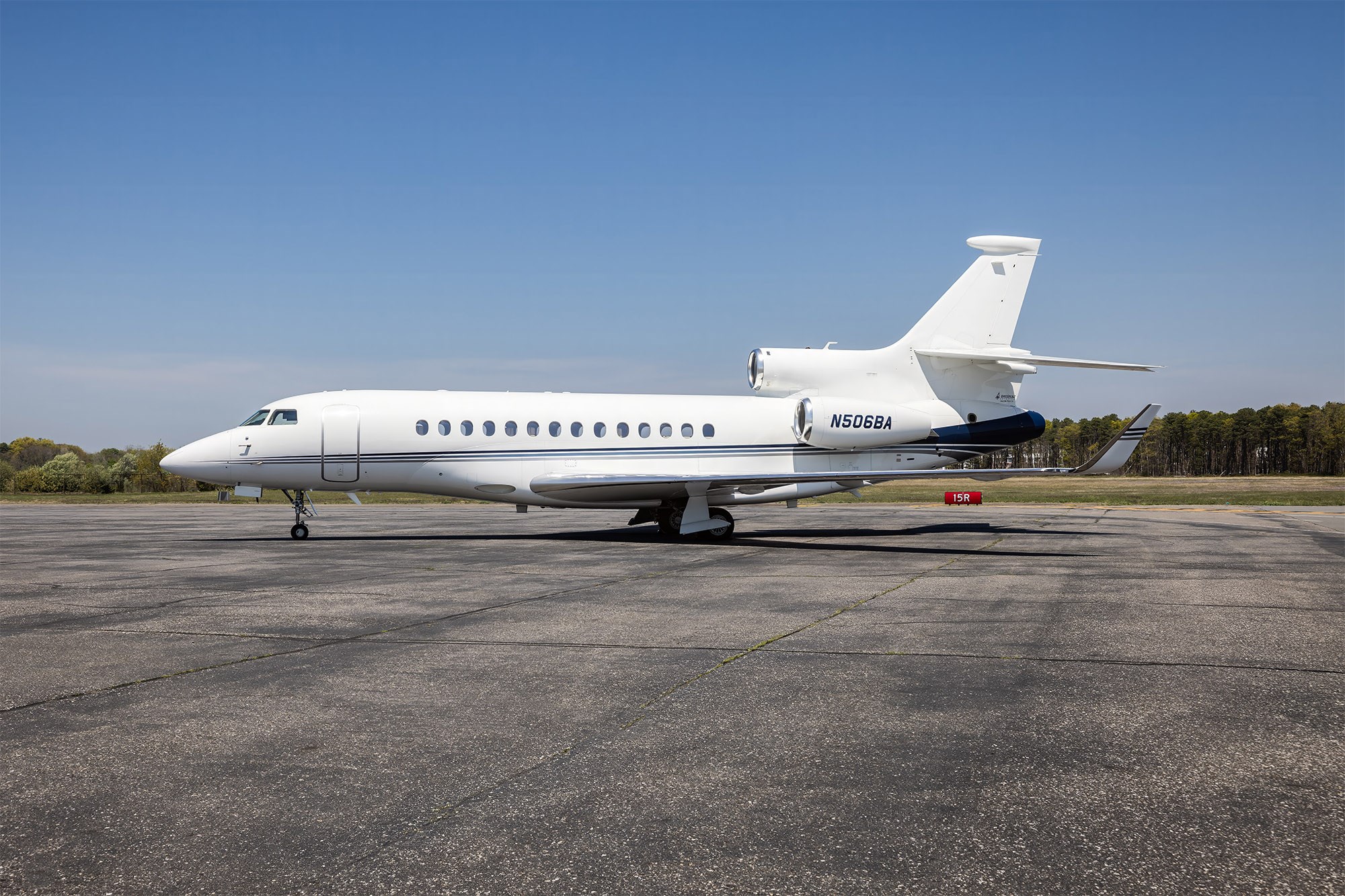

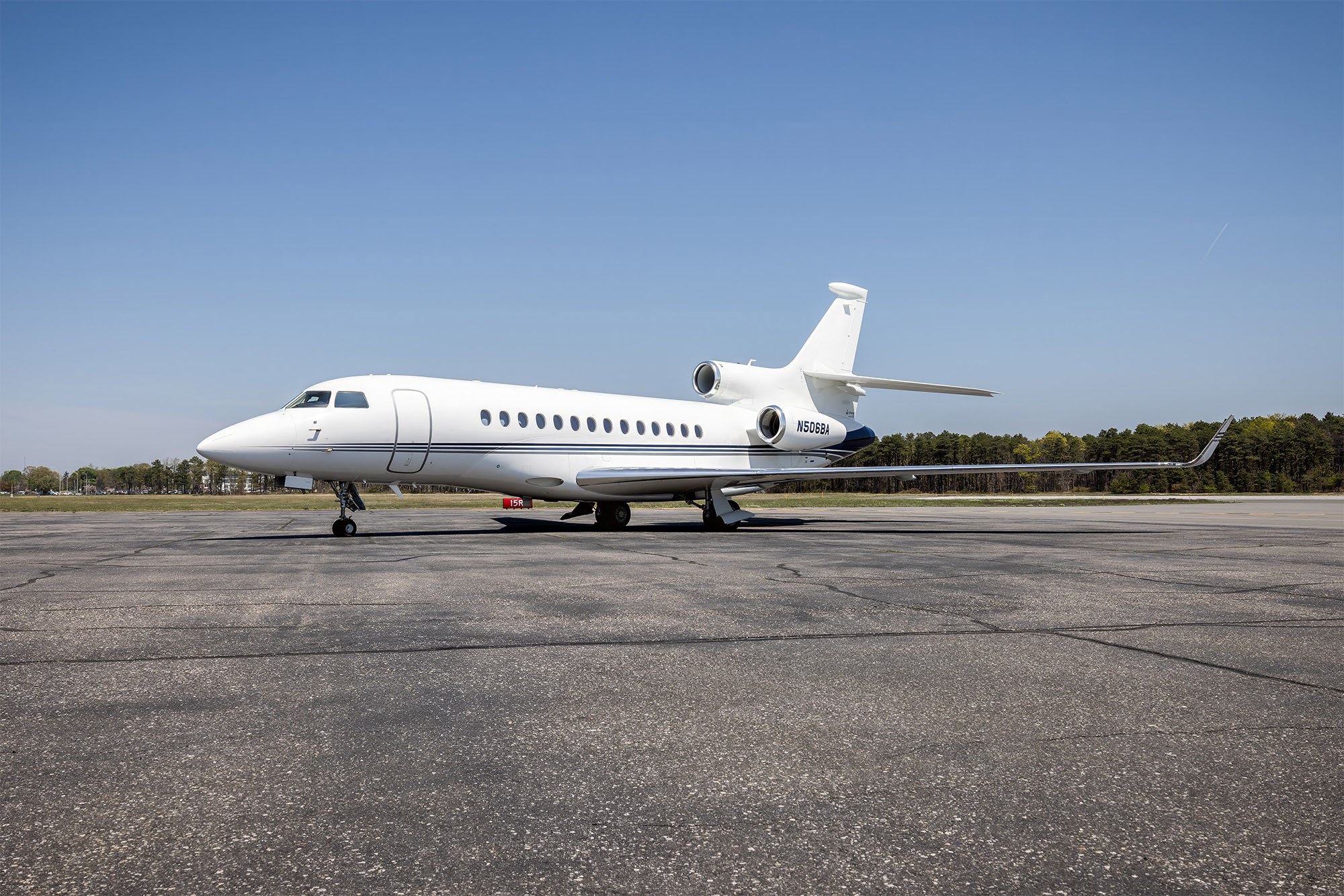

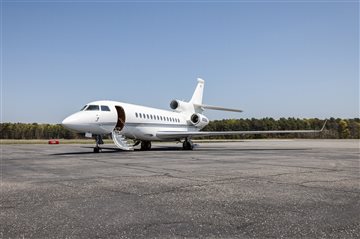

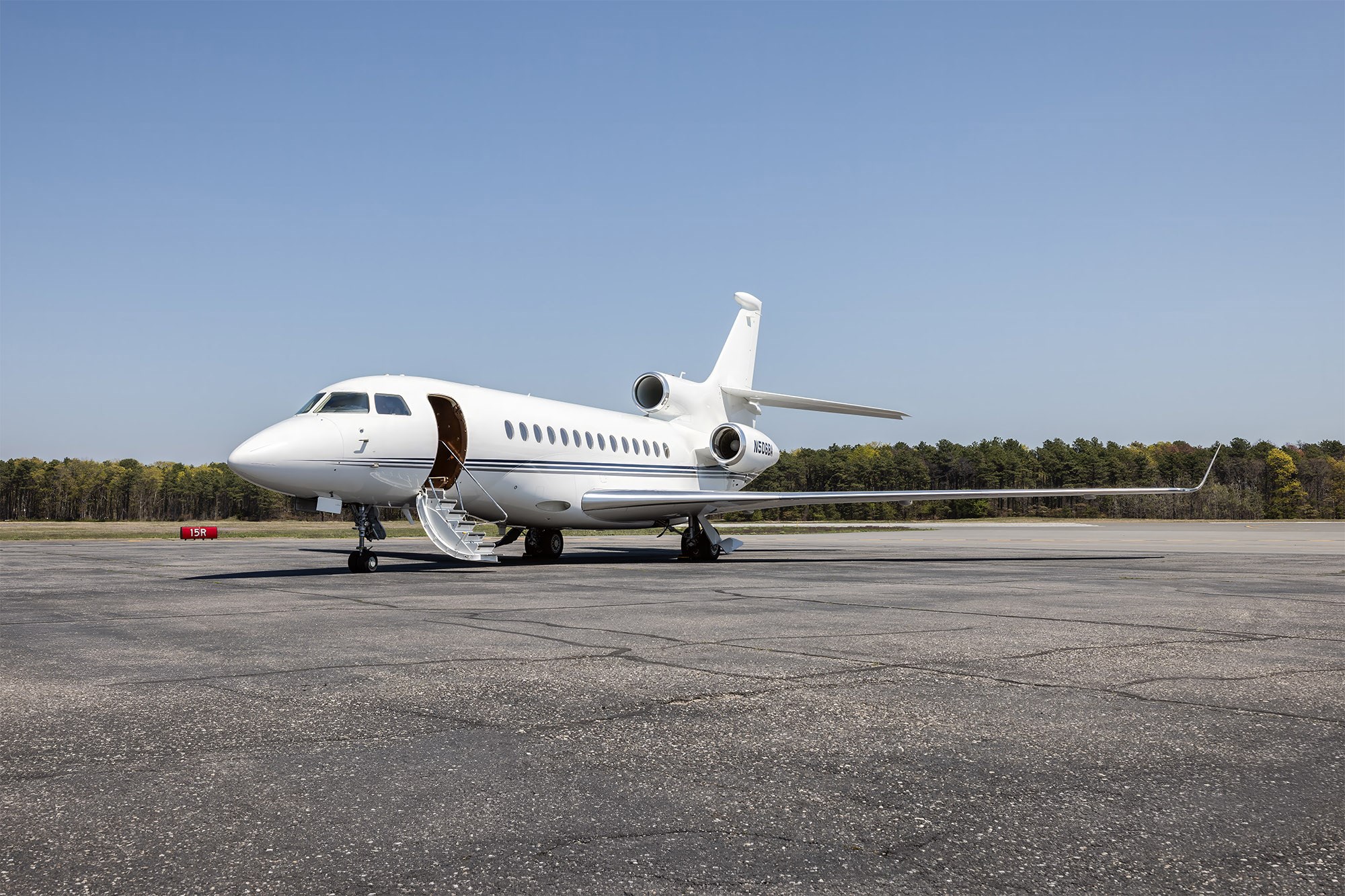

Strip & New Paint August 2019 at Dassault, Wilmington, DE Overall Matterhorn White with Silver Pearl, Arista Blue, and Blue Pearl Accent Stripes. |
|
| Year Painted: | 2019 |
| Other Info | |
|
Inspection Status: Engines Enrolled on ESP Platinum APU Enrolled on MSP Gold Enrolled on Honeywell MSP Avionics Maintenance Tracked on CAMP 1C Inspection: Last Completed 08/2019 - Next Due 08/2027 2C & Landing Gear Overhaul: Last Completed N/A - Next Due 05/2027 3C Inspection: Last Completed N/A - Next Due 05/2035 |
|
