| Overview | |
| Listing Status: | Inactive |
| Price: | N/A |
| Offered By: | Bombardier Pre-owned Aircraft |
| S/N: | 6162 |
| Location: |
United States
|
| Airframe | |
|
Maintenance Tracking: CAMP Aircraft enrolled on Smart Parts Preferred Gross Weight (Ramp): 48,300 lbs Max Take Off Weight: 48,200 lbs. Max Landing Weight: 38,000 lbs Max Zero Fuel Weight: 32,000 lbs Empty Weight: 26,744 lbs. |
|
| Total Time: | 1,087.3 Hours |
| Landing Cycles: | 634 |
| Avionics | |
|

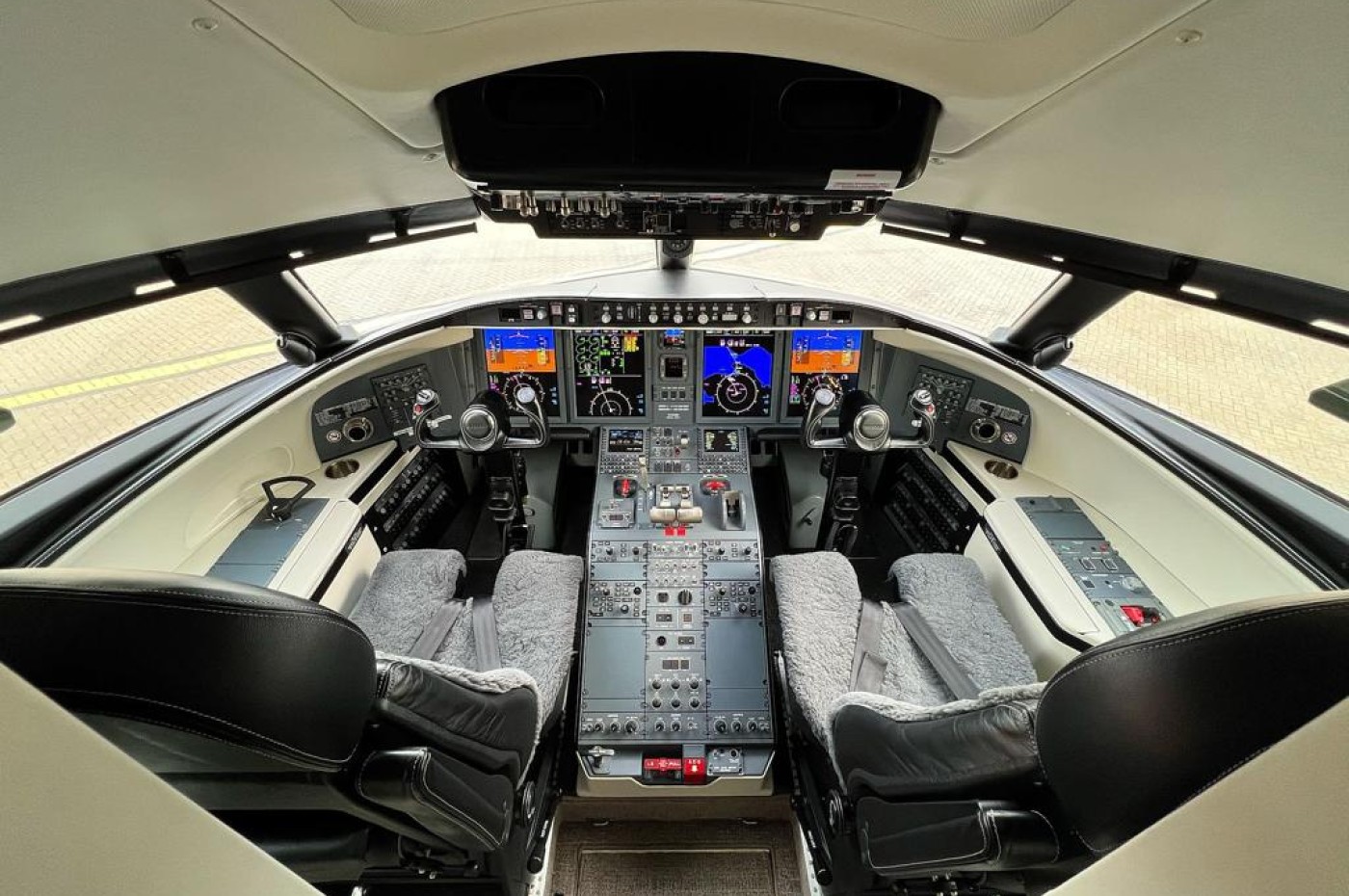

COLLINS PRO LINE 21 ADVANCED SYSTEM INCLUDES: Four AFD-5220E Adaptive Flight Displays Dual ADC-850E Air Data Computers Dual Honeywell IRU Laser Ref VI Dual DCU-4002 Data Concentration Units Engine Instrument/Crew Alerting System (EICAS) RTA-4114 Multiscan Weather Radar Dual FMC-6200 Flight Management System Dual GPS-4000S WAAS GPS Dual NAV-4000 Nav Units w/ FM Immunity Dual VHF-4000 Comm System w/ 8.33 KHz spacing Third VHF-4000 Comm w/ Datalink Interface Dual DME-4000 DME Collins TSS-4100 Transponder/TCAS II w/ Change 7.1 Collins TDR-94D Mode S ATC Transponder with ADS-B Out Collins ALT-4000 Radio Altimeter Dual HF-9031A HF w/SELCAL Honeywell MkV-A EGPWS DBU-5010E Database Loader Single File Server |
|
| Additional Equipment | |
|
RVSM, PRNAV, MNPS, RNP 1/2/4/10 Capable FANS 1/A+ (CPDLC and ADS-C) Universal Graphical Weather on MFD Synthetic Vision L3 Communications FA2100 120 Minute Cockpit Voice Recorder FANS Compliant L3 Communication FA2100 25 Hour Flight Data Recorder complies with EASA Air Ops AMC1.1 CAT.IDE.A.190 Artex C406-N MHz ELT Datalink System upgraded to meet Eurocontrol’s Link 2000+ Requirement NiceView Passenger Information System SAT-2200 Inmarsat Satellite SBB System Aspire 100 Iridium Phone Satcom Direct Router Fwd and Aft 24” Bulkhead Mounted Monitors Dual Blu-Ray/DVD/CD Player USB and HDMI Entertainment Ports iPod Docking Station Coffee Maker Espresso Maker Large Capacity Convection Oven Microwave Oven 115 VAC outlets in Cabin, Galley and Lavatory Additional 40 cf Oxygen Bottle |
|
| Engines | |
|
LEFT ENGINE: General Electric CF34-3B Serial Number: 801627 Cycles: 594 Overhaul due: On Condition RIGHT ENGINE: General Electric CF34-3B Serial Number: 801629 Cycles: 588 Overhaul due: On Condition Engines are enrolled on GE OnPoint |
|
| Engine 1 Hours: | 1,009.8 SNEW |
| Engine 2 Hours: | 1,009.8 SNEW |
| Interior & Exterior | |
| Bombardier Completion Centre, Montreal, Fire blocked, (FAA, TCCA and EASA STC) Eleven (11) place executive interior configuration. Jump seat for crew use only. Cabin features four (4) executive club seats with two (2) fold-out tables and a full berthing, three (3) place divan. Opposite the divan is a four (4) place conference group. Forward galley and standard lavatory located aft of the main cabin. | |
| Year Interior: | 2021 |

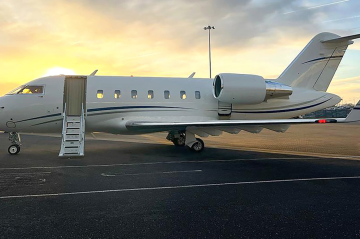

| Overall Matterhorn White with Axis Blue and Platinum accent stripes on fuselage, tail with winglets. | |
| Year Painted: | 2021 |
| Other Info | |
